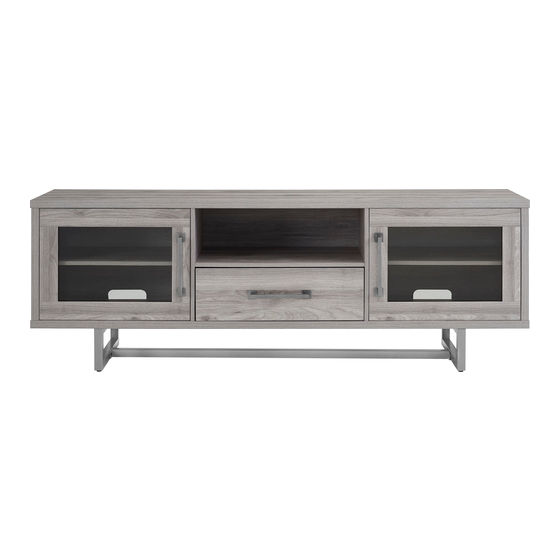

Console for tvs up to 80''
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

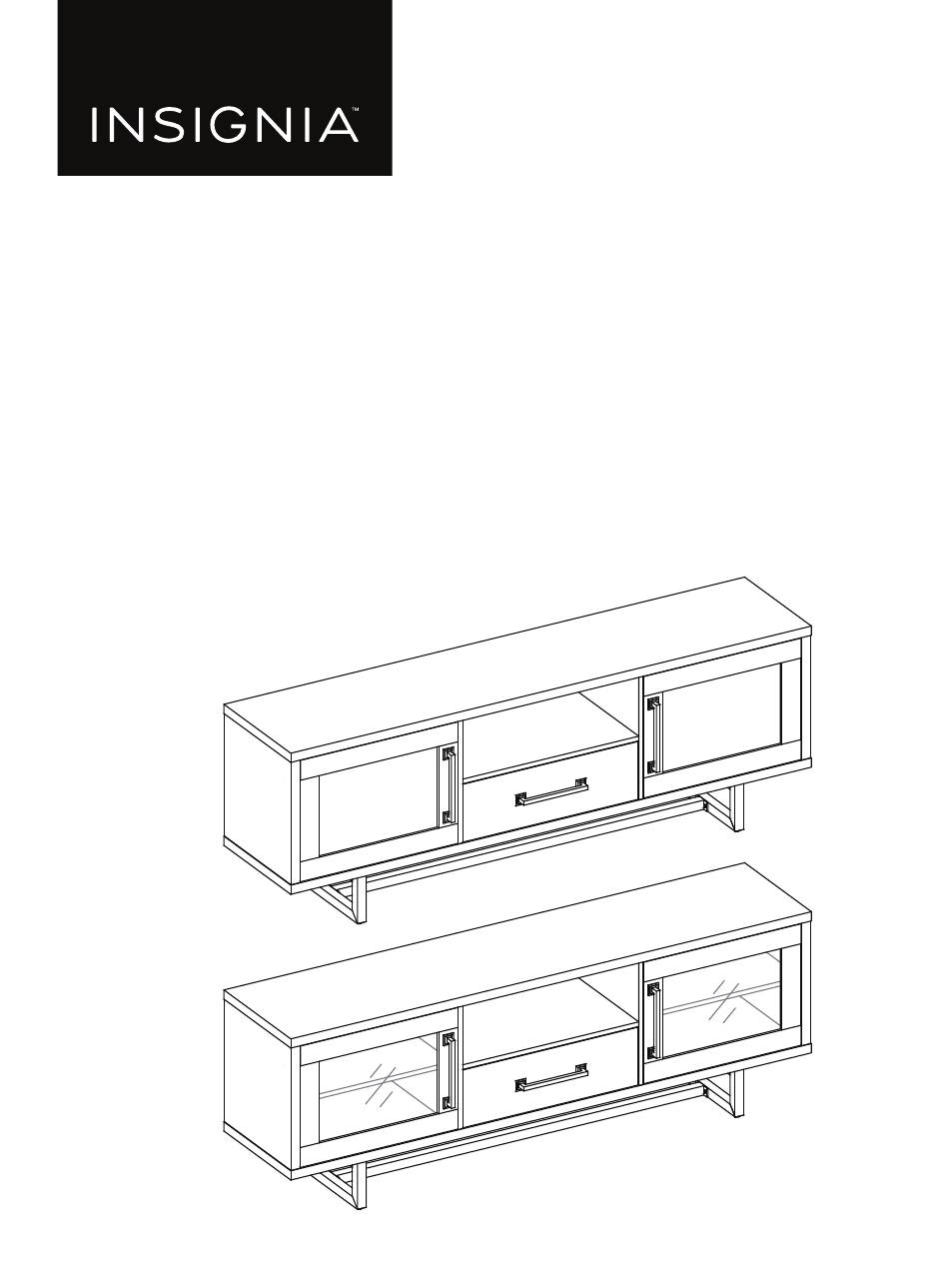

ASSEMBLY GUIDE
Console for TVs
up to 80"
NS-HFMS80
Before using your new product, please read these instructions to prevent any damage.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NS-HFMS80 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Insignia NS-HFMS80

Summary of Contents for Insignia NS-HFMS80

  • Page 1 ASSEMBLY GUIDE Console for TVs up to 80” NS-HFMS80 Before using your new product, please read these instructions to prevent any damage.

  • Page 2: Table Of Contents

    Contents IMPORTANT SAFEGUARDS ................3 Features .

  • Page 3: Important Safeguards

    Console for TVs up to 80” IMPORTANT SAFEGUARDS WARNING Some steps are more easily handled with two adults. CAUTION The top surface of this stand is designed for use with a product weighing no more than 135 lbs. (61.2 kg) and having a width that permits it to sit evenly on the stand with no more than a one-inch overhang on each side of the shelf.

  • Page 4: Features

    Features • Interchangeable door fronts customize your stand’s look with either glass or wood insert panels • Sturdy frame supports most flat screen TVs up to 80 in. (203.2 cm) and 135 lbs (61.2 kg) • Shelving adds space for cable boxes, Blu-ray players, game consoles, and more •...

  • Page 5: Package Contents

    Console for TVs up to 80” Package contents Make sure that you have all the parts necessary to assemble your new TV stand. Parts A Top panel (1) B Bottom panel (1) C Left side panel (1) Note: Keep the stopper template attached to the top panel D Right side panel (1) E Left partition panel (1)

  • Page 6: Hardware

    Hardware LABEL STAND PART QTY. LABEL STAND PART QTY. Handle Wood dowel M8 x 30 mm Handle bolt Cam pin Bolt 1/4” x 5/8” Large cam lock Wood dowel M6 x 30 mm Bolt 1/4” x 1-1/4” Lock washer Small cam lock Flat washer Flat head screw M4 x 38 mm Washer head screw M3.5 x 15 mm...

  • Page 7: Tools Needed

    Console for TVs up to 80” Tools needed Phillips screwdriver Pliers Rubber mallet Hammer 1/8” drill bit Power drill Installation tips Gluing wood dowels (U and X) When using a wood dowel (U and X), put one drop of glue (SS) in the hole before you insert the wood dowel (U and X). Insert the wood dowel (U and X), then gently tap it with a rubber mallet to secure it in place.

  • Page 8: Assembling Your Stand

    Assembling your stand Tip: Assemble your stand on a carpeted floor or the empty TV stand box to avoid scratching it. Note: Do not fully tighten all bolts until you finish assembling all of the parts. After assembly, go back and fully tighten all bolts.
  • Page 9 Console for TVs up to 80” STEP 2: Install the small wood dowls You need: SS Glue (1) X Wood dowel (8) P Drawer right N Drawer left side M Drawer back panel (1) side panel (1) panel (1) • Glue eight small wood dowels (X) into the drilled holes on the ends of the drawer back panel (M) and drawer side panels (N and P).
  • Page 10 STEP 3: Assembly the drawer back panel and the drawer side panels You need: Phillips screwdriver Z 38 mm screws (4) N Drawer left side P Drawer right M Drawer back panel (1) side panel (1) panel (1) • Attach the drawer back panel (M) between the drawer side panels (N and P) with four 38 mm screws, using a Phillips screwdriver.
  • Page 11 Console for TVs up to 80” STEP 4: Install the drawer bottom panel You need: Q Drawer bottom panel (1) • Slide the drawer bottom panel (Q) into the drawer assembly (N, P, and M) until fully inserted. www.insigniaproducts.com...
  • Page 12 STEP 5: Install the drawer bottom support You need: Phillips screwdriver R Drawer bottom support (1) Z 38 mm screw (2) • Fasten the drawer bottom support (R) to the drawer back panel (M) with two 38 mm screws (Z). The cam screw holes should face upward.
  • Page 13 Console for TVs up to 80” STEP 6: Install the drawer front You need: Phillips screwdriver Y Small cam locks (6) L Drawer front panel (1) • Stand the drawer assembly on its back and position the drawer front panel (L) onto the installed wood dowels. Fasten the drawer front panel in place with the small cam locks (Y).
  • Page 14 STEP 7: Install the drawer handle You need: HH Drawer handle (1) Phillips screwdriver II Handle bolts (2) • Turn the drawer assembly upright and attach the drawer handle (HH) to the front of the drawer assembly with two handle bolts (II). www.insigniaproducts.com...
  • Page 15 Console for TVs up to 80” STEP 8: Assembling the metal base You need: MM Flat washer (4) JJ 5/8” bolt (4) LL Lock washer (4) S Metal base (2) T Metal stretcher (1) RR Hex wrench 4 mm (1) •...
  • Page 16 STEP 9: Attach the metal base to the bottom panel You need: RR Hex key 4 mm (1) MM Flat washer (4) LL Lock washer (4) KK 1-1/4” bolt (4) B Bottom panel (1) • Insert four 1/1/4” bolts (KK) with lock washers (LL) and flat washers (MM) through the holes on both bases (S), then tighten them into the threaded holes in the bottom panel (B) with the 4 mm hex wrench.
  • Page 17 Console for TVs up to 80” STEP 10: Prepare the bottom panel assembly You need: Phillips screwdriver V Cam pin (8) • Securely screw eight cam pins (V) into the indicated small holes in the bottom panel assembly, using a Phillips screwdriver.
  • Page 18 STEP 11: Prepare the top panel and partition panels You need: V Cam pin (12) F Right partition panel (1) E Left partition panel (1) A Top panel (1) Phillips screwdriver • Securely screw twelve cam pins (V) into the indicated small holes in the top panel (A) and the partition panels (E and F) with a Phillips screwdriver.
  • Page 19 Console for TVs up to 80” STEP 12: Prepare the side panels, partition panels, and media shelf You need: C Left side panel (1) E Left partition panel (1) D Right side panel (1) U Wood dowel (20) SS Glue (1) F Right partition panel (1) G Media shelf (1) •...
  • Page 20 STEP 13: Attach the partition panels to the media shelf You need: W Large cam lock (4) F Right partition panel (1) E Left partition panel (1) G Media shelf (1) Phillips screwdriver • Attach the media shelf (G) between the partition panels (E and F) by engaging four large cam locks (W). The cam screw holes must face inward Cam screw holes www.insigniaproducts.com...
  • Page 21 Console for TVs up to 80” STEP 14: Install the media shelf You need: Phillips screwdriver W Large cam lock (4) • Install the media shelf assembly to the bottom assembly by engaging four large cam locks (W), using a Phillips screwdriver.
  • Page 22 STEP 15: Attach the side panels You need: Phillips screwdriver W Large cam lock (4) D Right side panel (1) C Left side panel (1) • Attach the side panels (C and D) to the bottom assembly by engaging four large cam locks (W), using a Phillips screwdriver.
  • Page 23 Console for TVs up to 80” STEP 16: Install the back panel You need: K Back panel (1) • Unfold the back panel (K), then slide it into the grooves on both side panels (C and D) until fully inserted into the bottom panel assembly.
  • Page 24 STEP 17: Install the door stoppers You need: Phillips screwdriver BB 15 mm screws (4) CC Door stoppers (2) • Using the pilot holes as a guide, fasten two door stoppers (CC) to the top panel (A) with two 15 mm screws (BB) in each, using a Phillips screwdriver.
  • Page 25 Console for TVs up to 80” STEP 18: Install the top panel You need: Phillips screwdriver W Large cam lock (8) A Top panel (1) 1 Using assistance, place the top panel (A) onto the wood dowels (U) on the vertical panels. Make sure that the back panel (K) fits securely into the groove of the top panel (A).
  • Page 26 STEP 19: Secure the back panel to the partition panels You need: Phillips screwdriver AA Washer head screws (4) • Insert four washer head screws (AA) through the holes in the back panel (K) and screw them into the partition panels using a Phillips screwdriver.
  • Page 27 Console for TVs up to 80” STEP 20: Fasten the back panel You need: Phillips screwdriver PP 17 mm screws (8) NN Plastic holders (8) 1 Insert eight plastic holders (NN) evenly into the gaps between the back panel (K) and frame panels (A, B, C and D) as shown.
  • Page 28 STEP 21: Install the door hinges and handles You need: FF Zinc screws (8) II Handle bolts (4) GG Hinges (4) HH Handles (2) I Door (2) Phillips screwdriver 1 Extend two door hinges (GG) and rest the hinge cups onto the cutouts of each door (I). Secure the door hinges (GG) in place by using two zinc screws (FF) for each.
  • Page 29 Console for TVs up to 80” STEP 22: Install the doors You need: Phillips screwdriver 1 Align one door (I) to the pre-attached bolts on the two hinges (GG) with the threaded holes on the hinge supports on the left side panel (C), then secure with a Phillips screwdriver. 2 Repeat the same process to attach the other door (I) to the right side panel (D).
  • Page 30 STEP 23: Install the adjustable shelves You need: EE Shelf supports (8) DD PVC covers (16) H Adjustable shelves (2) 1 Place the PVC covers (DD) onto the visible cam locks to conceal them. 2 Open the doors (I) and insert four shelf supports (EE) into the holes at the desired height inside each side compartment.
  • Page 31 Console for TVs up to 80” STEP 24: Insert the drawer • Extend the ball bearing slide tracks on the partition panels (E and F) all the way forward (including ball bearing cart), then align the slide runners on the assembled drawer with the slide tracks and push the drawer carefully inside until it stops.
  • Page 32 STEP 25: Attach the stopper to the top panel You need: QQ Acrylic stopper (2) Pliers If you place your TV on top of your console, you must follow these instructions to prevent your TV from tipping. Otherwise, skip to STEP 27: Position the TV console and install the tipping restraint on page 34. If your TV has one stand: 1 Remove the paper backing from the stopper (QQ), then place it in the stopper cut-out template on the top panel (A).
  • Page 33 Console for TVs up to 80” STEP 26: Change the door panel You need: Phillips screwdriver J Wood panels (2) Follow these steps if you want to change your console’s door panels from glass to wood. Otherwise, skip this step. 1 Rotate the clips to remove the old panel.
  • Page 34 STEP 27: Position the TV console and install the tipping restraint You need: Drill UU Tipping restraint (2) Rubber mallet Drill bit Drill 1 Position the assembled console against the wall where you plan to use it. 2 Adjust the leveling feet to level the TV console. 3 Follow the instructions printed on the bag containing the tipping restraint hardware kit (UU) to attach the restraint hardware to the wall and the console.

  • Page 35: Maintaining Your Tv Console

    Console for TVs up to 80” Maintaining your TV console Wood/Laminate • Use your favorite type of furniture polish. • Do not spray polish directly onto the stand. Spray onto a soft cloth, then wipe the stand. • Always test any polish in a discrete location first, such as the back of the stand, to make sure that there is no adverse reaction.

  • Page 36: One-Year Limited Warranty

    During the Warranty Period, if the original manufacture of the material or workmanship of the Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts.
  • Page 37 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico) INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. V1 ENGLISH ©2021 Best Buy. All rights reserved.
