Insignia NS-HFTVS3N175 Assembly Manual

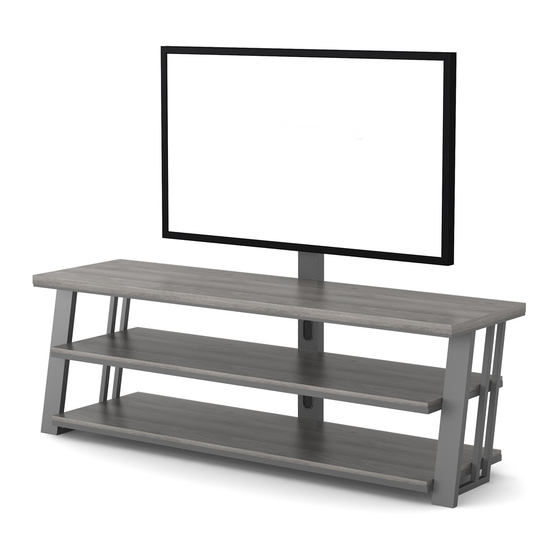

3-in-1 tv stand
Hide thumbs

Advertisement

Table of Contents

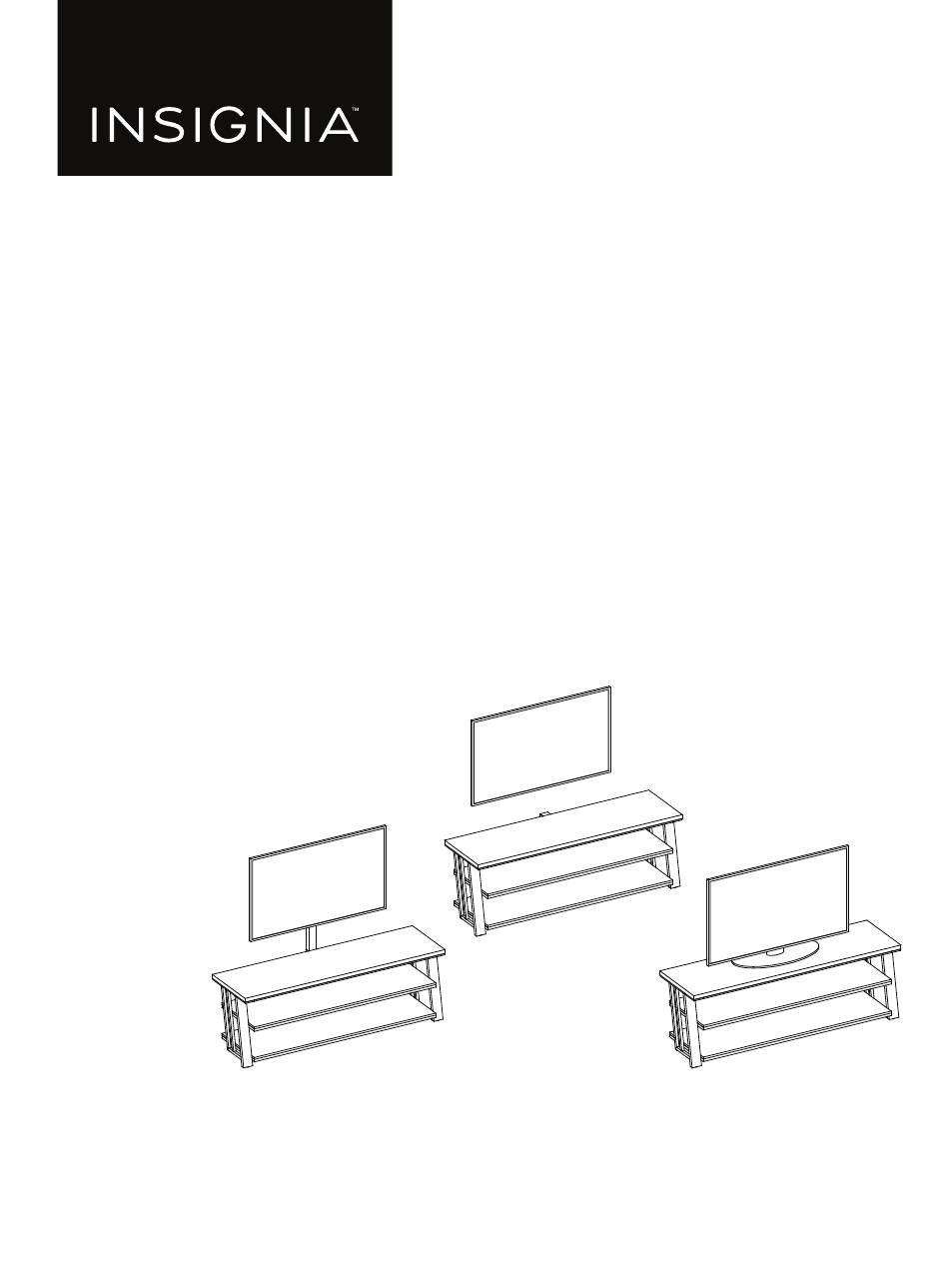

ASSEMBLY GUIDE
3-in-1 TV Stand
NS-HFTVS3N175
Before using your new product, please read these instructions to prevent any damage.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NS-HFTVS3N175 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Insignia NS-HFTVS3N175

Summary of Contents for Insignia NS-HFTVS3N175

  • Page 1 ASSEMBLY GUIDE 3-in-1 TV Stand NS-HFTVS3N175 Before using your new product, please read these instructions to prevent any damage.

  • Page 2: Table Of Contents

    Contents IMPORTANT SAFEGUARDS ................3 Features .

  • Page 3: Important Safeguards

    3-in-1 TV Stand IMPORTANT SAFEGUARDS WARNING Some steps are more easily handled with two adults. CAUTION The top surface of this stand is designed for use with a product weighing no more than 100 lbs. (45.4 kg) and having a width that permits it to sit evenly on the stand with no more than a one-inch overhang on each side of the shelf.

  • Page 4: Features

    Features • 3-in-1 display system lets you tilt (5° up/11° down) or swivel (45° left/right) your TV to find the best view • Sturdy mount supports most flat screen TVs up to 75 in. (190.5 cm) and 100 lbs. (45.4 kg) •...

  • Page 5: Package Contents

    3-in-1 TV Stand Package contents Parts A Top shelf frame (1) B Middle shelf (1) C Bottom shelf (1) F Spine assembly (1) D Left side frame (1) E Right side frame (1) G Top shelf support (1) I Mounting frame (1) J TV bracket (2) K Cable clip (2) H Swivel bracket (1)

  • Page 6: Hardware

    Hardware LABEL STAND PART QTY. LABEL STAND PART QTY. Plastic end cap Bolt 1/2" (12.7 mm) Hex key 4 mm Bolt 5/8" (15.9 mm) Hex key 4.8 mm Bolt 1"’ (25.4 mm) Touch-up pen Bolt 1 1/4" (31.6 mm) Tipping restraint hardware kit Bolt 1 3/4"...

  • Page 7: Tools Needed

    3-in-1 TV Stand Hardware (continued) LABEL STAND PART QTY. LABEL STAND PART QTY. Bolt M6 × 35 mm Lock washer M6 Bolt M8 × 16 mm Lock washer M8 Large spacer Bolt M8 × 20 mm Small spacer Bolt M8 × 40 mm Flat washer M4/M5 Bolt M8 ×...

  • Page 8: Assembling Your Stand

    Assembling your stand Tip: Assemble your stand on a carpeted floor or the empty TV stand carton to avoid scratching it. Note: Do not fully tighten all bolts until you finish assembling all of the parts. After assembly, go back and fully tighten all bolts.
  • Page 9 3-in-1 TV Stand STEP 2: Attach the top shelf support to the top panel and spine You need: Q Lock washer (3) R Flat washer (3) W 4 mm hex key (1) M 5/8" bolt (3) G Top shelf support (1) 1 Align the top shelf support (G) with the center of the top shelf frame (A).
  • Page 10 STEP 3: Attach the middle shelf to the spine You need: Q Lock washer (2) R Flat washer (2) W 4 mm hex key (1) O 1 1/4" bolt (2) B Middle shelf (1) 1 Place flat washers (R), then lock washers (Q) over the two drilled holes on the middle shelf (B). Note: The metal frame faces the floor when you turn your stand upright.
  • Page 11 3-in-1 TV Stand STEP 4: Attach the bottom shelf to the spine You need: Q Lock washer (2) R Flat washer (2) W Hex key 4 mm (1) O 1 1/4" bolt (2) C Bottom shelf (1) 1 Place flat washers (R), then lock washers (Q) over the two drilled holes on the bottom shelf (C). Note: The metal frame faces the floor when you turn your stand upright.
  • Page 12 STEP 5: Align and attach the right side frame to the shelves You need: Q Lock washer (4) R Flat washer (4) W Hex key 4 mm (1) O 1 1/4" bolt (4) E Right side frame (1) 1 Place flat washers (R), then lock washers (Q) over the four drilled holes on the inside of the lower shelves (B and C). 2 Insert 1 1/4"...
  • Page 13 3-in-1 TV Stand STEP 6: Attach the right side frame to the top panel You need: Q Lock washer (2) R Flat washer (2) W Hex key 4 mm (1) N 1" bolt (2) 1 Place flat washers (R), then lock washers (Q) over the two drilled holes on the inside of the top rail of right side frame (E).
  • Page 14 STEP 7: Attach the left side frame to the shelves You need: Q Lock washer (4) R Flat washer (4) W Hex key 4 mm (1) O 1 1/4" bolt (4) D Left side frame (1) • Follow the steps in STEP 5: Align and attach the right side frame to the shelves on page 12 to attach the left side frame (D) to the lower shelves (B and C).
  • Page 15 3-in-1 TV Stand STEP 8: Fasten the left side frame to the top panel You need: Q Lock washer (2) R Flat washer (2) W Hex key 4 mm (1) N 1" bolt (2) 1 Follow the steps in STEP 6: Attach the right side frame to the top panel on page 13 to attach the left side frame (D) to the top shelf frame (A).

  • Page 16: Mounting The Tv Using The Swivel Configuration

    Mounting the TV using the swivel configuration Note: If you are wall-mounting the TV, go to STEP 4: Select the correct bolts, washers, and spacers for your TV on page 19. STEP 1: Attach the swivel bracket to the mounting frame You need: Q Lock washer (4) R Flat washer (4)
  • Page 17 3-in-1 TV Stand STEP 2: Attach the swivel bracket assembly to the spine You need: Q Lock washer (6) R Flat washer (6) W Hex key 4 mm (1) M 5/8" bolt (6) Note: The upper spine provides four height options for your TV. Based on your TV size, adjust the swivel bracket (H) to the best height to offer optimum viewing.
  • Page 18 STEP 3: Attach the cable clips You need: W Hex key 4 mm (1) M 5/8" bolt (4) K Cable clip (2) 1 Align a cable clip with two of four possible locations on the spine assembly (F), then insert two 5/8" bolts (M) through the cable clip and into the spine assembly.
  • Page 19 3-in-1 TV Stand STEP 4: Select the correct bolts, washers, and spacers for your TV If you are in doubt about which size bolt to use, try one of the bolts in one of the four Vesa mounting holes on the back of your TV.
  • Page 20 STEP 5: Determine whether your TV has a flat back or an irregular or obstructed back or a curved screen 1 Carefully place your TV screen face-down on a cushioned, clean surface to protect the screen from damages and scratches. 2 If your TV has a table-top stand attached, remove the stand.
  • Page 21 3-in-1 TV Stand STEP 6: Option 1 - Mounting brackets on a TV with a flat back You need: Bolts and Washers AA M4 × 12 mm CC M5 × 12 mm EE M6 × 12 mm GG M8 × 16 mm bolt (4) bolt (4) bolt (4)
  • Page 22 STEP 6: Option 2: Mounting bracket on a TV with an irregularly shaped or obstructed back or a curved screen TV You need: Bolts and Washers BB M4 × 30 mm DD M5 × 30 mm FF M6 × 35 mm bolt (4) II M8 ×...
  • Page 23 3-in-1 TV Stand STEP 7: Attach the TV to the mounting frame on the swivel bracket Note: If you are wall-mounting the TV, go to Mounting the TV using the wall-mount configuration on page 26. You need: Phillips screwdriver 1 With the help of another adult, lift the TV up to the mounting frame (I). 2 Set the hooks on TV brackets (J) over the mounting frame (I), then lower the hooks onto the bars of the mounting frame.
  • Page 24 STEP 8: Adjusting the tilt You need: X 4.8 mm Hex key (1) The TV brackets (J) let you make a tilt adjustment of up to 11° down and 5° up to provide optimum viewing and minimize glare. 1 Turn the tension knobs counterclockwise to loosen the knobs on both TV brackets (J), then grasp the edge of the TV and move it up or down to the position you want.
  • Page 25 3-in-1 TV Stand STEP 9: Position your TV stand and install the tipping restraint hardware kit You need: Z Tipping restraint hardware kit (1) Level B Nylon strap (1) A Metal bracket (2) 1/8" drill bit Power drill Pencil Edge-to-edge stud finder D Short screw (1) C Long screw (1) 1 Position your assembled stand against a wall where you plan to use it.

  • Page 26: Mounting The Tv Using The Wall-Mount Configuration

    Mounting the TV using the wall-mount configuration STEP 1: Remove the upper spine You need: W 4 mm hex key (1) • Unscrew the four bolts and the washers on the spine assembly (F), then remove the upper spine from the spine assembly.
  • Page 27 3-in-1 TV Stand STEP 2: Insert the end cap You need: V Plastic end cap (1) • Plug the plastic end cap (V) all the way onto the top of the lower spine (F). www.insigniaproducts.com...
  • Page 28 STEP 3: Attach the cable clips You need: W Hex key 4 mm (1) M 5/8" bolt (4) K Cable clip (2) • Fasten two cable clips (K) to the back of lower spine (F) using four 5/8" bolts (M). Cables wrapped on cable clips www.insigniaproducts.com...
  • Page 29 3-in-1 TV Stand STEP 4: Option 1 - Mount the frame to a stud wall If you are mounting the TV on a concrete or block wall, to go STEP 4: Option 2- Mount the frame to a block or concrete wall on page 30.
  • Page 30 STEP 4: Option 2- Mount the frame to a block or concrete wall You need: Level T Concrete anchor (4) Hammer 7/16” masonry drill bit S Lag bolt (4) Power drill Pencil Socket wrench Edge-to-edge U Large flat washer (4) stud finder 1 Place the mounting frame (I) against the wall where you intend to mount the TV.
  • Page 31 3-in-1 TV Stand STEP 5: Attach the TV to the mounting frame on the wall You need: Phillips screwdriver 1 Depending on the type of TV that you own, attach the TV brackets (J) to the back of the TV following the steps in: •...
  • Page 32 STEP 6: Adjust the tilt You need: X 4.8 mm Hex key (1) The TV brackets (J) let you make a tilt adjustment of up to 11° down and 5° up to provide optimum viewing and minimize glare. 1 Loosen the tension knobs on both TV brackets (J), then grasp the edge of the TV and move it up or down to the position you want.

  • Page 33: Mounting The Tv Using The Tabletop Configuration

    3-in-1 TV Stand Mounting the TV using the tabletop configuration STEP 1: Remove the upper spine You need: W 4 mm hex key (1) • Unscrew the four bolts and the washers on the spine assembly (F), then remove the upper spine from the spine assembly.
  • Page 34 STEP 2: Insert the end cap You need: V Plastic end cap (1) • Plug the plastic end cap (V) all the way onto the top of the lower spine (F). www.insigniaproducts.com...
  • Page 35 3-in-1 TV Stand STEP 3: Attach the cable clips You need: W Hex key 4 mm (1) M 5/8" bolt (4) K Cable clip (2) • Fasten two cable clips (K) to the back of lower spine (F) using four 5/8" bolts (M). Cables wrapped on cable clips www.insigniaproducts.com...
  • Page 36 STEP 4: Position your TV stand and install the tipping restraint hardware kit You need: Level Z Tipping restraint Pencil hardware kit (1) 1/8" drill bit Edge-to-edge stud finder Power drill 1 Position your assembled stand against a wall where you plan to use it. 2 Adjust the leveling feet to level your TV stand.

  • Page 37: Maintaining Your Tv Stand

    3-in-1 TV Stand Maintaining your TV stand Wood/Laminate • Use your favorite type of furniture polish. • Do not spray polish directly onto the stand. Spray onto a soft cloth, then wipe the stand. • Always test any polish in a discrete location first, such as the back of the stand, to make sure that there is no adverse reaction.

  • Page 38: One-Year Limited Warranty

    During the Warranty Period, if the original manufacture of the material or workmanship of the Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts.
  • Page 39 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico) INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. V1 ENGLISH ©2021 Best Buy. All rights reserved.
