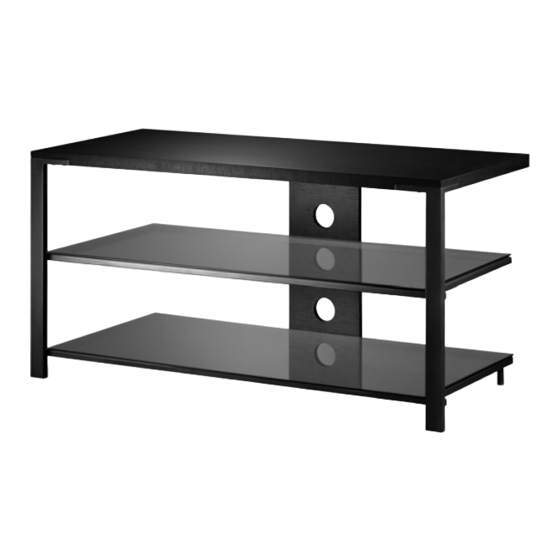

Wood, metal and glass tv stand for tvs up to 48” or 100 lbs
Hide thumbs

Advertisement

Quick Links

Download this manual
Wood, Metal and Glass
TV Stand
for TVs up to 48" or 100 lbs.
NS-HWMG1844
Before using your new product, please read these instructions to prevent any damage.
PACKAGE CONTENTS: PARTS..........................................3
PACKAGE CONTENTS: HARDWARE ..............................4
ASSEMBLY INSTRUCTIONS..............................................5
CARE AND MAINTENANCE .......................................... 12
USER GUIDE

Advertisement

loading
Need help?

Need help?

Do you have a question about the NS-HWMG1844 and is the answer not in the manual?

Questions and answers

Related Manuals for Insignia NS-HWMG1844

Summary of Contents for Insignia NS-HWMG1844

  • Page 1: Table Of Contents

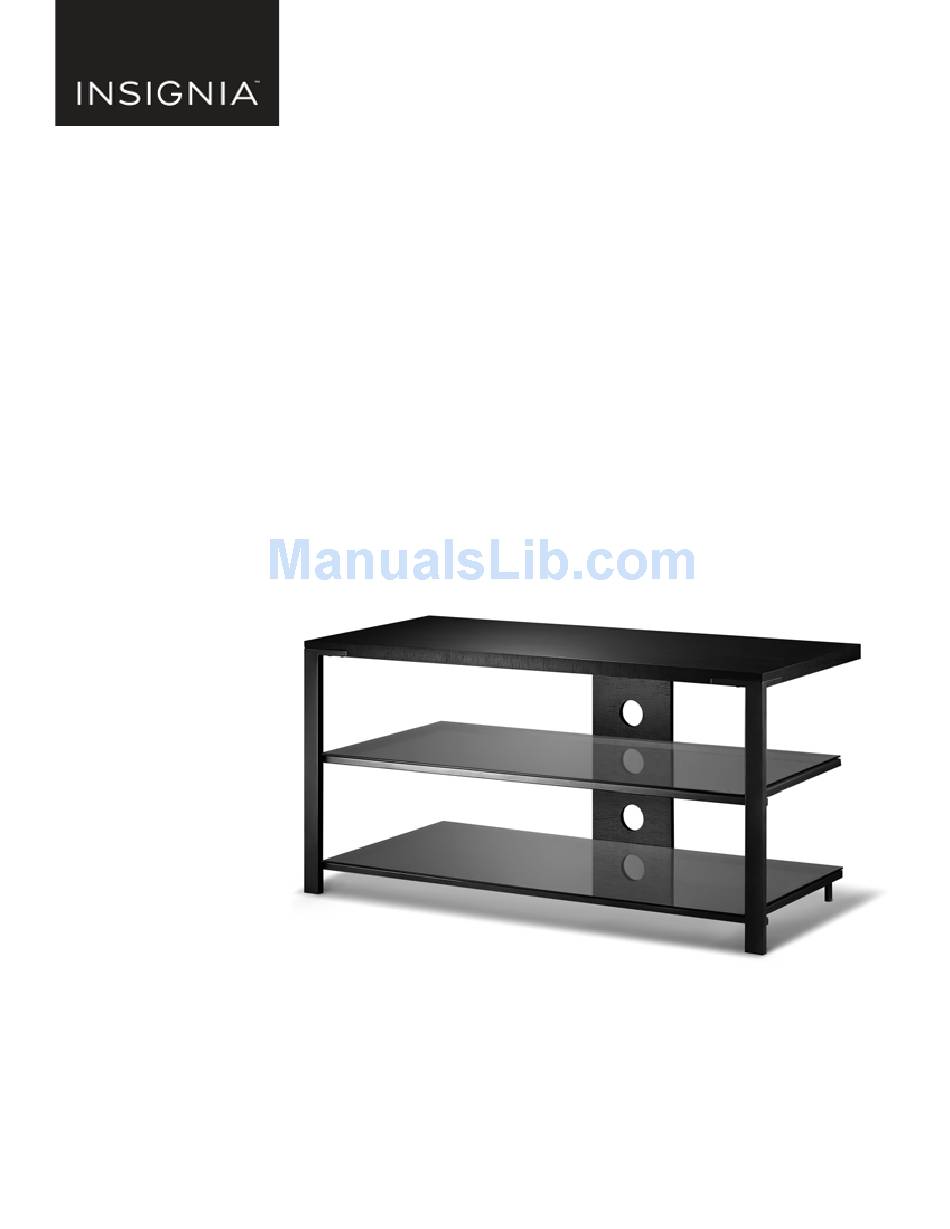

    USER GUIDE Wood, Metal and Glass TV Stand for TVs up to 48” or 100 lbs. NS-HWMG1844 SAFETY INFORMATION AND SPECIFICATIONS..2 PACKAGE CONTENTS: PARTS..........3 PACKAGE CONTENTS: HARDWARE ......4 ASSEMBLY INSTRUCTIONS..........5 CARE AND MAINTENANCE .......... 12 Before using your new product, please read these instructions to prevent any damage.

  • Page 2: Safety Information And Specifications

    NS-HWMG1844 SAFETY INFORMATION AND SPECIFICATIONS CAUTION: The top surface of this stand is Maximum top shelf weight: 100 lbs. (45.5 kg) designed for use with a product weighing no Maximum middle/bottom shelf weight: more than 100 lbs. (45.5 kg) and having a width that permits it to sit evenly on the stand 50 lbs.

  • Page 3: Package Contents: Parts

    Wood, Metal and Glass TV Stand Tools needed: Wood drill bit Phillips screwdriver (3/16”) Rubber mallet Drill PACKAGE CONTENTS: PARTS Make sure that you have all the parts necessary to assemble your new TV stand. 3 Right leg (Qty. 1) 2 Left leg (Qty.

  • Page 4: Package Contents: Hardware

    NS-HWMG1844 PACKAGE CONTENTS: HARDWARE Make sure that you have all the hardware necessary to assemble your new TV stand. Hardware Qty. Label Hardware Qty. Short wood screw Supports (3.5 x 12 x 8 mm) Adhesive Long wood screw glass support...

  • Page 5: Assembly Instructions

    Wood, Metal and Glass TV Stand ASSEMBLY INSTRUCTIONS Step 1: Attach the supports and wood dowel : Assemble your stand on a carpeted floor or the empty TV stand box to avoid scratching it. 1 Screw the two supports (A) into the lower frame (#5). 2 Glue a wood dowel (C) into the end of the back panel (#6): A Put one drop of glue (H) in the hole, then insert the wood dowel (C).
  • Page 6 NS-HWMG1844 Step 2: Attach the frames to the legs : Do not fully tighten the bolts until the end of step 4. 1 Align the lower frame (#5) with the holes in the left and right legs (#2 and #3), then insert a spring washer (I) and a flat washer (J) onto four short Allen bolts (E) and secure with an Allen wrench (D).
  • Page 7 Wood, Metal and Glass TV Stand Step 3: Attach the back panel : Do not fully tighten the bolts until the end of step 4. • Attach the back panel (#6) to the middle and lower frames (#4 and #5) with four long Allen bolts (F) and the Allen wrench (D).
  • Page 8 NS-HWMG1844 Step 4: Attach the top shelf 1 Align the assembly with the top shelf (#1). Make sure that the assembly is aligned with the corners of the top shelf and that the wood dowel (in the back panel) is inserted into the top shelf.
  • Page 9 Wood, Metal and Glass TV Stand Step 5: Attach the glass supports 1 Flip the TV stand upright. 2 Peel off the 12 adhesive glass supports (B) and stick them onto the middle and lower frames (#4 and #5). Place six on each frame (three on the back and three on the front).
  • Page 10 NS-HWMG1844 Step 6: Insert the glass shelves • Slide the glass shelves (#7) onto the middle and lower frames (#4 and #5). www.insigniaproducts.com...
  • Page 11 Wood, Metal and Glass TV Stand Step 7: Secure your TV stand to the wall 1 Attach two mounting brackets (WD) to the holes on the back of the TV stand’s back panel with two short wood screws (WA) and a Phillips screwdriver. Make sure that the brackets face down (as shown). 2 Decide where you want to place your TV stand, then drill two holes in your wall with a 3/16”...

  • Page 12: Care And Maintenance

    NS-HWMG1844 CARE AND MAINTENANCE Wood/Laminate • Use your favorite type of furniture polish. • Do not spray polish directly onto the stand. Spray onto a soft cloth then wipe the stand. • Clean spills immediately with a soft, damp cloth.
  • Page 13 DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE AND Insignia and are not returned to you. If service of Products or NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY parts are required after the Warranty Period expires, you must AFTER THE WARRANTY PERIOD.
  • Page 14 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico) www.insigniaproducts.com INSIGNIA is a trademark of Best Buy and its affiliated companies. Registered in some countries. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. ©2017 Best Buy. All rights reserved.
