Insignia NS-MG1344 User Manual
Insignia NS-MG1344 User Manual

Insignia NS-MG1344 User Manual

High-gloss black metal and glass tv stand

Advertisement

Quick Links

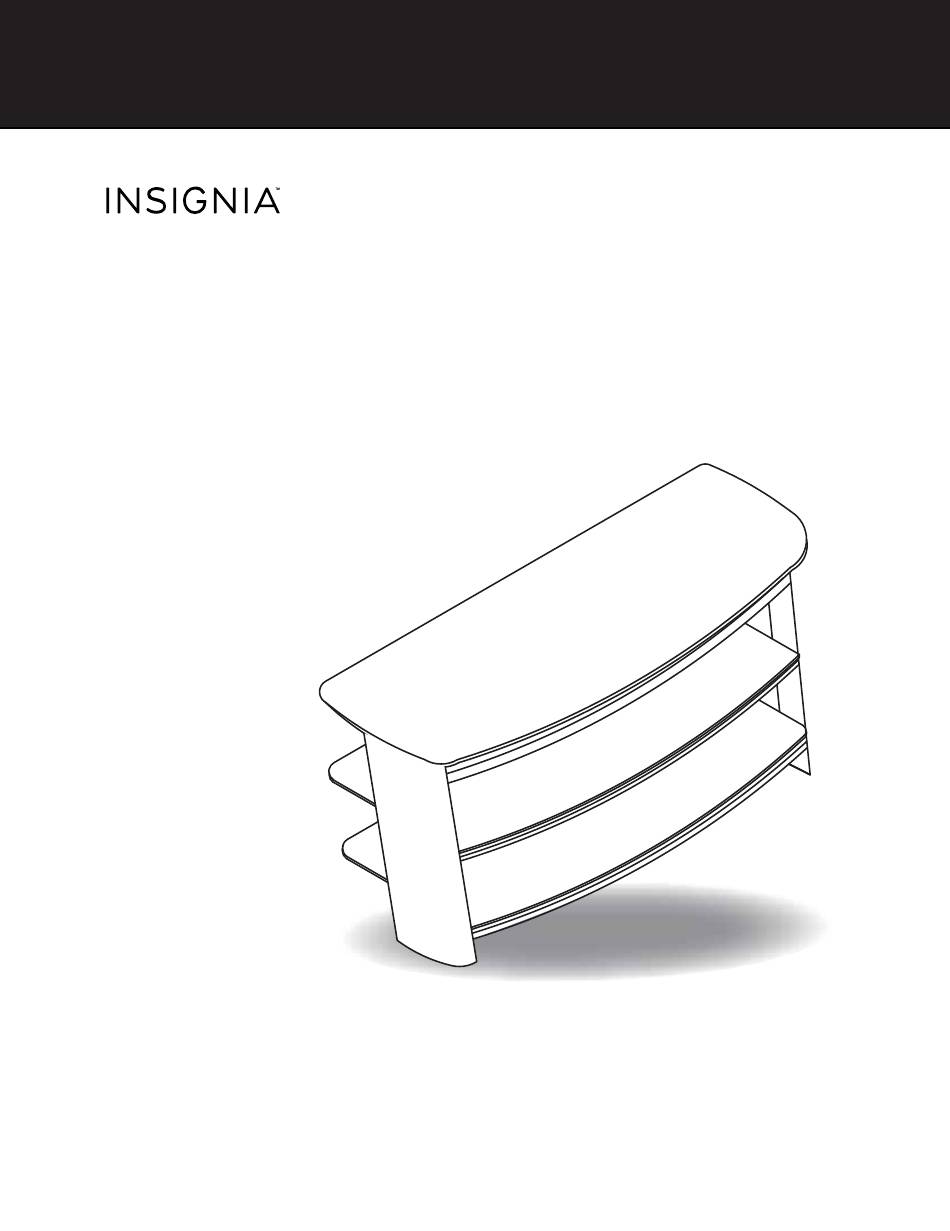

High-Gloss Black Metal
and Glass TV Stand
NS-MG1344
Before using your new product, please read these instructions to prevent any damage.
PACKAGE CONTENTS: PARTS.....................................3
PACKAGE CONTENTS: HARDWARE..........................4
ASSEMBLY INSTRUCTIONS.........................................5
CARE AND MAINTENANCE...................................... 15
USER GUIDE

Advertisement

loading
Need help?

Need help?

Do you have a question about the NS-MG1344 and is the answer not in the manual?

Questions and answers

Summary of Contents for Insignia NS-MG1344

  • Page 1: Table Of Contents

    USER GUIDE High-Gloss Black Metal and Glass TV Stand NS-MG1344 SAFETY INFORMATION AND SPECIFICATIONS..2 PACKAGE CONTENTS: PARTS........3 PACKAGE CONTENTS: HARDWARE......4 ASSEMBLY INSTRUCTIONS.........5 CARE AND MAINTENANCE........15 Before using your new product, please read these instructions to prevent any damage.
  • Page 2: Safety Information And Specifications

    Keep these items away from young 38.25 × 15.5 in. (97.2 x 39.5 cm) children! Usable height: 7.25 in. (18.5 cm) Model #: NS-MG1344 Bottom shelf (W × D): 38.25 × 17.5 in. (97.2 x 44.6 cm) Usable height: 7.6 in. (19.4 cm)
  • Page 3: Package Contents: Parts

    HIGH-GLOSS BLACK METAL AND GLASS TV STAND Tools needed: Phillips screwdriver PACKAGE CONTENTS: PARTS B Middle glass shelf (1) A Top glass shelf (1) C Bottom glass shelf (1) D Left front leg (1) E Right front leg (1) F Top frame (1) G Brace (1) H Bottom frame (1) I Back panel (1)
  • Page 4: Package Contents: Hardware

    HIGH-GLOSS BLACK METAL AND GLASS TV STAND PACKAGE CONTENTS: HARDWARE Note: You may receive extra hardware. Make sure that you have all of the hardware necessary to assemble your new TV stand: Label Hardware Qty. Label Hardware Qty. WARNING ADVERTENCIA AVERTISSEMENT Never use this furniture Nunca use este mueble con un...
  • Page 5: Assembly Instructions

    HIGH-GLOSS BLACK METAL AND GLASS TV STAND ASSEMBLY INSTRUCTIONS Step 1: Prepare the frame. Caution: Assemble your stand on a carpeted floor or the empty carton to avoid scratching your stand. • Stick nine glass spacers (N) to the bottom frame (H). You’ll need: N (9) www.insigniaproducts.com...
  • Page 6 HIGH-GLOSS BLACK METAL AND GLASS TV STAND Step 2 Attach the bottom frame to the legs. • Attach the bottom frame (H) to the front legs (D and E) using three 1/2" bolts (J) per leg. Make sure that the glass spacers (N) face toward the inside of the stand.
  • Page 7 HIGH-GLOSS BLACK METAL AND GLASS TV STAND Step 3 Attach the brace. • Attach the brace (G) to the front legs (D and E) using three 1/2" bolts (J) per leg. You’ll need: J (6) O (1) www.insigniaproducts.com...
  • Page 8 HIGH-GLOSS BLACK METAL AND GLASS TV STAND Step 4 Attach the top frame. • Attach the top frame (F) to the front legs (D and E) using three 1/2" bolts (J) per leg. Make sure that the tabs on the top frame (F) are closer to the outside of your stand. You’ll need: J (6) O (1)
  • Page 9 HIGH-GLOSS BLACK METAL AND GLASS TV STAND Step 5: Attach the back panel. • Align the back panel (I) with the top frame (F), then attach the back panel to the top frame (F) and bottom frame (H) using four 1-1/2" bolts (Q) and four 7/8" bolt nuts (R). Note: Use one Allen wrench (O) to hold the 7/8"...
  • Page 10 HIGH-GLOSS BLACK METAL AND GLASS TV STAND Step 6: Attach the cable management clips. • Fasten the cable management clips (L) to the rear legs on the back panel (I). Use two 5/8" pan head screws (S). You’ll need: L (2) S (2) Phillips screwdriver www.insigniaproducts.com...
  • Page 11 HIGH-GLOSS BLACK METAL AND GLASS TV STAND Step 7: Install the shelf clips. 1 Loosen the white plastic screws in the two glass clips (M) until the screws are almost all the way out of the clips. 2 Push the two glass clips (M) into the holes in the back panel (I). Make sure that the beveled edges of the glass clips face up and the plastic screws inside the clips face down.
  • Page 12 HIGH-GLOSS BLACK METAL AND GLASS TV STAND Step 8: Attach the glass top. CAUTION: Tempered safety glass is used. It is stronger than normal glass, and it will not break into long, sharp, knife-like shards. However, safety glass can break. When safety glass breaks, it instantly fractures into small, bead-like pieces.
  • Page 13 HIGH-GLOSS BLACK METAL AND GLASS TV STAND Step 9: Install the middle and bottom shelves. Note: The curved edges of the glass shelves should face out. 1 Carefully insert the middle glass shelf (B) into the two glass clips and onto the glass spacers on the brace (G), then tighten the plastic screws in the glass clips with a Phillips screwdriver.
  • Page 14 HIGH-GLOSS BLACK METAL AND GLASS TV STAND Step 10: Apply the warning label. • Apply the warning label (P) to the top glass shelf (A) so that the TV will hide the label. Peel off the backing and apply the label as shown in the diagram. Note: This is a permanent label intended to last for the life of the product.
  • Page 15: Care And Maintenance

    HIGH-GLOSS BLACK METAL AND GLASS TV STAND CARE AND MAINTENANCE Glass • Use a commercial liquid glass cleaner and a soft cloth. • Do not use harsh powders or any other abrasive substances as they will scratch the glass. WARNING Please use your furniture correctly and safely.
  • Page 16 HIGH-GLOSS BLACK METAL AND GLASS TV STAND www.insigniaproducts.com...
  • Page 17 FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN Insignia and are not returned to you. If service of Products or DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE AND parts are required after the Warranty Period expires, you must NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY pay all labor and parts charges.
  • Page 18 HIGH-GLOSS BLACK METAL AND GLASS TV STAND www.insigniaproducts.com...
  • Page 19 GUÍA DEL USUARIO Base Para TV de Madera Negra y Vidrio con Acabado Brillante NS-MG1344 INFORMACIÓN DE SEGURIDAD Y ESPECIFICACIONES ............ 20 CONTENIDO DE LA CAJA: ELEMENTOS ....21 CONTENIDO DE LA CAJA: FERRETERÍA....22 INSTRUCCIONES DE MONTAJE ......23 CUIDADO Y MANTENIMIENTO.......
  • Page 20 Repisa inferior (Ancho × Profundidad): No levante la base por las repisas de vidrio. Consulte las instrucciones para información 38.25 × 17.5 pulg. (97.2 x 44.6 cm) más detallada. Altura útil: 7.6 pulg. (19.4 cm) N.° de modelo: NS-MG1344 www.insigniaproducts.com...
