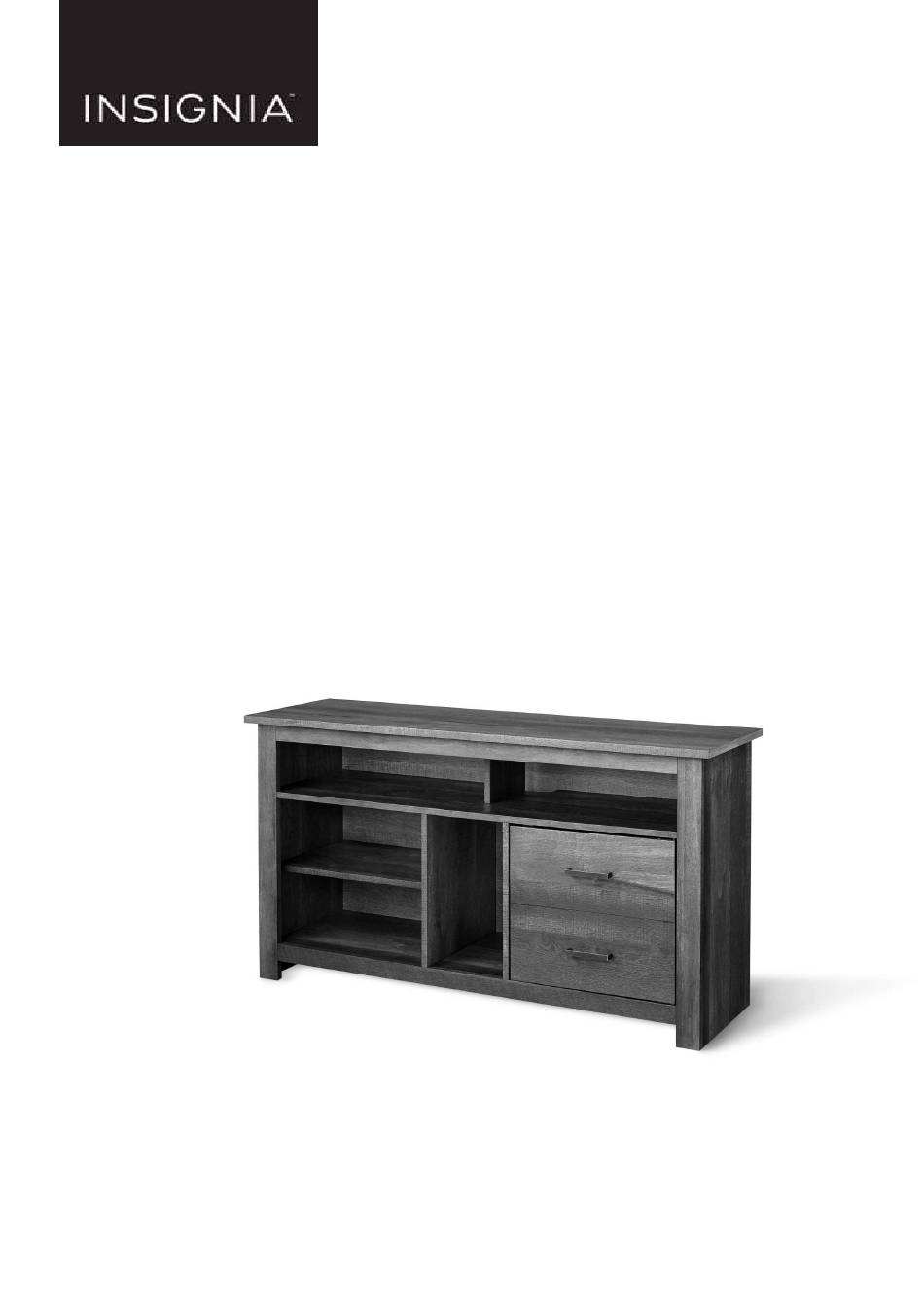

- Page 1 USER GUIDE TV Stand with Gaming Nook NS-HWD1848 Before using your new product, please read these instructions to prevent any damage.
-
Page 2: Table Of Contents
Contents Package contents Safety information Specifications Assembling your TV stand Installing anti-tip hardware Care and maintenance One-Year Limited Warranty www.insigniaproducts.com... -
Page 3: Package Contents
TV Stand with Gaming Nook Package contents Parts (A) Base (B) Supports (2) (C and D) Divider panels (H) Front edge (G) Top (E and F) Sides (J) Large shelf (I) Small back panel (K) Large back panel (L) Small shelves (2) (N) Door (M) Small divider www.insigniaproducts.com... - Page 4 NS-HWD1848 Hardware Label Hardware Quantity Shelf supports Cam screws Cam locks 3 × 15 mm screws 4 × 50 mm screws 8 × 30 mm wood dowels Handle (with screws) Right pin hinge Left pin hinge A3 × 15 mm screws Magnetic catch www.insigniaproducts.com...
- Page 5 TV Stand with Gaming Nook Label Hardware Quantity Anti-tip bracket with plastic strap Cable wraps A4 × 13 mm screw Touch up pen Tools Needed Phillips screwdriver www.insigniaproducts.com...
-
Page 6: Safety Information
Using with other products including products that weigh more than the maximum weight allowed, may result in instability, which may cause possible injury. Model #: NS-HWD1848 Distributed by Best Buy Purchasing, LLC Manufacturer: Bell'O This TV Stand is intended for a TV NO WIDER than 55". TV should be centered and should not hang more than one-inch over either edge. - Page 7 TV Stand with Gaming Nook WARNING Please use your stand correctly and safely. Improper use can cause safety hazards or damage to your furniture or household items. Carefully read the following chart. Look out for: What can happen: How to avoid the problem: Children Risk of injury or Never allow children to climb on or play with...
-
Page 8: Specifications
NS-HWD1848 Specifications Dimensions (H × W × D) 26.0 × 47.5 × 15.5 in. (66 × 120.7 × 39.4 cm) Weight 72.6 lbs. (33 kg) Maximum weight capacity 60 lbs. (27.2 kg) Top: 60 lbs. (27.2 kg) Maximum shelf capacity Large shelf: 45 lbs. (20.4 kg) Side shelves: 15 lbs. -
Page 9: Assembling Your Tv Stand
TV Stand with Gaming Nook Assembling your TV stand Step 1: Setting up the base A Insert six wooden dowels (FF) into the base (A), then screw six cam screws (BB) into smaller holes with a Phillips screwdriver. B Align the supports (B) with the wooden dowels and the cam screws on the base. - Page 10 NS-HWD1848 Step 2: Installing the divider panels A Insert two wooden dowels (FF) into the edge of the each divider panel (C and D). B Align the divider panels' dowels with the holes in the base. The holes on the faces of the divider panels should face outward and the holes on the edges should face down (towards the back).
- Page 11 TV Stand with Gaming Nook Step 3: Setting up the large shelf A Attach the magnetic catch (KK) to the large shelf (J) with two screws (JJ) and a Phillips screwdriver. The magnet should point out towards the edge of the shelf.
- Page 12 NS-HWD1848 Step 4: Attaching the top shelf A Insert four wooden dowels (FF) into the inside holes on the edges of the divider panels. B Align the wooden dowels on the divider panels with the holes on the large shelf. Insert four cam locks (CC), then use a Phillips screwdriver to secure.
- Page 13 TV Stand with Gaming Nook Step 5: Attaching the sides A Insert 14 wooden dowels (FF) around the edges of the stand assembly. Do not insert dowels into the cam screw holes. B Screw 12 cam screws (BB) into the sides (E and F) with a Phillips screwdriver.
- Page 14 NS-HWD1848 C Align the wooden dowels and cam screws on the sides and push them on. You’ll need: FF (14) BB (12) Phillips screwdriver www.insigniaproducts.com...
- Page 15 TV Stand with Gaming Nook Step 6: Attaching the front edge A Insert a wooden dowel (FF) on each side of the front edge (H). B Insert the front edge into the holes on the corners of the sides. Make sure that the holes on the narrow side face up.
- Page 16 NS-HWD1848 E Slide the swivel brackets until they align with the screw holes on the sides, then secure with two screws (DD) and a Phillips screwdriver. You’ll need: FF (2) CC (12) Phillips DD (2) screwdriver www.insigniaproducts.com...
- Page 17 TV Stand with Gaming Nook Step 7: Attaching the small divider A Insert two wooden dowels (FF) into the top of the large shelf. B Align the small divider (M) with the wooden dowels. C Insert a screw (EE) through the bottom of the large shelf and into the divider panel, then secure with a Phillips screwdriver.
- Page 18 NS-HWD1848 Step 8: Attaching the top A Insert nine wooden dowels (FF) into the top edges of the shelf assembly. B Use a Phillips screwdriver to insert eight cam screws (BB) into the top (G). www.insigniaproducts.com...
- Page 19 TV Stand with Gaming Nook C Align the wooden dowels (FF) and cam screws (BB) on the top (G) with the stand assembly. Insert eight cam locks (CC), then use a Phillips screwdriver to secure. You’ll need: FF (9) CC (8) BB (8) www.insigniaproducts.com...
- Page 20 NS-HWD1848 Step 9: Attaching the back A Align the screw holes on the small back panel (I) with the holes on the upper half of the stand assembly, then secure with 16 screws (DD) and a Phillips screwdriver. B Align the screw holes on the large back panel (K) with the holes on the lower half of the stand assembly, then secure with 16 screws (DD) and a...
- Page 21 TV Stand with Gaming Nook C To attach the cable wraps (MM), thread a screw (DD) through each cable wrap, then secure them to the small back panel with a Phillips screwdriver. You’ll need: DD (34) MM (2) Phillips screwdriver www.insigniaproducts.com...
- Page 22 NS-HWD1848 Step 10: Attaching the door A Remove the screws from the handles (GG), then align the handles with the holes on the door (N). Secure with the screws and a Phillips screwdriver. B Insert the hinges (HH and II) into the holes, then slide the door onto the hinges.
- Page 23 TV Stand with Gaming Nook Step 11: Installing the small shelves A Insert the shelf supports (AA) at the height that you want your shelves. B Slide the shelves (L) onto the shelf supports. You’ll need: AA (8) www.insigniaproducts.com...
- Page 24 NS-HWD1848 INSTALLING ANTI-TIP HARDWARE 1 Align the anti-tip bracket with the two small holes in the upper-left corner of the small back panel, then secure it with the two small screws and a Phillips screwdriver. 2 At the location you want to place your TV stand, secure a second anti-tip bracket to your wall with the two large screws and a Phillips screwdriver.
-
Page 25: Care And Maintenance
TV Stand with Gaming Nook Care and maintenance Use your favorite type of furniture polish. Do not spray directly onto the stand. Spray onto a soft cloth then wipe the stand. Always test any polish in a discrete location first, such as the back of the stand, to make sure that there is no adverse reaction. -
Page 26: One-Year Limited Warranty
Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. - Page 27 (burn-in). Damage due to incorrect operation or maintenance Connection to an incorrect voltage or power supply Attempted repair by any person not authorized by Insignia to service the Product Products sold “as is” or “with all faults” Consumables, including but not limited to batteries (i.e. AA, AAA, C etc.)
- Page 28 Contact Insignia: For customer service please call 1-877-467-4289 www.insigniaproducts.com INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. ©2016 Best Buy. All rights reserved.
- Page 29 1-877-467-4289 (U.S. and Canada) www.insigniaproducts.com INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. V2 ENG ©2016 Best Buy. All rights reserved. 16-1105 Made in China.
