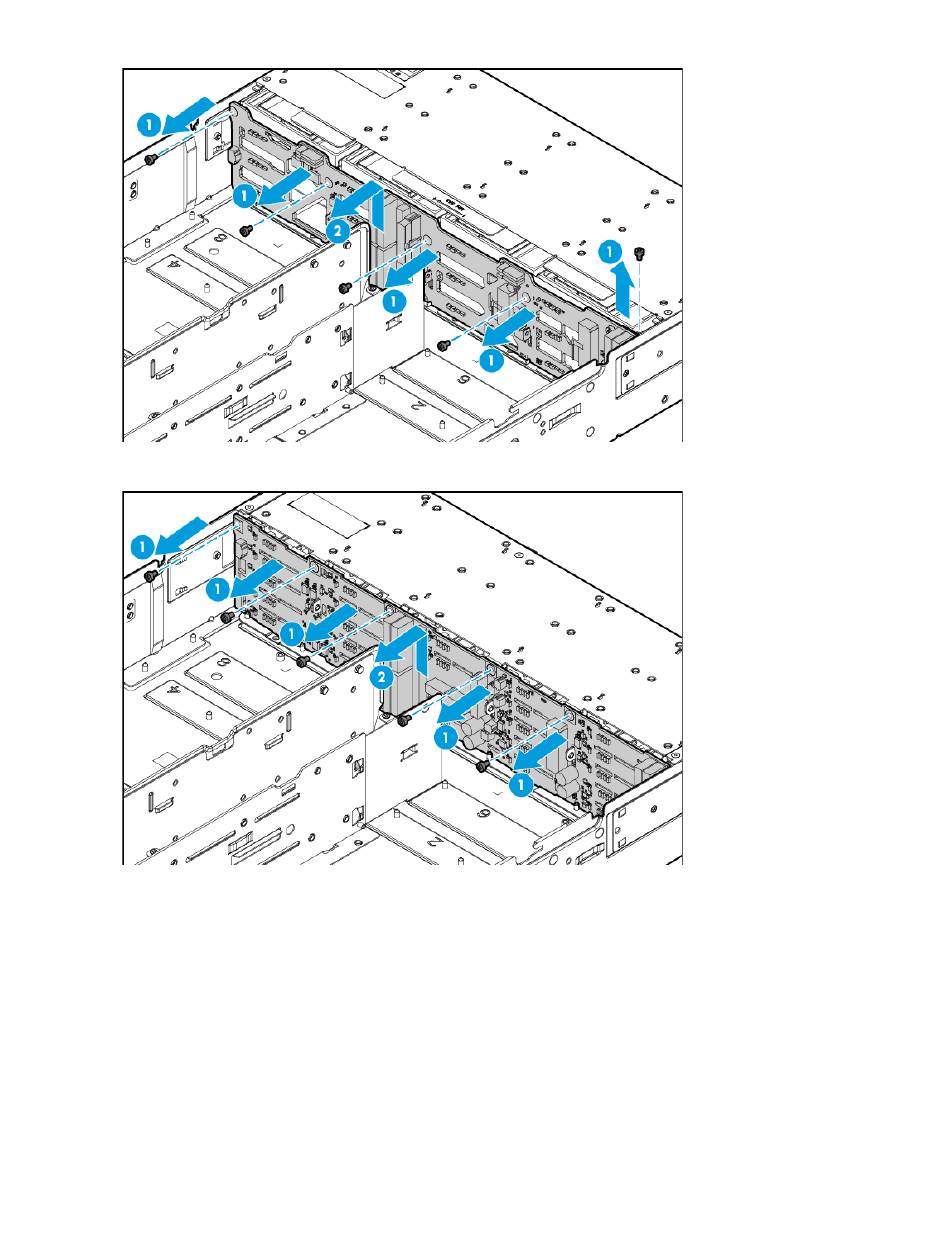

12 low-profile LFF drive backplane for HP Apollo r2200 Chassis
o
24 SFF drive backplane for HP Apollo r2600 Chassis
o
To replace the component, reverse the removal procedure.

Fan module

To remove the component:
Power down the system (on page 27).
1.
Disconnect all peripheral cables from the nodes and chassis.
2.
Remove all nodes from the chassis
3.
If installed, remove the security bezel (on page 31).
4.
Remove all drives
5.
If installed, remove the RCM module.
6.
("Remove the node from the
("Hot-plug drive" on page 58).
("Remove the RCM
chassis" on page 27).
module" on page 29)
Removal and replacement procedures 55
