DITEC Entrematic LOGICM Installation Manual page 7

Output Value - Accessories
J7

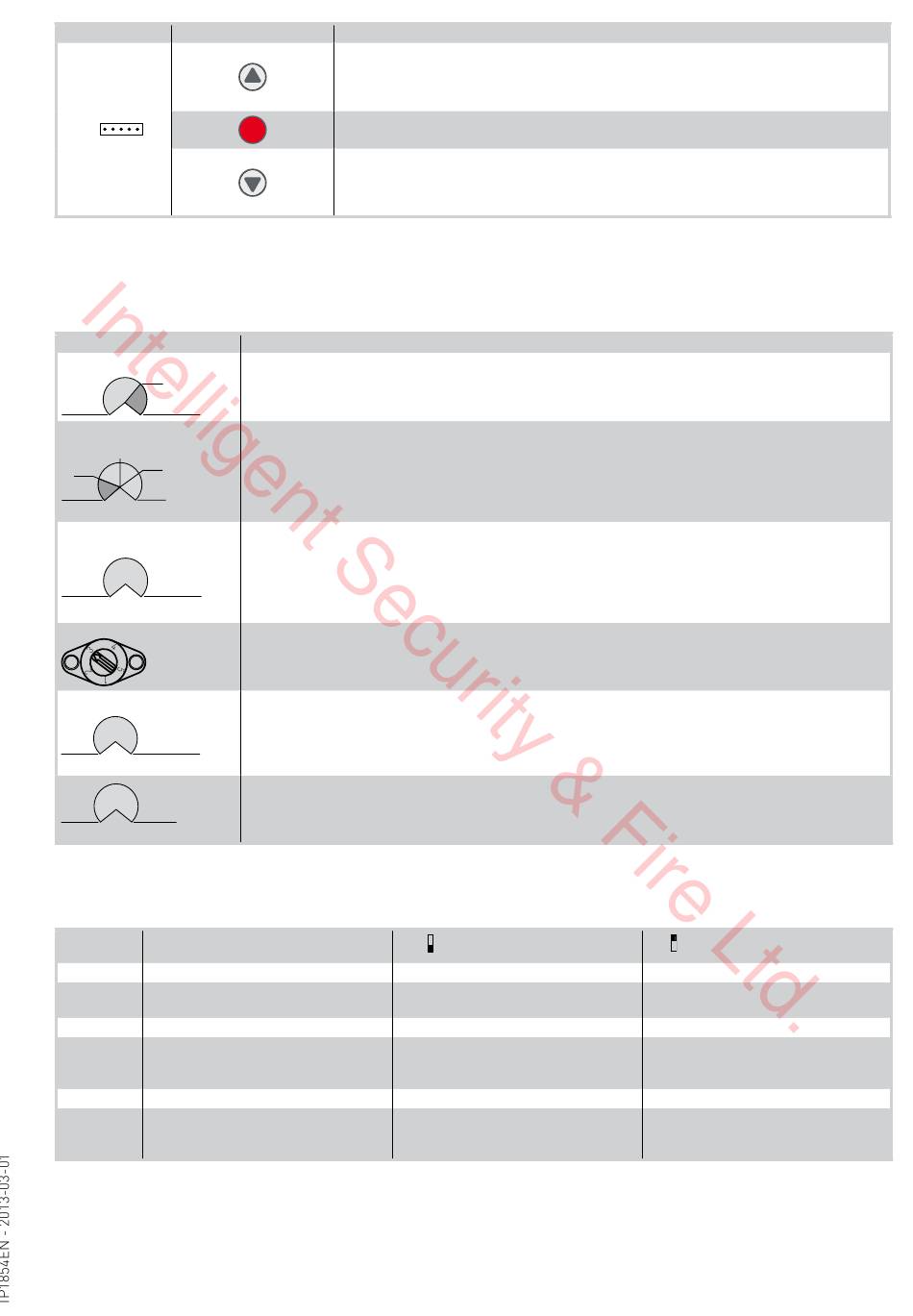

6. Adjustments
6.1 Trimmer
Trimmer
TM
60 s
MIN=10 s MAX=120 s
TR
10 s
20 s
3 s
MIN=0 s
30 s
TC
MIN=0 s MAX=120 s
RF
R1
MIN
MAX=disabled
RP
0 s 30 s
6.2 Dip-switch
DIP Description
DIP1 Radio mode.
DIP2 Direction selection with OM=OFF (one mo-
tor mode).
DIP3 Restore automatic closing time.
DIP4 Automation status at power on.
Indicates how the control panel considers
automation when powered up.
DIP5 Electric lock release.
DIP6 Preflashing set at 3 s.
Description
Membrane push-button panel (PT3).
Starts the opening operation.
Note: to activate the closing operation, connect the connector of the push-button panel to J7
(rotated by 180°).
Membrane push-button panel (PT3).
Causes the blocking of the movement.
Membrane push-button panel (PT3).
Starts the closing operation.
Note: to activate the opening operation, connect the connector of the push-button panel to J7
(rotated by 180°).
Description
Setting the operating time. From 10 to 120 s.
NOTE: with NC limit switch, set TM=MAX.
Setting motor 1 (M1) closing delay time.
When closing, motor 1 (M1) starts after a delay set with TR from 0 to 30 s relative to M2. When opening, motor 2
(M2) starts after a delay of 3 s relative to M1.
If TR=MIN, the door wings start simultaneously.
NOTE: we recommend setting TR=MIN with non-overlapping door wings, and setting TR>3 s with overlapping door
wings.
Setting automatic closing time. From 0 to 120 s.
With DIP3=OFF, once a safety switch has been activated, the counter starts as soon as the safety switch is released
(for example, after passing through the photocells), and lasts for a period of time set with TC (50%).
With DIP3=ON, the counter starts when automation is opened and lasts for the entire duration set with TC (100%).
NOTE: after the activation of the stop command, once contact 1-9 has closed again, automatic closing is only ena-
bled after a total, partial or step-by-step opening command.
Power setting.
Sets voltage supplied to motor (1=MIN / 5=MAX).
Setting obstacle thrust.
The control panel is equipped with a safety system that stops motion if an obstacle is encountered during an opening
operation and either stops or reverses motion during a closing operation.
R1=MIN gives maximum obstacle sensitivity (minimum thrust).
R1=MAX disables detection (maximum thrust).
Setting motor 1 (M1) partial aperture.
From 0 to 30 s.
OFF
Step-by-Step.
Opens towards right.
50%
Open.
NOTE: with a limit switch installed, prefera-
bly set DIP4=OFF.
Disabled.
Disabled during opening.
Enabled only with automatic closing and
with TC setting greater than 3 s.
7
ON
Opening.
Opens towards left.
100%
Closed.
NOTE: if the automatic closing function is
not used, preferably set DIP4=ON.
Enabled.
Enabled for both opening and closing.
