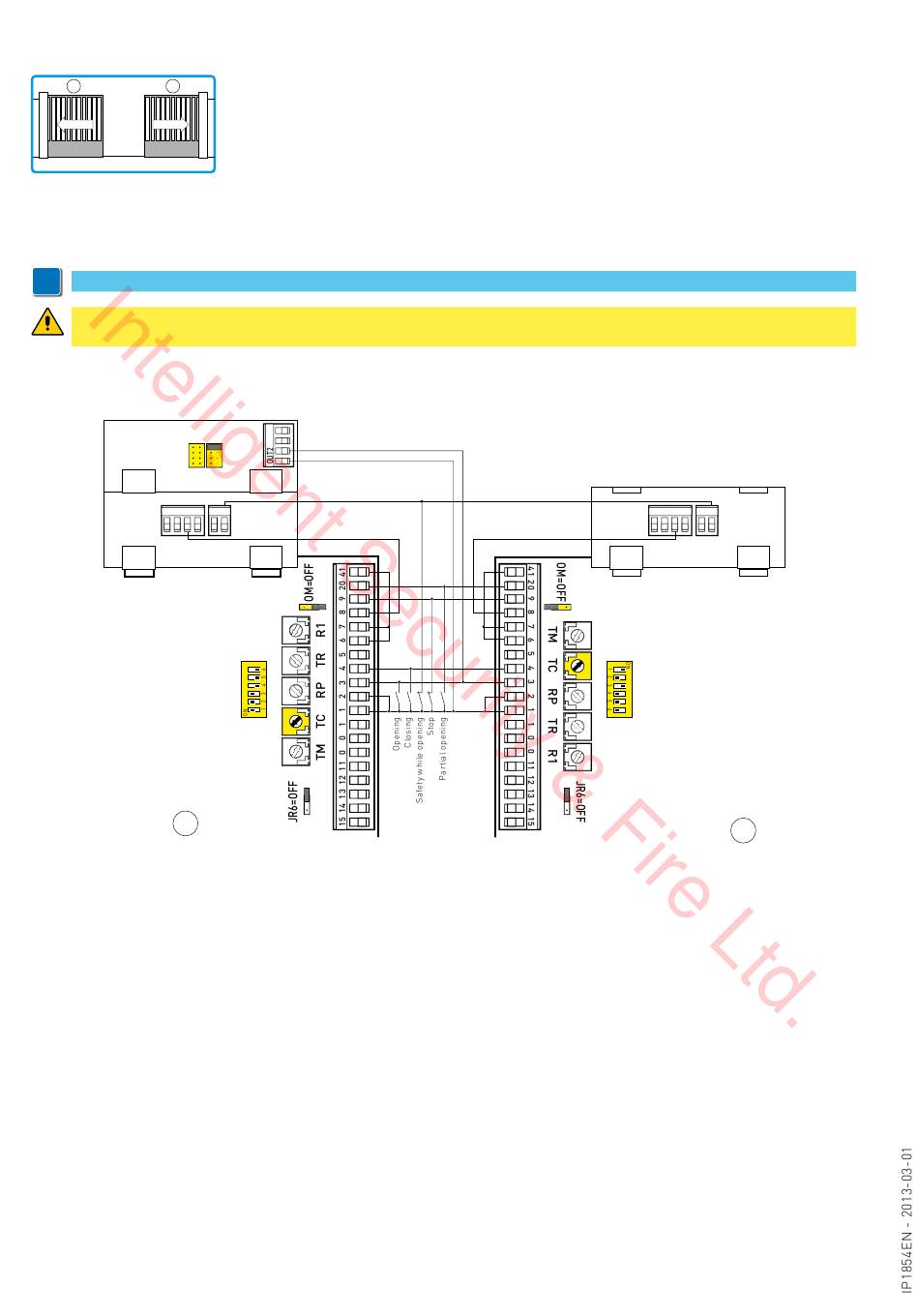

13. Example of automation in parallel
A B
The two automations [A] and [B] can be operated in parallel by making the connections indicated in the figure.
Commands 1-3 and the remote controls (with DIP1=ON) are equivalent to a total opening command.
Automatic closing is obtained by adjusting the TC trimmer not at the maximum and in the same position on both control panels.
i
N.B.: the opening and closing movements are not synchronised, including reopening after activation of the photocells.
WARNING: in the absence of safety edge SOFA1-SOFA2, connect commands 1-8 to the SWT card.
Commands 41-6 and 41-7 can only be connected on the respective control panel.
BIXLR22
JR1 JR2
SWT
0 6 8 41 6 8
LOGICM A
14
SWT
0 6 8 41 6 8
LOGICM B
