- Page 1 APIX6T ASSEMBLY INSTRUCTIONS...
- Page 2 All rights reserved by Music & Lights S.r.l. No part of this instruction manual may be reproduced in any form or by any means for any commercial use. In order to improve the quality of products, Music&Lights S.r.l. reserves the right to modify the characteristics stated in this instruction manual at any time and without prior notice.
-
Page 3: Table Of Contents
APIX6T TABLE OF CONTENTS Safety General instructions Warnings and installation precautions General information 1 Introduction 1. 1 Description 2 Installation 2. 1 Mechanical Requirements 2. 2 Electrical Requirements 2. 3 System Requirements 3 System 3. 1 Brief Introduction 3. 2 Key Benefits 3. -
Page 4: General Instructions
APIX6T WARNING! Before carrying out any operations with the unit, carefully read this instruction manual and keep it with cure for future reference. It contains important information about the installation, usage and maintenance of the unit. SAFETY General instruction • The products referred to in this manual conform to the European Community Directives and are there- fore marked with . -
Page 5: General Information
APIX6T • If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. • If your device fails to work properly, discontinue use immediately. -
Page 6: Introduction

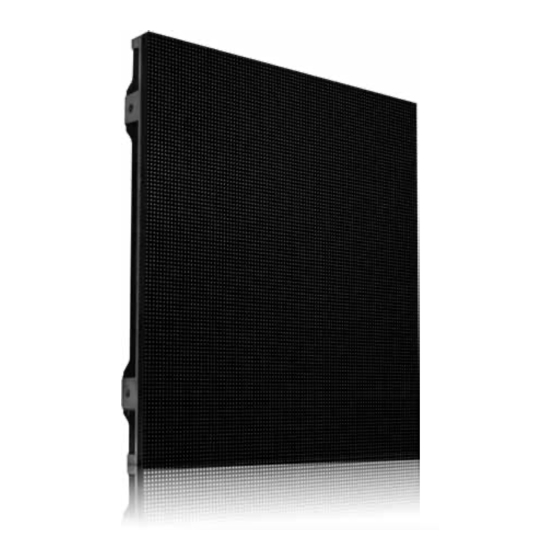

- 1 - INTRODUCTION 1.1 DESCRIPTION AlphaPIX6T is a LED module for the creation of ledscreens with 6,6 mm pixel pitch, ideal for video screen- ing, pictures and backgrounds for medium viewing distances from ledwall surface. The architecture of AlphaPIX6T is conceived with 640x720 mm module size, featuring 10368 SMD Full- Color LEDs for an impressive light output (up to 5500 NIT, suitable for day-light environments). - Page 7 APIX6T • LED life span: >100’000h • Colours: >4,4 trilioni through RGB mixing • Grayscale: 16 bit (16’384 level) • Refresh rate: ≥ 1’920 Hz • Colour calibration through PC software • Input video signals: AV, S-Video, VGA, DVI, HDMI, SDI, DP • Viewing angle: 140°...
- Page 8 APIX6T Technical specification LED Type High-power SMD2727 FullColor black face Pixel Pitch 6.6 mm 22’500 pixels/m Pixel Density Viewing Angle (H/V) 140°H/70°V Brightness 5’500 nit Color Depth 8192 bytes Drive Mode 1/6 scan, constant current Grey Level 16 bit Refresh frequency ≥1920 Hz Brightness Adjustment Manual/Auto/Programmable...
-
Page 9: Mechanical Requirements
8 – 20 tiles. Protect every power cable by a circuit breaker or fuses rated 16 A / 250 VAC (15 A / 110 VAC in the USA and Canada). PROLIGHTS provides a range of power distributor to satisfy the demands of your LED display. -
Page 10: System Requirements
3. SYSTEM INTRODUCTION 3.1 Brief Introduction APIX6T is the LED indoor display product of PROLIGHTS that uses die-casting aluminum frame with CNC high precision machining techniques. With it‘s compact, light and handy exterior, the LED tile is easy to install and disassemble. As the tile dimension is of very high precision, so the whole... -
Page 11: Key Benefits
APIX6T 3.2 Key Benefits • High resolution and high pixel density, reproducing reality of high definition video • Uniform color and high contrast, ensuring clear and sharp picture • High precision die-casting aluminum tile, achieving high flatness and seamless matching of the whole display • Fan design with good heat dissipation, achieving noise-free • Light and slim tile, easier to handle and transport... -
Page 12: Display Components
APIX6T Number Name Function /Explanation Power Distribution System Components Supply power for LED screen (Support power supply remote Main power distributor control) Power distribution box Support power supply remote control Lightning arrester International brand, to avoid lightning Power cable Comply with international standards Peripheral Devices Video processor Support for peripheral video source... -
Page 13: Module
APIX6T Side fast lock Module 1. APIX6T tile has 6 grids for 6 modules to be fixed in. Each grid has 8 screws to fix one module. The precise positioning ensures the precise position of all modules. Keep screws clean to achieve smooth installation of the modules and avoid seams between tiles and uneven pixel pitches. -
Page 14: Socket And Plug For Power And Data Connection
Both front and back service design. Over the lamps, replaceable masks are equipped to protect the LED lamps and PCB and increase the use life of display. PROLIGHTS choose the best full color SMD LED lamps as materials. Which lead to high uniformity and perfect show effect .The use of black organic silicone makes the black LED lamps darker to improve the contrast of the display significantly. - Page 15 APIX6T 3.9 LED Receiver Card Each APIX6T tile has one receiver card for receiving and transmitting the data of LED display . The functions of the MRV220 receiver card are shown as below: • Power supply: 3.3 - 5.0V • Temperature monitoring(standard feature) • Power supply voltage monitoring(standard feature) • Working status monitoring(standard feature) • 16 RGB data groups output (it can be extended to 32 groups.)
-
Page 16: Suspended Installation
APIX6T 4. APIX6T INSTALLATION 4.1 Suspended Installation Warning: APIX6T display is limited to a height of 20 display tiles and the display surface has to obtain the flatness within a tolerance zone of +/-0.2 mm and keep perpendicular to the reference surface. Setup Process 1. - Page 17 APIX6T 2. Assemble APIX6T tiles line by line , install from middle to side, and from top to bottom keep all truss bars on the same level.
- Page 18 APIX6T 3. Install all the tiles for a whole screen.
-
Page 19: Setup Process Of Standing Installation
APIX6T 4.2 Setup Process of Standing Installation Warning: The height of APIX6T tiles depends on the height of supporting steel structure and the display surface has to obtain the flatness within a tolerance zone of +/-0.2mm and keep perpendicular to the reference surface. - Page 20 APIX6T 2. Assemble APIX6T tiles line by line , install from middle to side, and from bottom to top .keep each line of tiles on the same level. 3. Fix the corners of four adjacent tiles with connecting plates and corresponding screws, make sure fixed fasten to steel structure.
- Page 21 APIX6T 4. Fix all the corners of the APIX6T tiles at the bottom and flanks with connecting plates. Fix the connecting plates to the supporting steel structure at the back of the display. (See the steel structure design and installation image for more details.)
-
Page 22: Data And Power Cabling
APIX6T 4.3 Data and power Cabling Connect power cable and signal cable as below :for it’s design, power cable should be connected line by line, factory original main power cable is 2.5 mm2, for safe use ,each cable limited to connected 10 tiles. -
Page 23: Troubleshooting
APIX6T 5. TROUBLESHOOTING 5.1 Module Problems Problem type Problem description Solution Reason Analysis The lamp is dead or soldering LED lamp Blind lamps Replace the lamp or module is not good The pixel area is black or The driving IC/resistor is bad LED pixel Replace the lamp or module loses color... -
Page 24: Maintenance
2. Before turn off the display system, first turn off the power of LED display, and then turn off the computer. 3. When you are editing video playlist, you had better to keep the LED display closed. 4. When failure appears, first turn off the power of LED display, then contact with service department of PROLIGHTS for technical support. - Page 25 APIX6T...
- Page 26 Place Stamp Here Affrancare Spett.le Music&Lights S.r.l. Via Appia Km 136.200 04020 Itri (LT) Italy "...
- Page 28 MUSIC & LIGHTS S.r.l. Via Appia, km 136,200 - 04020 Itri (LT) - ITALY Phone +39 0771 72190 - Fax +39 0771 721955 www.musiclights.it - email: info@musiclights.it ISO 9001:2008 Certified Company...
