S90-500 CS
Page 4
Quantum™ Identification
®
Frick Controls has over the years, strived to remain on
the cutting edge of microprocessor technology and
development. Because of the ever-increasing speed,
memory, features, and power of microprocessors, Frick
Controls will continue to introduce the latest advancement
in microprocessor control technology.
Our microprocessor family has shared the name
Quantum™, over the past five years. There are currently
four controllers within this family. The first two of these
controllers (known as Quantum™ 1 and Quantum™ 2) are
no longer in production, and as such, will not be further
mentioned in this manual. The two current members in
production of the Quantum™ family are the Quantum™ 3,
and the Quantum™ 4. It is critical to the end user to be
able to identify the differences between these controllers.
Refer to the section in this manual entitled Quantum™ 3
Main Board History and Identification and Quantum™ 4
Main Board History and Identification for additional
information as to how to identify the particular Quantum™
controller that you have.
Throughout this manual, the two different controllers will
be talked about for the most part as one (as they do
function the same). Where there is a difference between
these boards, as in jumpers or wiring, the different models
will be identified by name. This is why it is important for
you to be aware of which Quantum™ board you have.

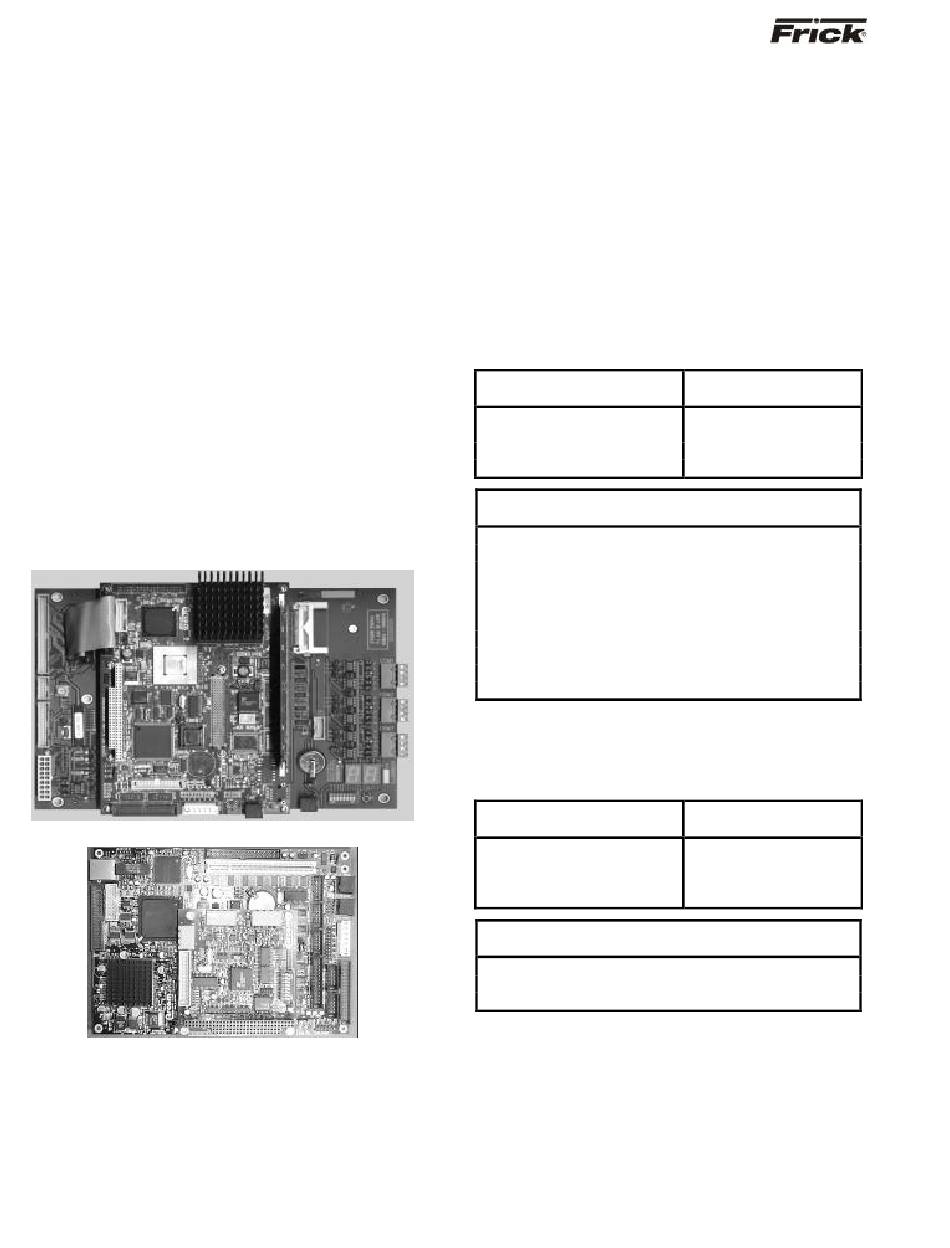

Quantum™ 3
Quantum™ 4
®
FRICK QUANTUM™ ACUair
COMMUNICATIONS SETUP
®
®
CONTROL PANEL
Setting Up the Quantum™ for
Communication
Data communication to and from the Quantum™ can be
through a modem, remote data communications terminal,
programmable controller, or leader computer via either
RS-422, RS-232, or
Quantum™ Com-2 port. Reference the "Main Board
Communications" section for the correct jumpering of
RS-422, RS-232, or RS-485.
drawing of the "Quantum™ Main Board" section to
identify wiring configurations for Com-2.
Com-2 Pinouts for Quantum™ 3
Following is the RS-422, RS-485, and the RS-232 pin
descriptions for communications port 2 (also referred to as
Com-2 or Comm-2):
RS-422 Pinout
(4-Pin Connector)
1 - RX (Receive)
2 + RX (Receive)
3 - TX (Transmit)
4 + TX (Transmit)
RS-232 Pinout
(10-Pin Connector)
1 Data Communication Device
2 Data Set Ready
3 Received Data
4 Request to Send
5 Transmit Data
6 Clear to Send
7 Data Terminal Ready
8 Ring Indicator
9 Ground
10 Not Used
Com-2 Pinouts for Quantum™ 4
Following is the RS-422, RS-485, and the RS-232 pin
descriptions for communications port 2 (also referred to as
Com-2 or Comm-2):
RS-422 Pinout
(4-Pin Connector)
1 - RX (Receive)
2 + RX (Receive)
3 - TX (Transmit)
4 + TX (Transmit)
RS-232 Pinout
(3-Pin Connector)
1 Transmit Data
2 Received Data
3 Ground
RS-485 connections to
Also, reference
RS-485 Pinout
(4-Pin Connector)
1 - RX / - TX
2 + RX / + TX
RS-485 Pinout
(4-Pin Connector)
1 - RX / - TX
2 + RX / + TX
