23. INSTALLING THE HIP RIDGE

23

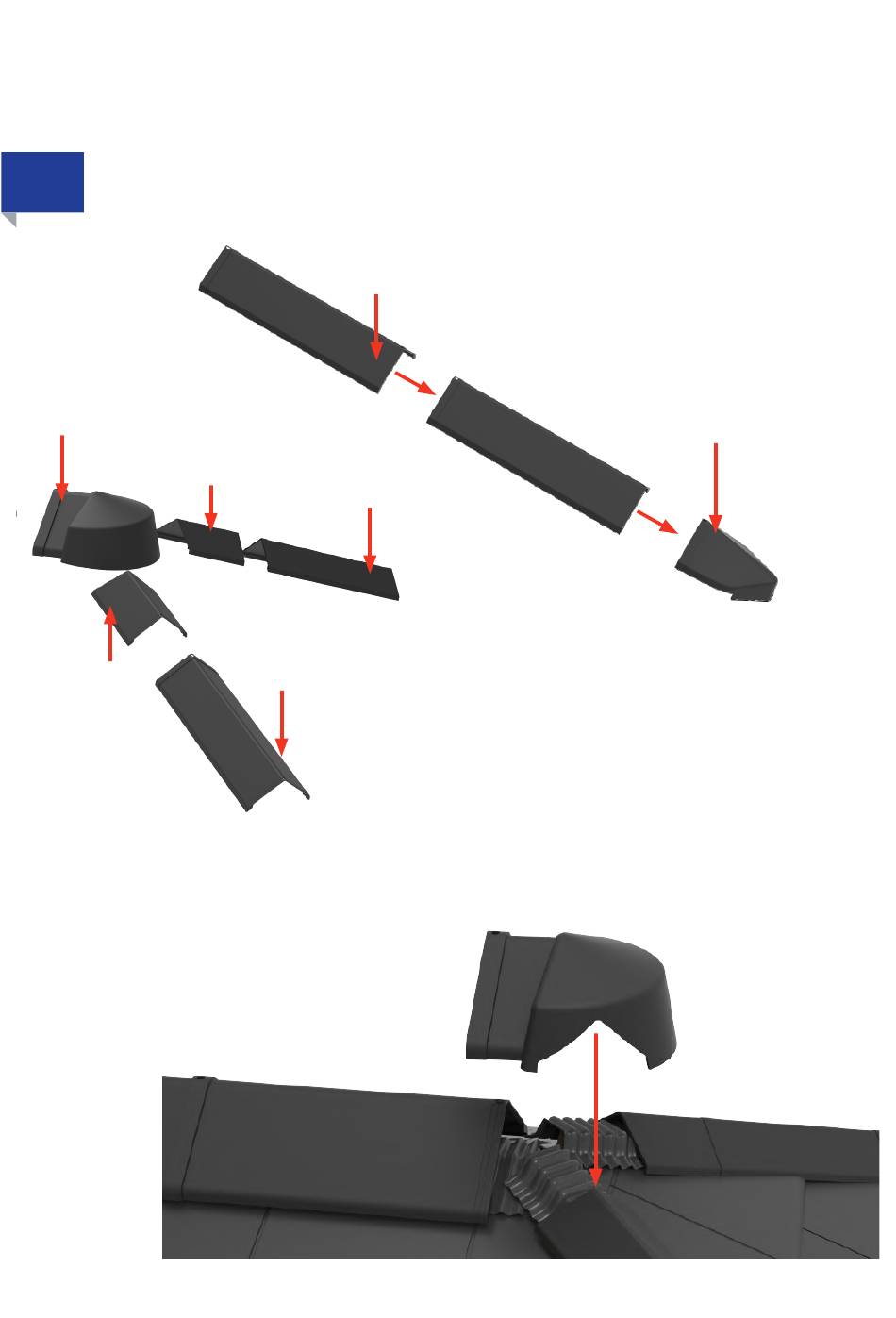

INSTALLING THE HIP RIDGE MOULDINGS
Ridge to apex cover
moulding
Hip cap moulding cut to
suit hip length
Hip cap moulding
cut to suit hip
length
Finally, CUT the ridge to apex cover moulding
so that the hip cap mouldings are covered.
Then secure the ridge to apex cover.
Hip cap moulding
Hip cap moulding
Hip cap moulding
Starting at the end of the hip (low point)
loose fit the hip end cap over the hip roll
and against the tile edges. Then loose fit
the hip cap as shown.
Lay out the hip caps so you can see how long the top caps need
to be so that they FIT UNDER the ridge to apex cover moulding.
Cut these top caps to length then secure the hip caps and hip
end cap moulding.
When fixing cut hip caps drill a hole to accommodate 2 fixings
as per 2 full hip caps.
Lay out and interlock the hip sections together loosely along
the full length of the hip, when correctly aligned permanently
fix into place using the bedded batten as a fixture point for the
90mm length screw fixings required to permanently fix two
sections together.
Hip cap end moulding
