11. INSTALLING THE ENVIROTILES

11

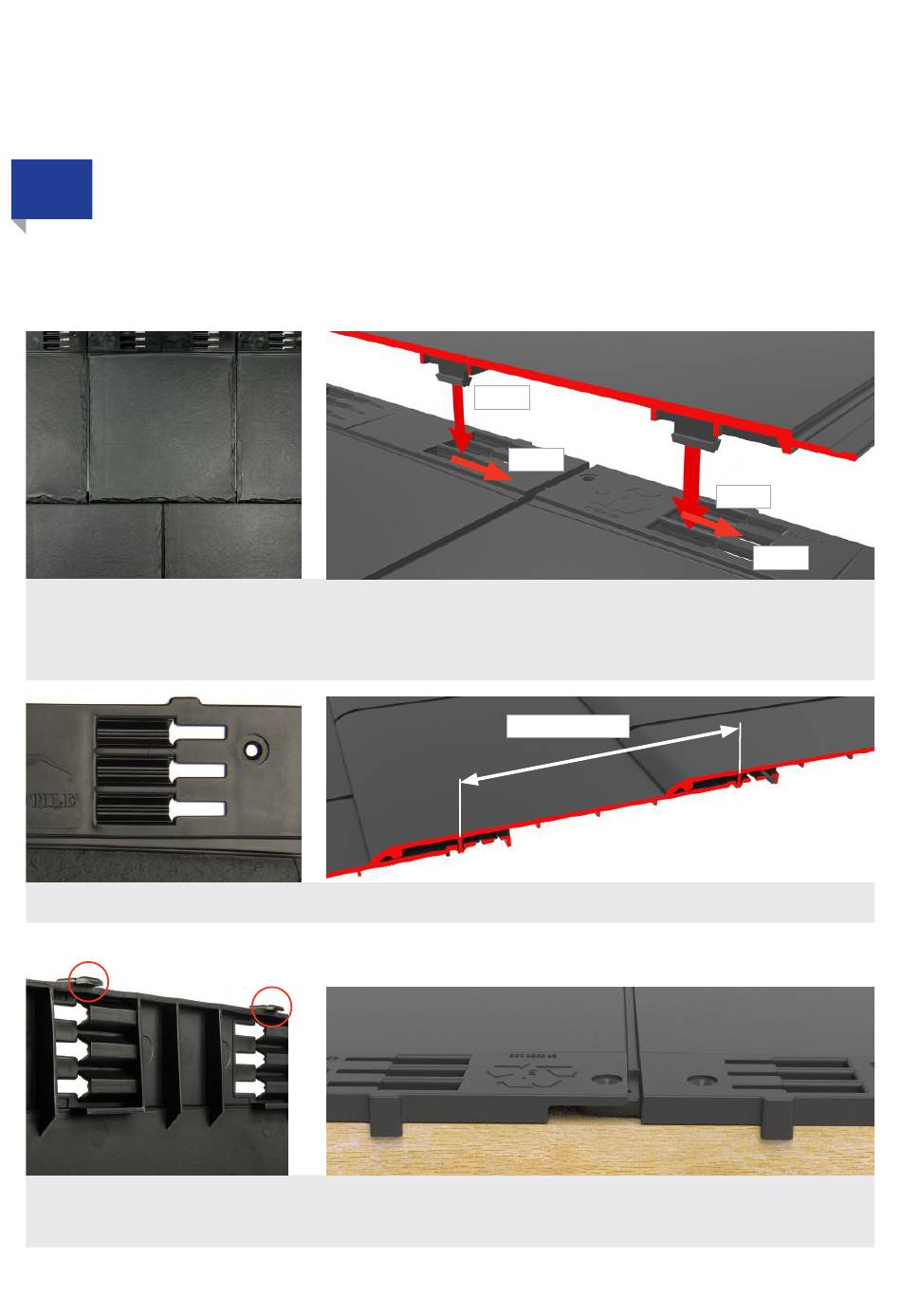

INSTALLING THE ROOF TILES - KEY POINTS
Envirotiles are very easy to install, but it will help to familiarise yourself with the important design features of the tile to ensure that
you understand how the tiles fix together.
Envirotiles are laid using the standard 3 step layout procedure. This is detailed on page 22.
Always lay tiles in half bond.
Ensure that you clip the tiles into the right slots depending on the batten gauge used.
Detachable nib F
Detachable nib F
Each tile has two detachable nibs (F) at the top. These are used to hook the tile over the batten. When a batten has been fitted
out of alignment or there has been some movement after fitting, the installer can break the nibs off as required if they find that
the nibs no longer hook over the batten.
1 8 | E N V I R O T I L E
Envirotiles are clipped together using the two clips on the underside at the
bottom of the tile (E) clipping into the slots at the top of the tile on the course
below (B). Note that the tile must be aligned, then pushed down, then the tile is
slid to the right to lock into the clip. The sliding action also locks the connecting
strip into the adjacent tile slot.
I N S T A L L A T I O N
Clip E
Slot B
250/265/280mm
G U I D E
Clip E
Slot B
