Deeplas ENVIROTILE Installation Manual page 24

12. ABUTMENT WALLS
12.1
INSTALLING TILES AT ABUTMENT WALLS

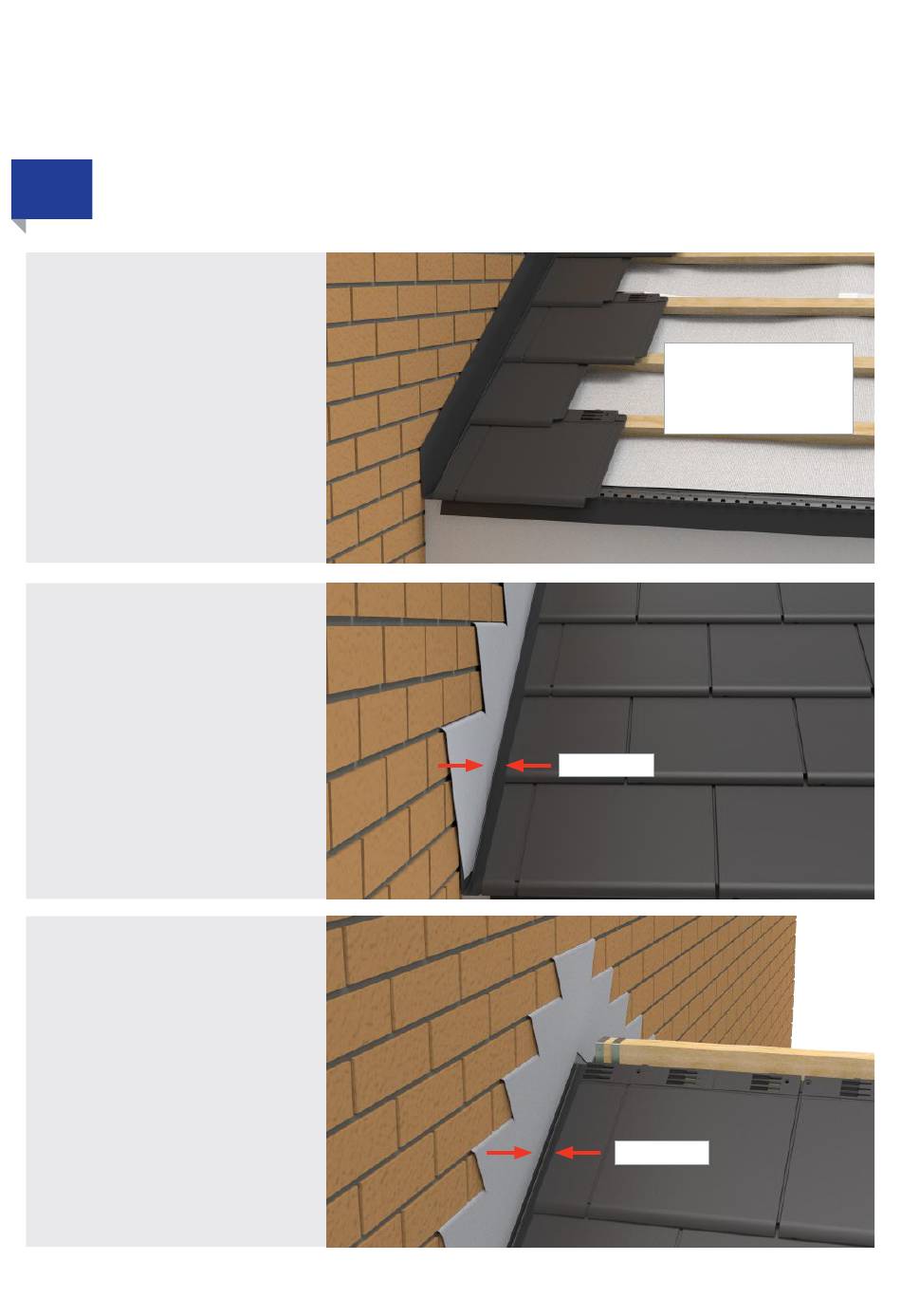

At the abutment wall the end roof tiles
must be screwed down/secured to the
batten in 2 separate places using the 2
fixing points provided.
We recommend use of double tiles for
cutting if required.
Leave a gap of 38mm between the
abutment wall edge and end of roof
tiles.
The 38mm gap between the parapet
wall and roof tile edge provides the
installer with enough room to engage
the patented interlocking features into
the surround tiles.
2 4 | E N V I R O T I L E I N S T A L L A T I O N
38mm gap
G U I D E
Tiles shown for illustration
only. Always fit the roof tiles
using the 3 step approach
shown on earlier pages.
38mm gap
