20. DOUBLE HIPPED ROOF FACES

20
On a roof face with a double hip install
using the same procedure. Trim the last
tile on the left in the same way as the
first tile on the right to the hip beam line,
leaving a ventilation and expansion gap.
Always ensure that the first tile and the
last tile are double tiles.
Once the first course is fitted, securely fix
the tiles to the plywood panels.
Using the same procedures detailed
for gable wall roof types on page 24,
working right to left along the roof face,
fit 3 tiles at a time.
Always securely fix each course before
fitting the tiles on the course above.
Continue fitting 3 tiles in stages until the
roof is covered. On the left hand side
ensure that you always fit a double tile
on the hip angle. Trim the left hand tiles
to the hip beam line, leaving a 20-25mm
gap for ventilation and expansion.
3 4 | E N V I R O T I L E
Double tile
I N S T A L L A T I O N

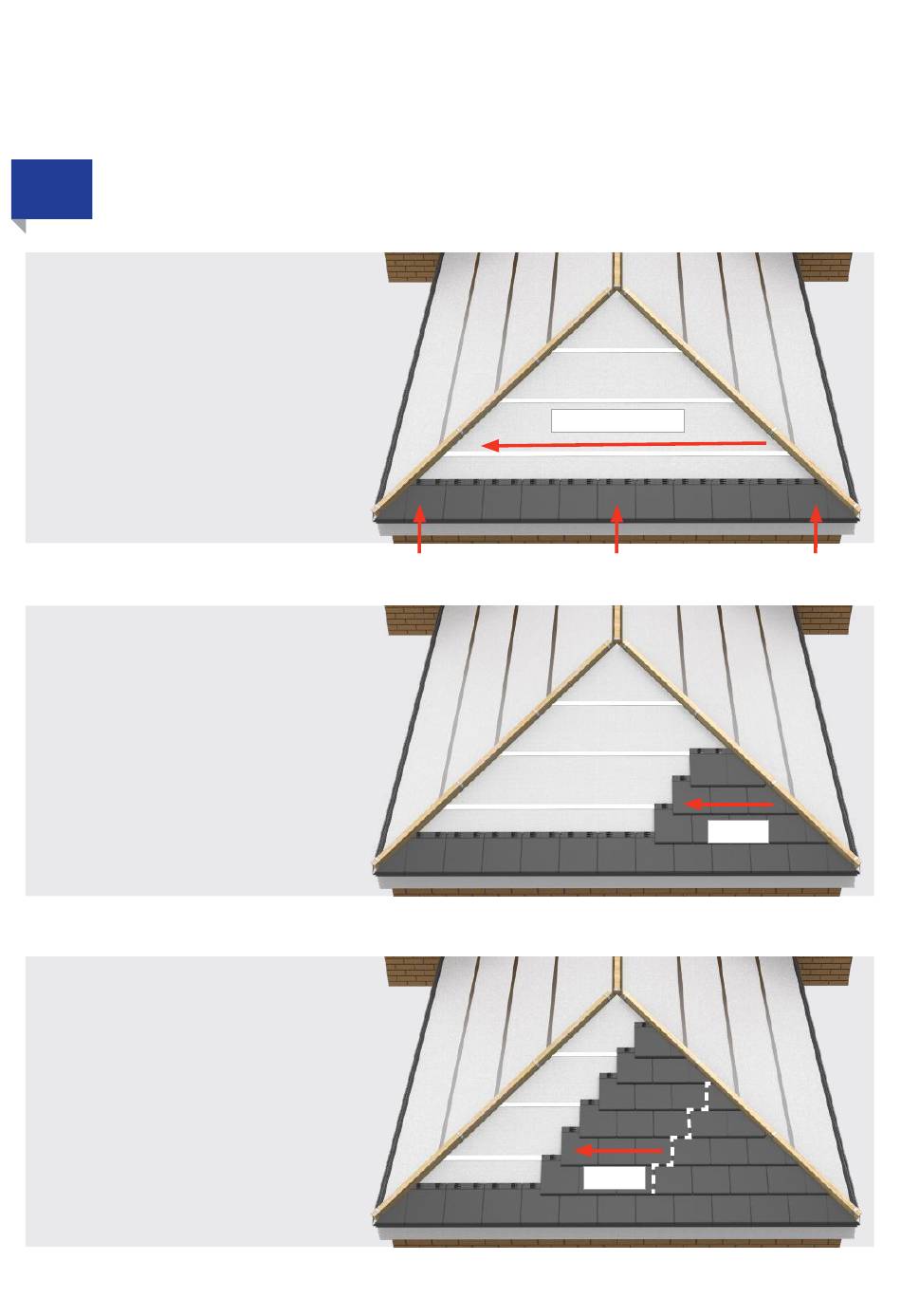

Work right to left
Single or double tiles
3 tiles
G U I D E
Double tile
3 tiles
