11. INSTALLING THE ENVIROTILES
11.1
BEFORE YOU START
Prior to commencement of roof tile installation mark out with a pencil where
the tile pack rows are to be conveniently and evenly placed and spaced.
Provide enough room between the rows of stacked, packed tiles to be able
to work freely and without hindrance.
Only load enough packs of tiles to the roof area that the installer feels will be
used during the period of tile fixing/installation.
Unused packs of tiles should not be left on exposed roof areas overnight or
for any long period as a preventive measure against damage/injury caused by wind loads.
A single pack of single roof tiles covers an approximate area of 0.8m²
Note: During and after the tile installation remove and regularly collect all loose pack strapping and place away from the roof
working area as a preventive trip hazard.

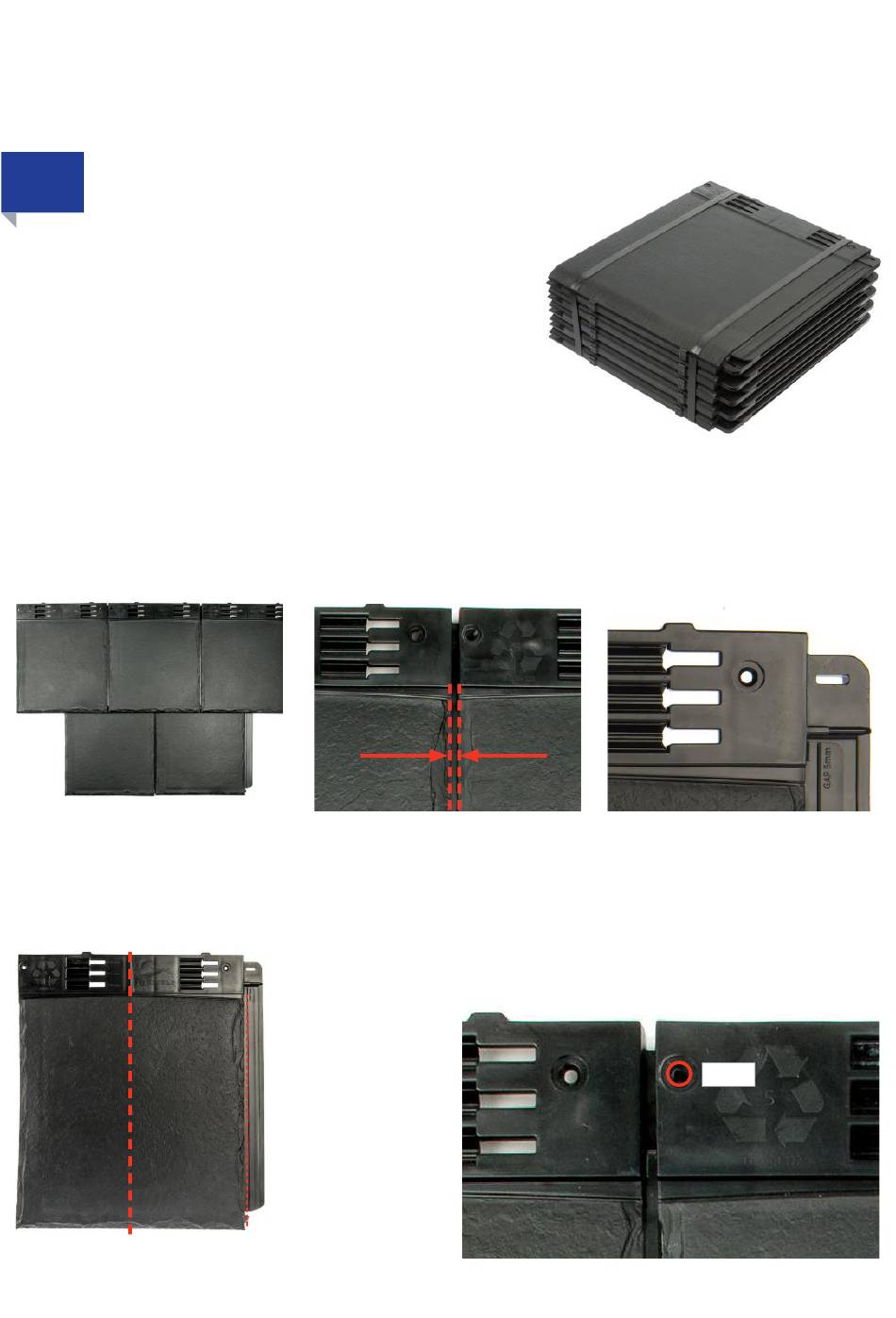

IMPORTANT FEATURES
Always lay the roof system to half bond.
The roof tiles incorporate design features that maintain straight
plumb lines to ensure straight vertical bonding.
Each roof tile has an embossed centre mark line located at the
head of each roof tile this mark provides the correct positioning
for the purpose of cutting half tiles.
Tiles can be cut with a hand saw
Always provide a 5mm gap between tiles
to accommodate expansion/contraction.
Each roof tile is designed to be permanently fixed and secured in
place with neighbouring roof tiles and onto batten at 8 separate
points.
One 32mm x 4.2mm Stainless Steel Pozi Pan Self Tapping
(ENVSCREW32) or driven nail required to fix a single tile. On
gable ends or abutment walls 2 fixings are required per tile.
Tiles can be freely traversed when secured and installed
permanently onto roof areas.
Note: An embossed 5mm marker/guide line
is etched onto the tile interlocking insert
fin to assist the installer with spacing.
