21. VENTILATED RIDGE AND HIP ROLL

21
On a warm roof construction the installer may fit an abutment wall channel or use a simple flashing above or below the tiles.

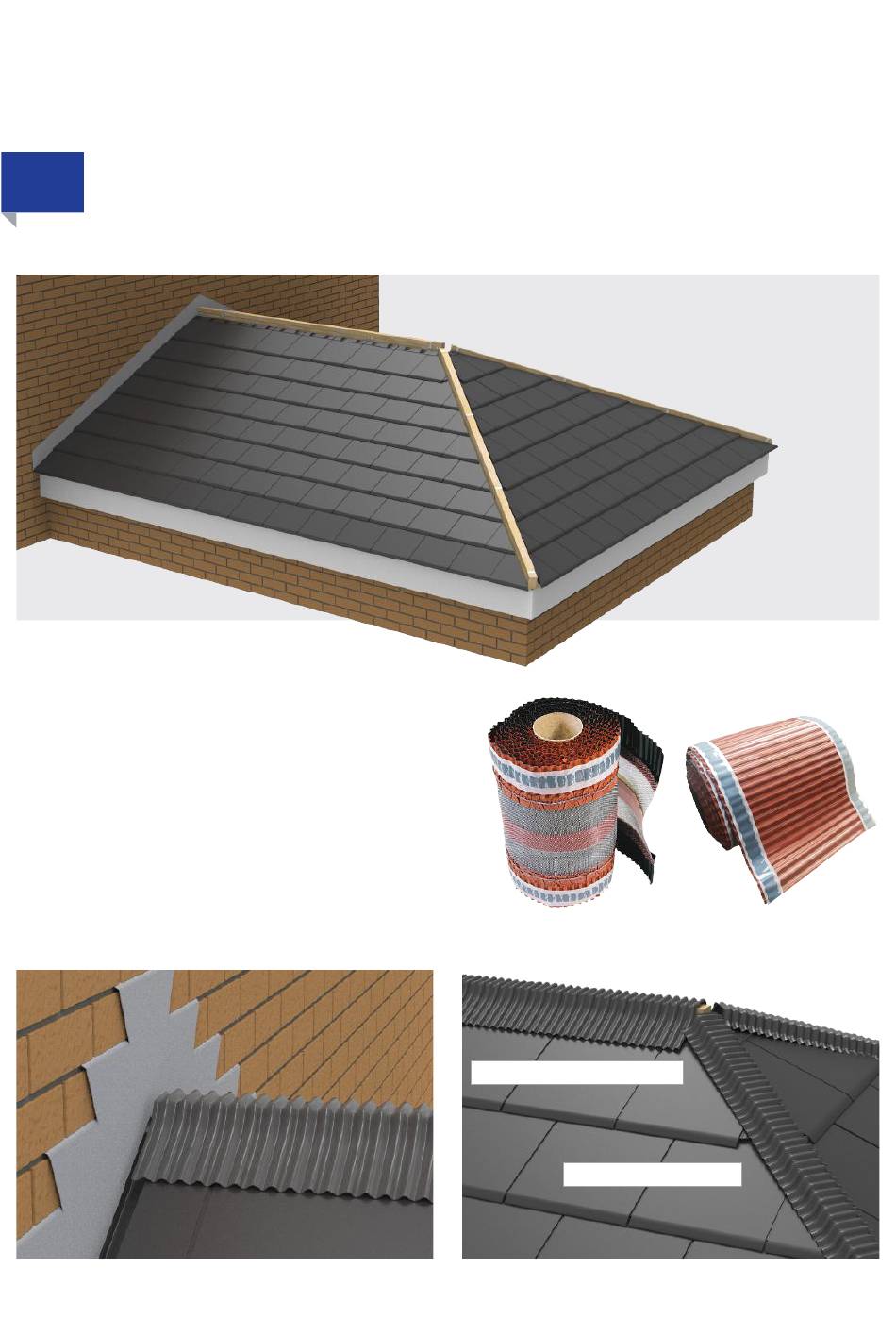

INSTALLING THE VENTILATED RIDGE ROLL
With the roof tiles installed and securely fixed, the next step is
to fit the ventilated ridge roll (ENV330RIDGEROLL) to the main
roof ridge and aluminium hip roll (ENV180HIPROLL) to the hips.
Centre the ridge roll on the top ridge batten and lay over the
ridge ensuring that the tops of the tiles on either side are
covered. Remove the tapes and secure to the tiles.
Repeat for the hip battens and trim to suit.
RIDGE ROLL - HIP ROLL -
At abutment walls run the ridge roll to the flashing. ENV330RIDGEROLL ENV180HIPROLL
Ridge roll - ENV330RIDGEROLL
Hip roll - ENV180HIPROLL
