13. INSTALLING THE RIDGE
13.1
INSTALLING THE RIDGE PRODUCTS
Deeplas supply the dedicated ventilated full ridge system.
Main ridge cap moulding
Starting at the right hand side of the roof, align and loosely fit the ridge cap mouldings over the ventilated ridge roll by interlocking
the ridge sections together. At the gable the end cap envelopes the mitred dry verge before interlocking with the end ridge section

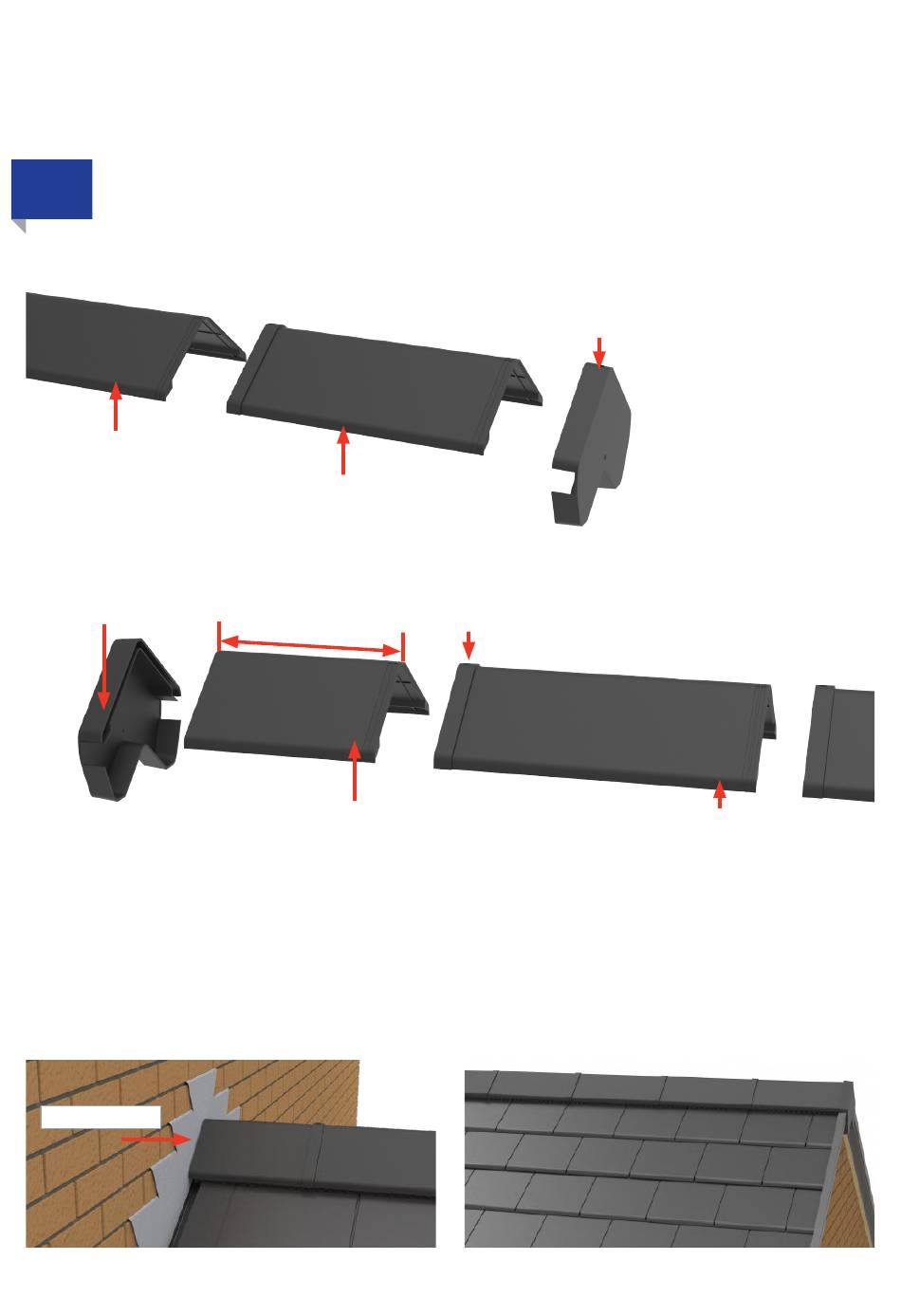

(see illustration).
Gable end cap moulding
Lay out and interlock the main ridge sections together loosely along the full width of the
roof. When correctly aligned permanently fix into place using the bedded batten as a fixture
point for the 90mm x 6.3mm Stainless Steel Pozi Pan Self Tapping (ENVSCREW90) required
to permanently fix two ridge sections together. Start the mechanical screw fixing procedure
from the right hand gable end, using the fixing hole (R) on the apex at each end.
Now cut the left hand ridge cap moulding to length, fit and secure.
At a gable end fit the left hand gable end cap moulding. At an abutment wall cut the ridge
cap moulding so there is a 2-3mm gap between the flashing and the cut edge of the cap.
Allow 2-3mm gap
2 6 | E N V I R O T I L E
Main ridge cap moulding
Cut length (L)
Main ridge cap moulding
cut to suit ridge length
I N S T A L L A T I O N
Gable end cap moulding
Fixing hole (R)
G U I D E
Main ridge cap moulding
If the cut length (L) is less than
half the length of the ridge cap
moulding it is recommended that
you cut two ridge cap mouldings
and space accordingly.
