E Connectors

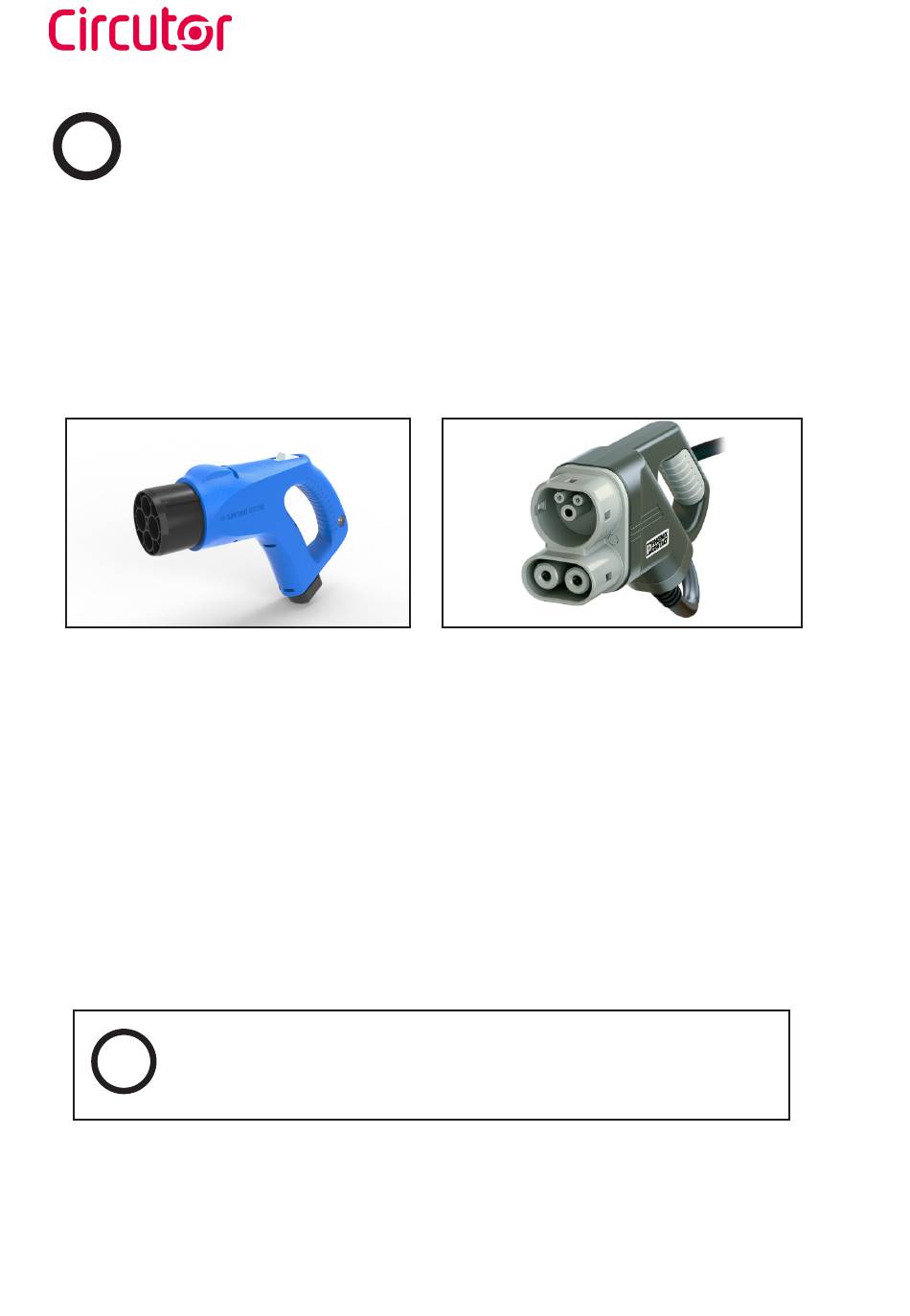

The Charge Point is equipped with two connectors of different load; these can recharge a
large range of vehicles:
• DC (Mode 4): CHAdeMO, Tethered cable, 3.5 meters. Up to 200 A / 100 kW
• DC (Mode 4): Combo 2 (CCS), Tethered cable, 3.5 meters. Up to 375 A / 150 kW
The Charge Point can operate under the following scenarios:
• Only DC CHAdeMO
• Only DC CCS2
• Simultaneous, CHAdeMO and CCS 2 connectors at the same time
Optionally, Charge Point can be configured to work without simultaneity. It is required a
specific configuration file.
?
To obtain the appropriate configuration file please contact CIRCUTOR
Support Department.
