  • Page 1 Solar INSTALLATION GUIDE (M413A01-03-23B)
  • Page 2 Solar Installation Guide...

  • Page 3: Disclaimer

    CIRCUTOR S.A.U. reserves the right to make modifications to the device or the unit specifications set out in this instruction manual without prior notice. CIRCUTOR S.A.U. on its web site, supplies its customers with the latest versions of the device speci- fications and the most updated manuals.
  • Page 4 C O P Y R I G H T I N F O R M AT I O N This document is copyrighted, 2023 by CIRCUTOR S.A.U. All rights are reserved. CIRCUTOR S.A.U. reserves the right to make improvements to the products described in this manual at any time without notice.

  • Page 5: Table Of Contents

    Solar Contents Disclaimer ................................3 Revision log ............................... 3 Contents ................................5 1.- So, hello! ..................................6 2.- Before the installation .............................8 A.- Important safety instructions ......................8 B.- Electrical wiring considerations......................9 3.- Overview ..................................10 4.- Dimensions ................................12 5.- Installation ................................

  • Page 6: So, Hello

    Solar So, hello! This manual provides commissioning information about eHome Solar which has been designed and tested to allow electric vehicle charging according to IEC 61851-1:2017. This document has different sections such as step-by-step installation procedure and technical data.
  • Page 7 Solar Installation Guide...

  • Page 8: Before The Installation

    • Use only CIRCUTOR supplied spare parts. specified in IEC 61851. • Do not modify this device. If modified, CIRCUTOR • Do not use this product if the enclosure or the will reject all responsibility and the warranty will EV connector is broken, cracked, open, or shows be void.

  • Page 9: B Electrical Wiring Considerations

    Solar B Electrical wiring considerations Take into consideration this section before start wiring connections of the Charge Point. 1 . - E L E C T R I C A L P R O T E C T I O N S The Charge Point may not include elements of electrical protection.

  • Page 10: Overview

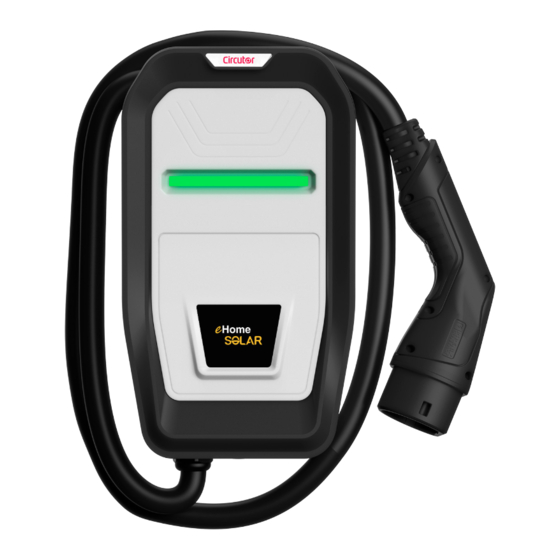

    S H O R T D E S C R I P T I O N eHome Solar is specially designed to be easily installed both in outdoor and indoor private parking lots, in order to charge all EV models on the market in MODE 3 (according to the European standard IEC 61851-1), by simply connecting its cable with a Type 1 or Type 2 connector.
  • Page 11 Solar Description Circutor Logo Cable + Connector Status LED bar Frame Front cover Installation Guide...

  • Page 12: Dimensions

    Solar Dimensions Measures in mm Installation Guide...
  • Page 13 Solar Measures in mm Installation Guide...

  • Page 14: Installation

    Solar Installation Material: Screws, sealing washers and plastic anchors are not included. The installation kit has been tested on a concrete wall. For the unit to be securely fixed in such conditions, it is recommended to use: 3 x Inox A2 wall screws: Ø3x45...

  • Page 15: A Space Requirement

    Solar A Space Requirement When installing the unit, some space shall be reserved for usability, maintenance and safety reasons. Please comply accordingly to your country specifications. The next picture shows the recommended minimum distances: Min. 600 / Max. 1200...

  • Page 16: B Opening The Unit

    Solar B Opening the Unit 1.- Remove the screw at the bottom of the box. 2.- Using a screwdriver, put it into the indicated marks, at the bottom of the box, and start removing the frame doing click at the bottom.
  • Page 17 Solar 3.- Grabbing the frame with the hand by the lower part, pull and take it off totally, from the bottom to the top. To make it easier help yourself with the screwdriver while pulling the frame off. 4.- Remove the six screws of the front part by using a screwdriver and take out the front part of the enclosure.

  • Page 18: C Power Cable Insertion

    Solar C Power Cable Insertion There are two possibilities to insert the electric wires: 1) Breaking out the cable insertion opening on the rear of the housing. 2) Using the cable insertion opening at the bottom of the housing.
  • Page 19 Solar Be careful of not damaging any of the internal components when breaking out the rear cable insertion opening. The data cable could be installed using the same pipe used for the power supply. In this case, it is recommended to use FTP Cat5e or S/ FTP Cat 5e.

  • Page 20: D Positioning

    Solar D Positioning Make holes for fastener screws. Tap drill M6 Min. 600 / Max. 1200 Measures in mm Front view 1.- Mark 3 holes taking into account the picture measurements (also written on the rear face of the box).

  • Page 21: E Fixing

    Solar E Fixing 1.- Use a screwdriver to fix the Charge Point on the wall (recommended screw dimensions: 3x45mm). 2.- Use only the Charge Point holes indicated in the above picture to fix the Charge Point on the wall.

  • Page 22: F Electrical Installation

    The DC fault current is measured by a dedicated device installed in the eHome Solar which ensures the disconnection of the supply in case of DC fault current above 6 mA, for this reason just a Type A RCD upstream the Charge Point is required.

  • Page 23: G Wiring

    Solar G Wiring Perform the 230V ~ single-phase connections using the quick connection terminal. To do this, the cable with the ferrule must be inserted inside the terminal block. This will automatically pinch the cable thus preventing it from being disconnected.

  • Page 24: H Current Limit Selector

    Dip-Switch, the equipment will limit the current to a certain maximum amperage value. To limit the power of the eHome Solar, the table on the next page must be followed: The Dip-Switch is set to position 0 by default. This must be changed during commissioning for correct operation of the device.
  • Page 25 Solar DIP-SWITCH Current Limit (A) Position Whenever the position of the Dip-Switch is changed, to apply the changes, the equipment must be restarted by disconnecting the power supply. Installation Guide...

  • Page 26: I Genion One

    Solar I Genion One Genion One is a device that allows the use of energy from photovoltaic panels. It has three charging modes: • Just Green Mode: this mode makes the charging of the vehicle just by using solar surplus.

  • Page 27: J Data Modbus Rs-485 Connection

    Solar J Data Modbus RS-485 Connection Perform the Modbus RS485 data connection in the terminal shown in the picture below. Note: The Modbus RS485 provide the following terminals (A+, B-, 0). Do not forget to connect the ground cable (0 Terminal) and link to its corresponding earth terminal.

  • Page 28: K Closing The Charge Point

    Solar K Closing the Charge Point Screw the 6 bolts from the front cover in order to close the Charge Point. Screws are securely tightened at 1 Nm. Be aware of the cables between the cover and the base while closing the Charge Point.

  • Page 29: L Verification

    Solar L Verification 1 . - P O W E R I N P U T Before proceeding, make sure voltage is present in the terminal blocks. 2 . - C A R E F U L W I T H T H E W I R E S Before closing the unit, keep in mind all cables should remain inside.

  • Page 30: Technical Data

    Solar Technical Data AC INPUT Models eHome Solar T2C32, eHome Solar T2S32 AC Power supply 1P + N + PE 230 V~ ± 10% Voltage 32 A Nominal input current 7,4 kW Nominal input power AC OUTPUT Mode 3...
  • Page 31 Solar ELECTRICAL DATA Frequency 50 Hz / 60 Hz Type(s) of system earthing for TT / TN-S system which the assembly is designed Protections Overtemperature Intelligent recharge manager with solar Additional features energy (Genion One) Installation Guide...

  • Page 32: Modbus Register Map

    Solar Modbus register map eHome Solar Address Mode Size Register name Values Description Communications (16bits) AddDevice 1...254 Peripherical Address. (16bits) ConfigComs 0...4 Communication Configuration. Modo 3 charger Cable Vehicle intensity. (16bits) Proximity (InRCC) "A","B","C", (16bits) StateEV E.V State of Charge.
  • Page 33 Solar eHome Solar Address Mode Size Register name Values Description Temperature Internal value of eHome (16bits) Temperature -20º...+80º Link temperature. Temperature calibration. (16bits) CalTemperature -20º...+80º Assign room temperature. Activate intensity reduction by (16bits) DeratingFuntion temperature. Value 1: Active intensity reduction.
  • Page 34 Solar Installation Guide...

  • Page 35: Need Help

    CIRCUTOR guarantees its products against any manufacturing defect for two years after the delivery of the devices. CIRCUTOR will repair or replace any defective factory product returned during the guar- antee period. • No returns will be accepted and no device will be repaired or replaced if it is not accompanied by a report indicating the defect detected or the reason for the return.
  • Page 36 CIRCUTOR S.A.U. Vial Sant Jordi, s/n 08232 - Viladecavalls (Barcelona) Tel.: (+34) 93 745 29 00 - Fax: (+34) 93 745 29 14 www.circutor.com central@circutor.com...
