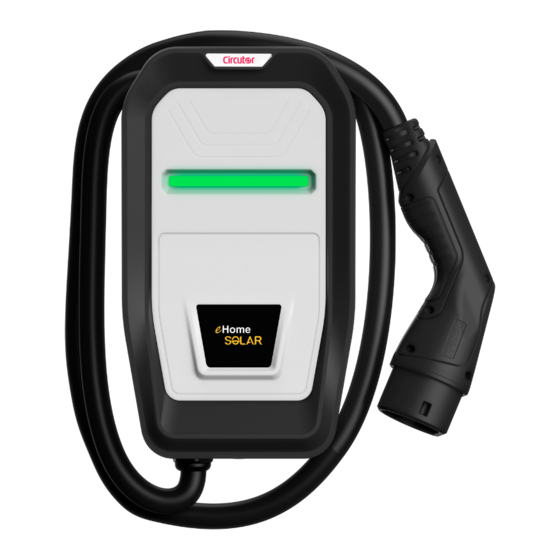

eHome Solar
INSTRUCTION MANUAL
(M413B01-03-23A)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eHome Solar and is the answer not in the manual?

Questions and answers

Related Manuals for Circutor eHome Solar

Summary of Contents for Circutor eHome Solar

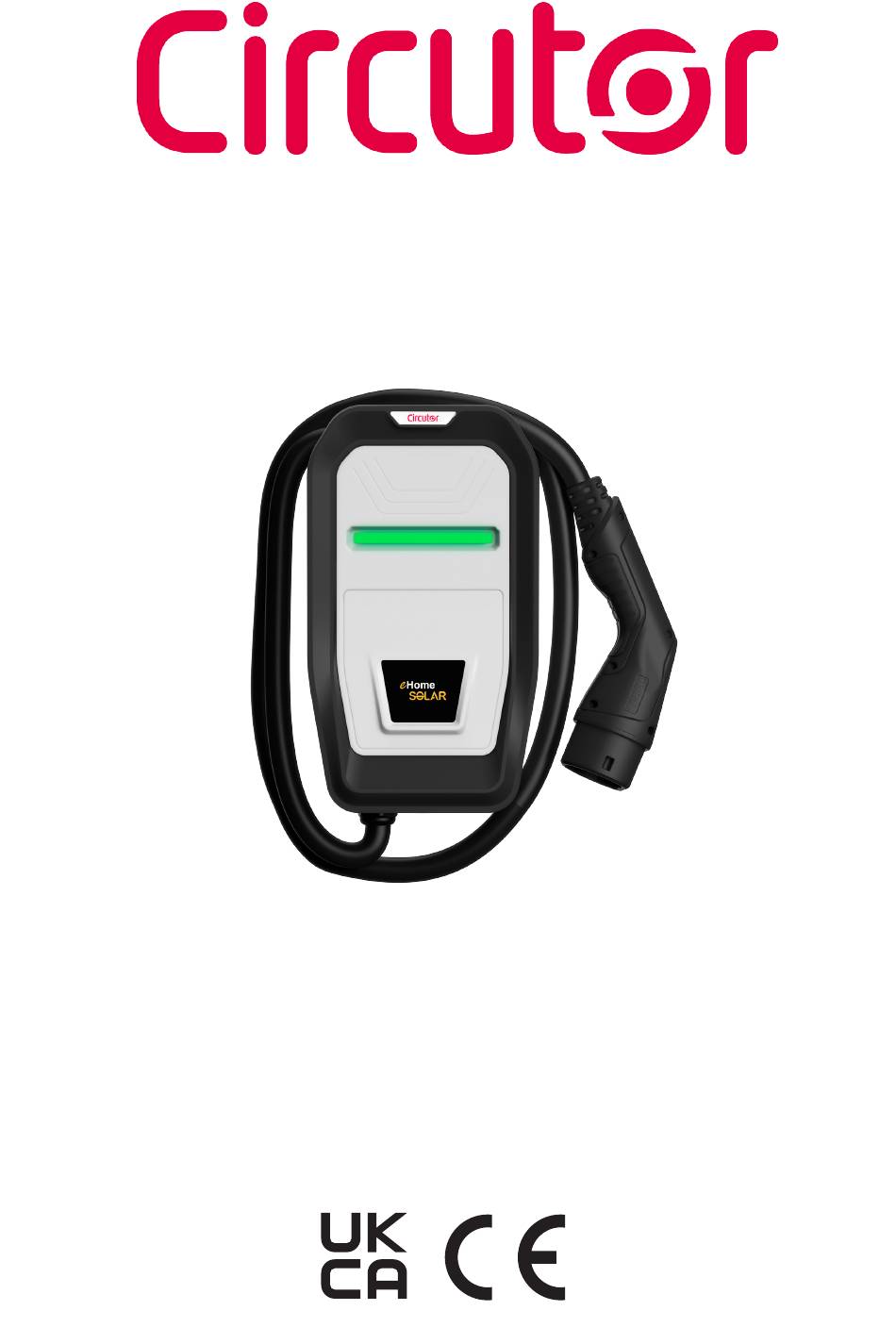

  • Page 1 Solar INSTRUCTION MANUAL (M413B01-03-23A)
  • Page 2 Solar Instruction Manual...

  • Page 3: Disclaimer

    CIRCUTOR S.A.U. reserves the right to make modifications to the device or the unit specifications set out in this instruction manual without prior notice. CIRCUTOR S.A.U. on its web site, supplies its customers with the latest versions of the device speci- fications and the most updated manuals.
  • Page 4 C O P Y R I G H T I N F O R M AT I O N This document is copyrighted, 2023 by CIRCUTOR S.A.U. All rights are reserved. CIRCUTOR S.A.U. reserves the right to make improvements to the products described in this manual at any time without notice.

  • Page 5: Table Of Contents

    Solar Contents Disclaimer ................................3 Revision log ............................... 3 Contents ................................5 1.- So, hello! ..................................6 A.- Important safety instructions ......................7 2.- Overview ..................................8 3.- Operating Instructions ............................10 A.- Charging procedure ........................... 10 B.- Status LED light errors ........................12 4.- Technical Data ................................

  • Page 6: So, Hello

    Solar So, hello! This manual provides information about the usability of the eHome Solar which has been designed and tested to allow electric vehicle charging according to IEC 61851-1:2017. This manual contains all the necessary information for a safe use.

  • Page 7: A Important Safety Instructions

    • Use only CIRCUTOR supplied spare parts. specified in IEC 61851. • Do not modify this device. If modified, CIRCUTOR • Do not use this product if the enclosure or the will reject all responsibility and the warranty will EV connector is broken, cracked, open, or shows be void.

  • Page 8: Overview

    S H O R T D E S C R I P T I O N eHome Solar is specially designed to be easily installed both in outdoor and indoor private parking lots, in order to charge all EV models on the market in MODE 3 (according to the European standard IEC 61851-1), by simply connecting its cable with a Type 1 or Type 2 connector.
  • Page 9 Solar Description Circutor Logo Cable + Connector Status LED bar Frame Front cover Instruction Manual...

  • Page 10: Operating Instructions

    1 . - G R E E N F I X B A R S TAT U S The eHome Solar has a status LED beacon. When it is in green color, it means that the unit is available and ready to start the charge.
  • Page 11 B L U E D Y N A M I C B L I N K I N G L E D S TAT U S The eHome Solar starts the charge process. While charging the EV, the LED light bar will be flashing continuously.

  • Page 12: B Status Led Light Errors

    In this last case, the Charge Point starts charging when the operating temperature is reached again. In the following sections it will be explained how the eHome Solar indicates the above mentioned errors and the actions taken by the Charge Point.
  • Page 13 Solar 4 . - P R O X I M I T Y E R R O R When the Charge Point is connected to the EV, a Proximity short-circuit to earth may occur. Then, the status LED light bar turns into red and flashes in a sequence of three blinks.

  • Page 14: Technical Data

    Solar Technical Data AC INPUT Models eHome Solar T2C32, eHome Solar T2S32 AC Power supply 1P + N + PE 230 V~ ± 10% Voltage 32 A Nominal input current 7,4 kW Nominal input power AC OUTPUT Mode 3...
  • Page 15 Solar ELECTRICAL DATA Frequency 50 Hz / 60 Hz Type(s) of system earthing for TT / TN-S system which the assembly is designed Protections Overtemperature Intelligent recharge manager with solar Additional features energy (Genion One) Instruction Manual...
  • Page 16 Solar Instruction Manual...

  • Page 17: Need Help

    CIRCUTOR guarantees its products against any manufacturing defect for two years after the delivery of the devices. CIRCUTOR will repair or replace any defective factory product returned during the guar- antee period. • No returns will be accepted and no device will be repaired or replaced if it is not accompanied by a report indicating the defect detected or the reason for the return.
  • Page 18 CIRCUTOR S.A.U. Vial Sant Jordi, s/n 08232 - Viladecavalls (Barcelona) Tel.: (+34) 93 745 29 00 - Fax: (+34) 93 745 29 14 www.circutor.com central@circutor.com...
