Spraying Systems Co TeeJet Technologies BoomPilot Installation Manual page 5

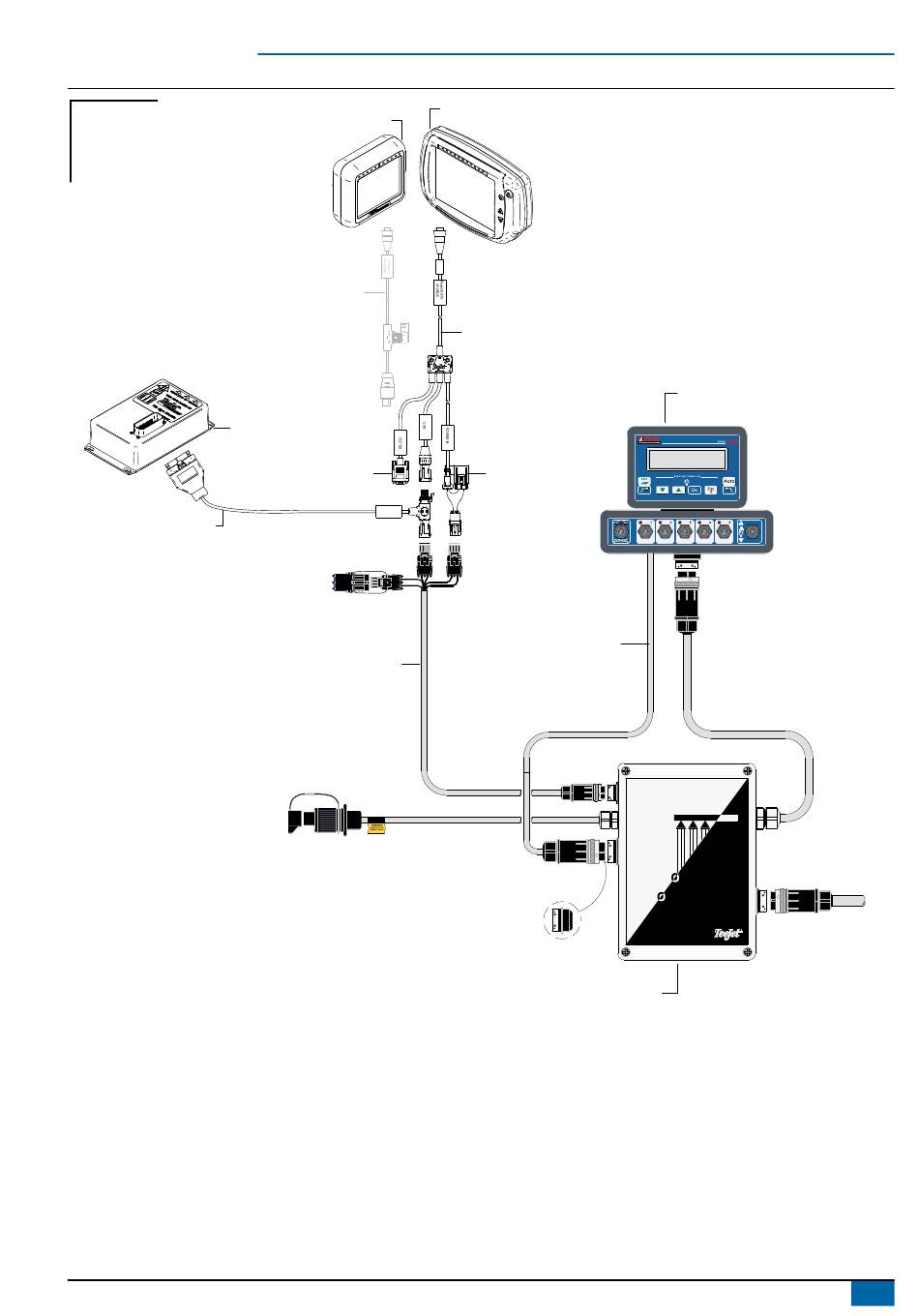

Figure 1: System diagram
Existing system
Not needed
BoomPilot
Optional accessory
45-05625 Power cable, COBO
(included with Matrix Pro kits)
NOT NEEDED WITH BOOMPILOT
Tilt gyro
module (TGM)
TGM harness
to Power connector
from ABSC adapter box
Matrix Pro 840
Matrix Pro 570
45-05845 3.3 m
Power/CAN/data cable
(included with FieldPilot
and BoomPilot kits)
to RS-232
CAN
A B B A
199-263
BoomPilot harness
Adapter cable end cap
(To be mounted when
spraying without ABSC)
10A fuse
ARAG 180 adapter cable
903-330, 4 sections
903-331, 5 sections
AUT
B
CONTROL
902-363
ABSC adapter box
BoomPilot
ARAG 180 controller
Machine connector
(from ABSC box)
MATIC
OM SECTION
Machine connector
(from sprayer)
020-042-UK R1
®
3
