Spraying Systems Co 1550+ AutoJet Owner's Manual

Modular spray system
Hide thumbs Also See for 1550+ AutoJet:
Table of Contents

Advertisement

Quick Links

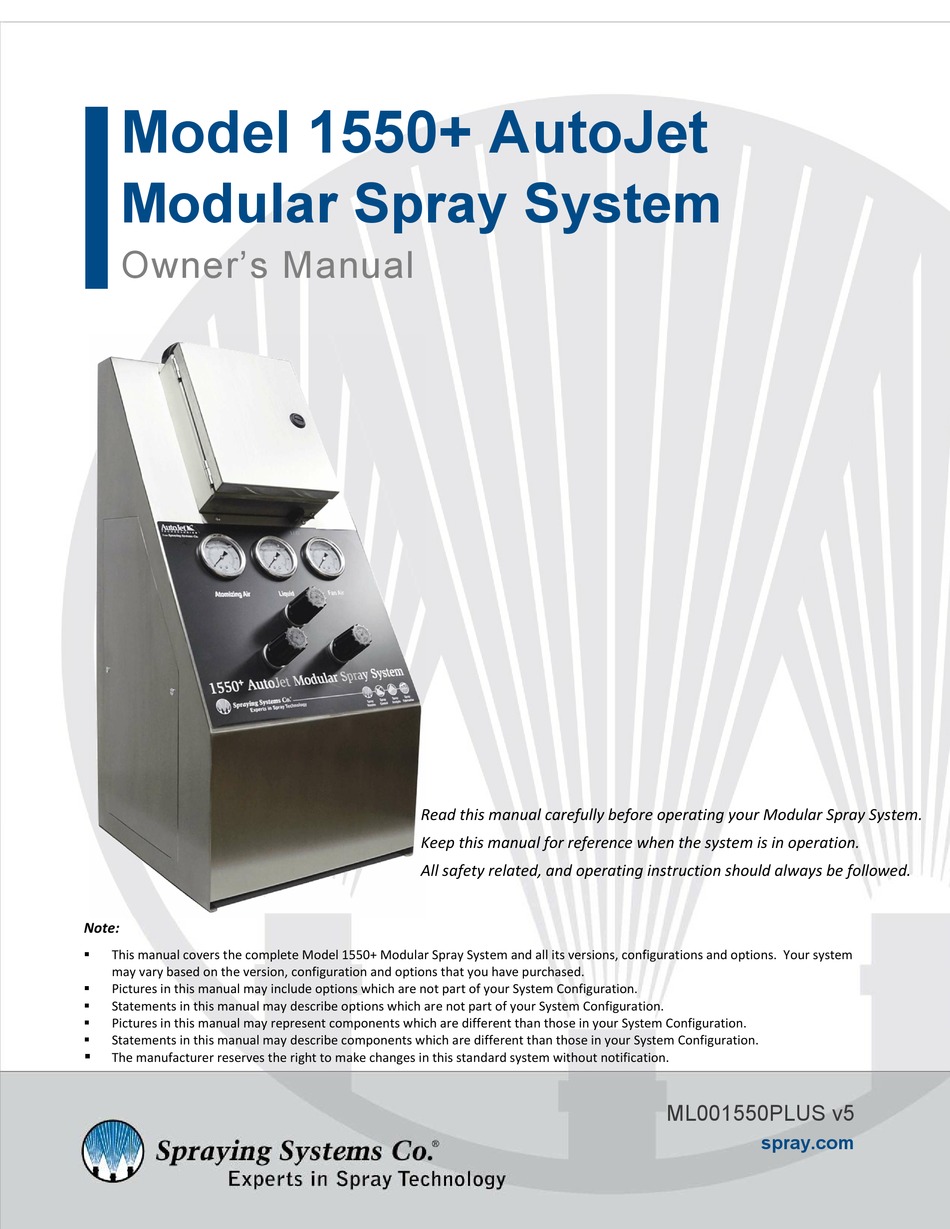

Model 1550+ AutoJet
Modular Spray System
Owner's Manual
Note:
This manual covers the complete Model 1550+ Modular Spray System and all its versions, configurations and options. Your system
may vary based on the version, configuration and options that you have purchased.
Pictures in this manual may include options which are not part of your System Configuration.
Statements in this manual may describe options which are not part of your System Configuration.
Pictures in this manual may represent components which are different than those in your System Configuration.
Statements in this manual may describe components which are different than those in your System Configuration.
The manufacturer reserves the right to make changes in this standard system without notification.
Read this manual carefully before operating your Modular Spray System.
Keep this manual for reference when the system is in operation.
All safety related, and operating instruction should always be followed.
ML001550PLUS v5
spray.com
