connectIng to power

The power supply must be strong enough to operate the Section and Master valves. The total current will depend on the used valve type.
Warning: When connecting the system to 12V power it's very important that the polarity is correct, if not the system will be damaged.

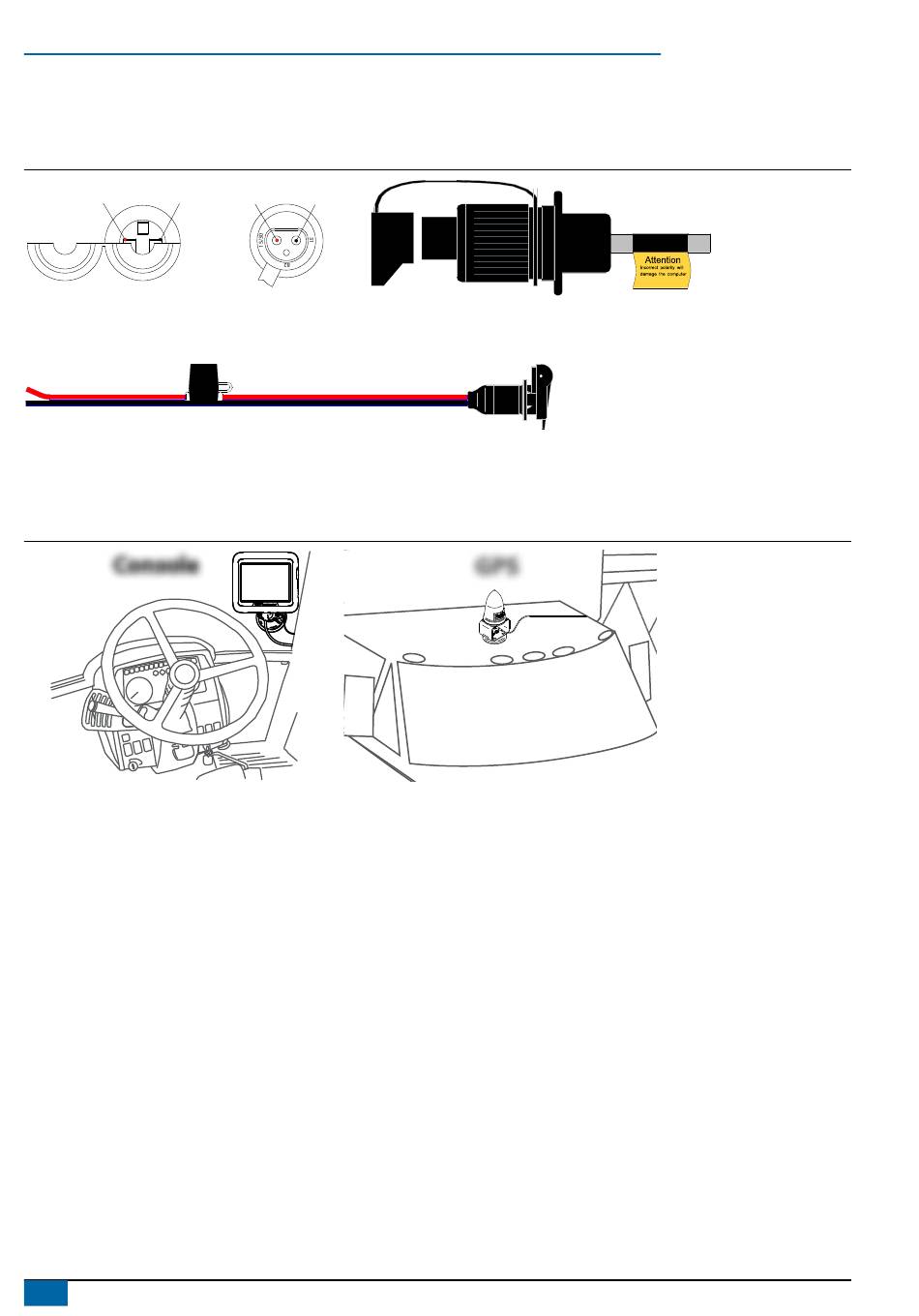

Figure 14: COBO cable
+12V (15/30) Ground (31)
-
+

Optional Battery Cable

If a power connector (Socket) isn't available in the tractor cabin, a optional battery cable can be used (PN 96ET14).
6.

recoMMended electronIcs InstallatIon

The control console can be mounted to the operator's preference. The GPS antenna should be mounted in the center on top of the cab on a
metal surface of at least 10 cm square.
Figure 15: Recommended electronics installation
Console
7.

coMplete electronIc InstallatIon

Refer to the Matrix Pro BoomPilot Setup Guide for further instructions on setting up and using your Matrix Pro for ABSC.
If not using a Matrix Pro, please refer to the owner's manual supplied with the guidance system to complete the electronic installation and
setup.
