B o o m P i l o t
i n s ta l l at i o n m a n U a l
Automatic boom section control installation manual
for use with Berthoud TELEVOLUX w/Matrix® Pro
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TeeJet TECHNOLOGIES BOOMPILOT and is the answer not in the manual?

Questions and answers

Related Manuals for Spraying Systems Co TeeJet TECHNOLOGIES BOOMPILOT

Summary of Contents for Spraying Systems Co TeeJet TECHNOLOGIES BOOMPILOT

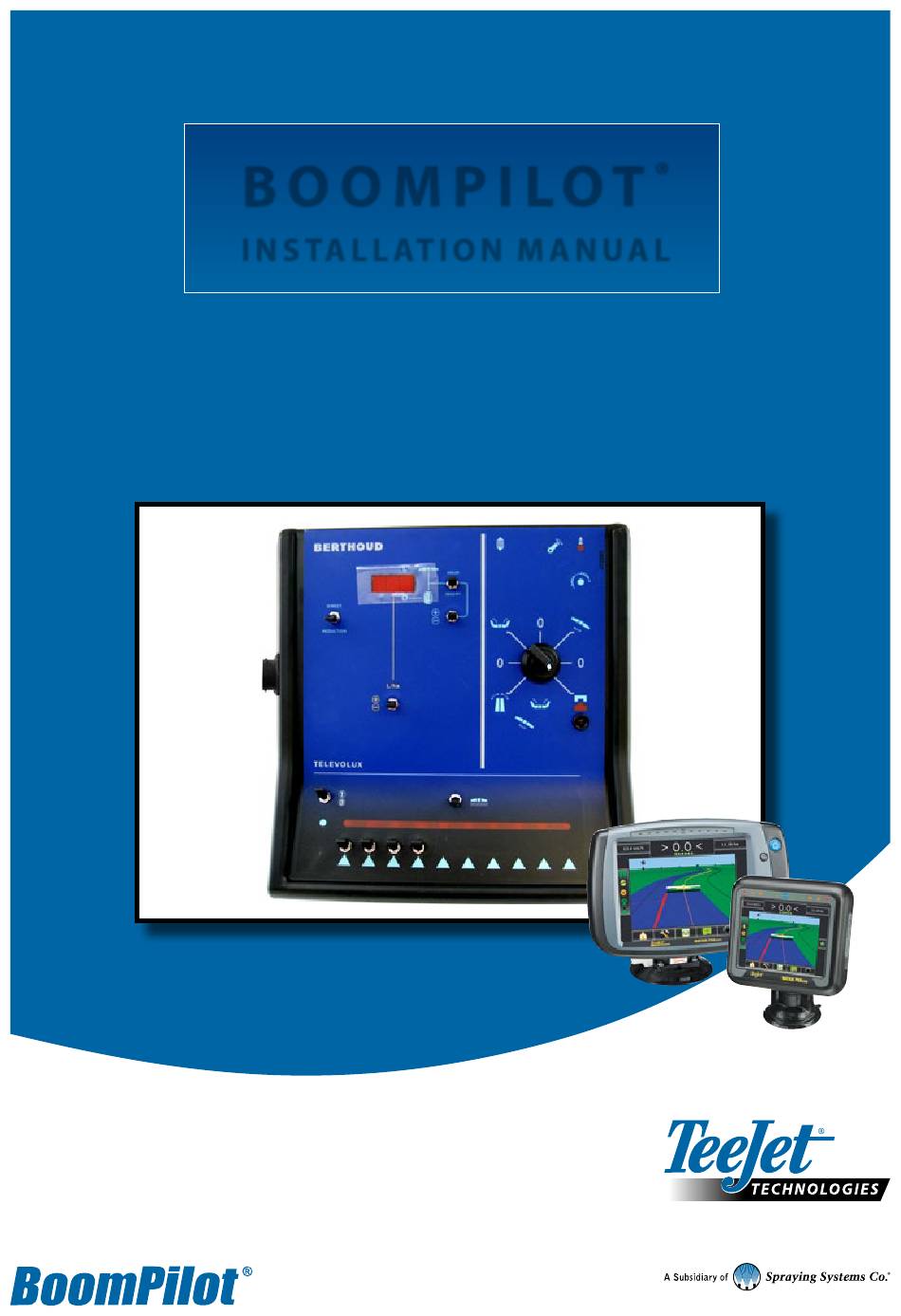

  • Page 1 B o o m P i l o t ® i n s ta l l at i o n m a n U a l Automatic boom section control installation manual for use with Berthoud TELEVOLUX w/Matrix® Pro...
  • Page 2 Copyrights © 2013 TeeJet Technologies. All rights reserved. No part of this document or the computer programs described in it may be reproduced, copied, photocopied, translated, or reduced in any form or by any means, electronic or machine readable, recording or otherwise, without prior written consent from TeeJet Technologies.

  • Page 3: Table Of Contents

    BoomPilot ® Table of contents ReqUiRed ComPonents PRinCiPle of oPeRation installation Locate the connection point for the SDM harneSS ......................4 Mount & connect SDM .................................... 4 DiSconnect & reconnect harneSSeS & cabLeS ........................5 Secure cabLeS anD harneSSeS ................................6 connect power/can/Data cabLe to booMpiLot harneSS ....................

  • Page 4: Required Components

    BoomPilot ® ReqUiRed ComPonents Unpack the installation kit and identify the required parts for your installation. Item Part Number Description Quantity 90-xxxxx* Matrix Pro guidance controller kit ............................1 45-05845 Power/CAN/data cable ..............................1 198-410 BoomPilot harness (CANBUS & Power) ..........................1 48-XXXXX Power cable with 3P COBO connector ..........................1 990-888* BoomPilot cable , 990-888 (Max.
  • Page 5 BoomPilot ® Item Part # Description Illustration 78-05072 BoomPilot section driver module (SDM) 020-049 Installation manual, Berthoud TELEVOLUX 98-05243 Matrix Pro BoomPilot setup guide 020-049 R1 EN...
  • Page 6 BoomPilot ® Figure 1: System diagram Matrix Pro 840 Existing system Matrix Pro 570 Not needed BoomPilot Optional accessory Berthoud TELEVOLUX 45-05625 Power cable, COBO (included with Matrix Pro kits) NOT NEEDED WITH BOOMPILOT 45-05845 3.3 m Power/CAN/data cable (included with FieldPilot and BoomPilot kits) Tilt gyro module (TGM)

  • Page 7: Principle Of Operation

    BoomPilot ® PRinCiPle of oPeRation The BoomPilot system controls the sections valves according to the GPS position. The GPS makes it possible to avoid overlaps or skips. The Section Driver Module (SDM) is designed for switching active high when spraying. This means that a 12V signal is issued to control the corresponding section valve.
  • Page 8 BoomPilot ® Figure 4: LED description CAN power On – CAN power is on Off – CAN power is off Section power On – boom section power is on Off – boom section power is off CAN data Blinking – receiving console CAN messages In/out error Off –...
  • Page 9 BoomPilot ® Carte pulve 1. Connect the external connector cable (4) to the interface (1), in the middle row. 2. Disconnect the wires (3) from the “Carte Pulvé” board (2) and connect them to the interface (1). 3. Connect the wires (5) to the interface (1) and to the “Carte Pulve” board (2). 020-049 R1 EN...

  • Page 10: Disconnect & Reconnect Harnesses & Cables

    BoomPilot ® DiSconnect & reconnect harneSSeS & cabLeS The BoomPilot SDM harness tees into the existing system’s connection between the Berthoud TELEVOLUX rate controller and flow control harness. 1. Disconnect existing connection at the back of the Berthoud TELEVOLUX console. 2.
  • Page 11 BoomPilot ® 6. connecting poSition M to power Position Description +12V (15/30) Warning: When connecting the system to 12V power it’s very important that the polarity is correct, if not the system will be damaged Ground (31) Battery Cable (option) 1008-0189 The power supply must be strong enough to operate the Section and Master valves.
  • Page 12 BoomPilot ® Driving wires connection to relay box Connect loose wires to the connection bloc. Below a informative table but verify that the respective connections are giving out 12 V when section is ON. Name Valves connections to relay box Disconnect the valves from the connection bloc and connect them into the relay box.

  • Page 13: Complete Electronic Installation

    BoomPilot ® Figure 10: Recommended electronics installation Console coMpLete eLectronic inStaLLation Refer to the Matrix Pro BoomPilot Setup Guide for further instructions on setting up and using your Matrix Pro for ABSC. If not using a Matrix Pro, please refer to the owner’s manual supplied with the guidance system to complete the electronic installation and setup.
  • Page 14 BoomPilot ® www.teejet.com...
  • Page 16 B o o m P i l o t ® U s e r m a n U a l A series of equipment-specific installation kits have been developed to work in conjunction with your automated boom section control system. This kit contains the necessary components and instructions to install ABSC on a Berthoud TELEVOLUX w/Matrix®...
