  • Page 1 CU150A GunJet ® Spray Guns USER GUIDE MI-CU150A spray.com...
  • Page 2: Table Of Contents

    CONTENTS CONTENTS ....................2 INTRODUCTION .................... 3 WARNING AND SAFETY PRECAUTIONS ............4 INSTALLATION ....................5 MAINTENANCE ..................... 6 DISASSEMBLY PROCEDURE: ..............6 ASSEMBLY PROCEDURE: ................7 PARTS LIST ....................8...
  • Page 3: Introduction

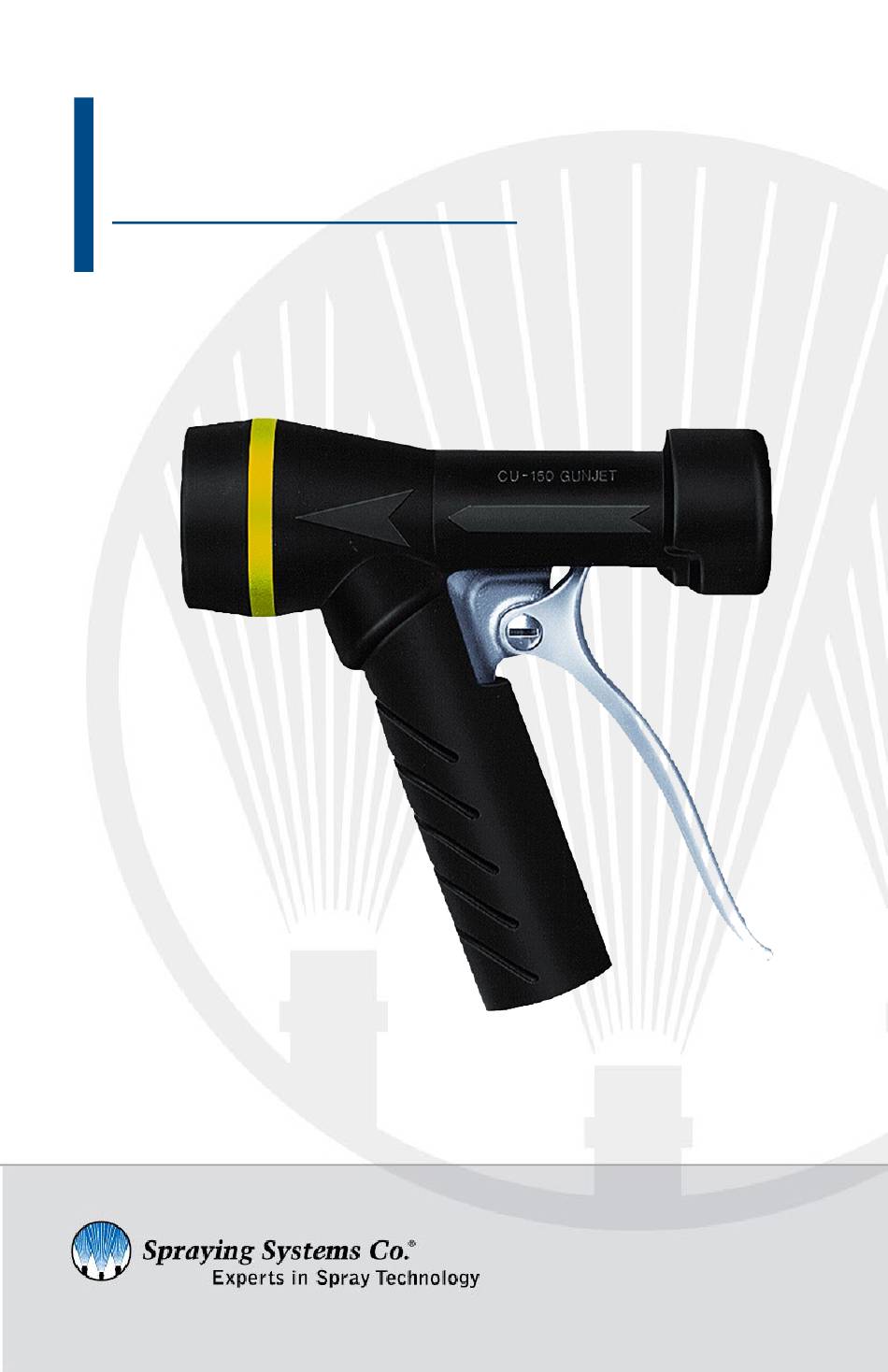

    INTRODUCTION The Model CU150A GunJet® is a heavy-duty, impact resistant spray gun with a brass or aluminum body with a replaceable rubber body cover. The Model CU150A GunJet provides a variable liquid spray from a 50° hollow cone to a solid stream spray pattern by trigger control.
  • Page 4: Warning And Safety Precautions

    WARNING AND SAFETY PRECAUTIONS IMPORTANT: READ ALL INSTRUCTIONS BEFORE USING SPRAY GUN 1. For water use only. 2. Before spraying, gun must be pointed in direction of arrow shown on side of gun. 3. If gun assembly is equipped with trigger lock ring, the ring must be released before spraying operation is finished.
  • Page 5: Installation

    INSTALLATION 1. Make sure all power is turned off to the pump. Attach GunJet® to hose which has a pressure and temperature rating meeting that of your anticipated maximum pressure and temperature. 2. Follow your pump and accessory equipment manufacturers' recommendations for operation and safety.
  • Page 6: Maintenance

    With proper care, your Model CU150A-_ _ series GunJet® will give you reliable service. To maintain this performance, parts should be inspected regularly and replaced when necessary with genuine Spraying Systems Co. parts. DISASSEMBLY PROCEDURE: (SEE FIGURE 1 AND PARTS LIST PLCU150A & PLBCU150A-_ _) If it becomes necessary to disassemble this unit, follow these steps: 1.
  • Page 7: Assembly Procedure

    6. Drill out and remove Rivet (9) and slip Trigger (10) out of the Body. 7. The remaining parts (2, 3, 4, 5) can be removed from Body (6) by gently pushing the Main Stem, Seat and Pintel sub-assembly (2) towards, and out of, the front end of Body (6).
  • Page 8: Parts List

    PARTS LIST...
  • Page 12 North Avenue and Schmale Road, P.O. Box 7900, Wheaton, IL 60187-7901 Tel: 1.800.95.SPRAY Intl. Tel: 1.630.665.5000 Fax: 1.888.95.SPRAY Intl. Fax: 1.630.260.0842 www.spray.com MI-CU150A © Spraying Systems Co. 2019...
