B o o m P i l o t
i n s ta l l at i o n m a n U a l
Automatic boom section control installation manual
for use with ARAG BRAVO 300 controller w/Matrix® Pro
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TeeJet Technologies BoomPilot and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Spraying Systems Co TeeJet Technologies BoomPilot

Summary of Contents for Spraying Systems Co TeeJet Technologies BoomPilot

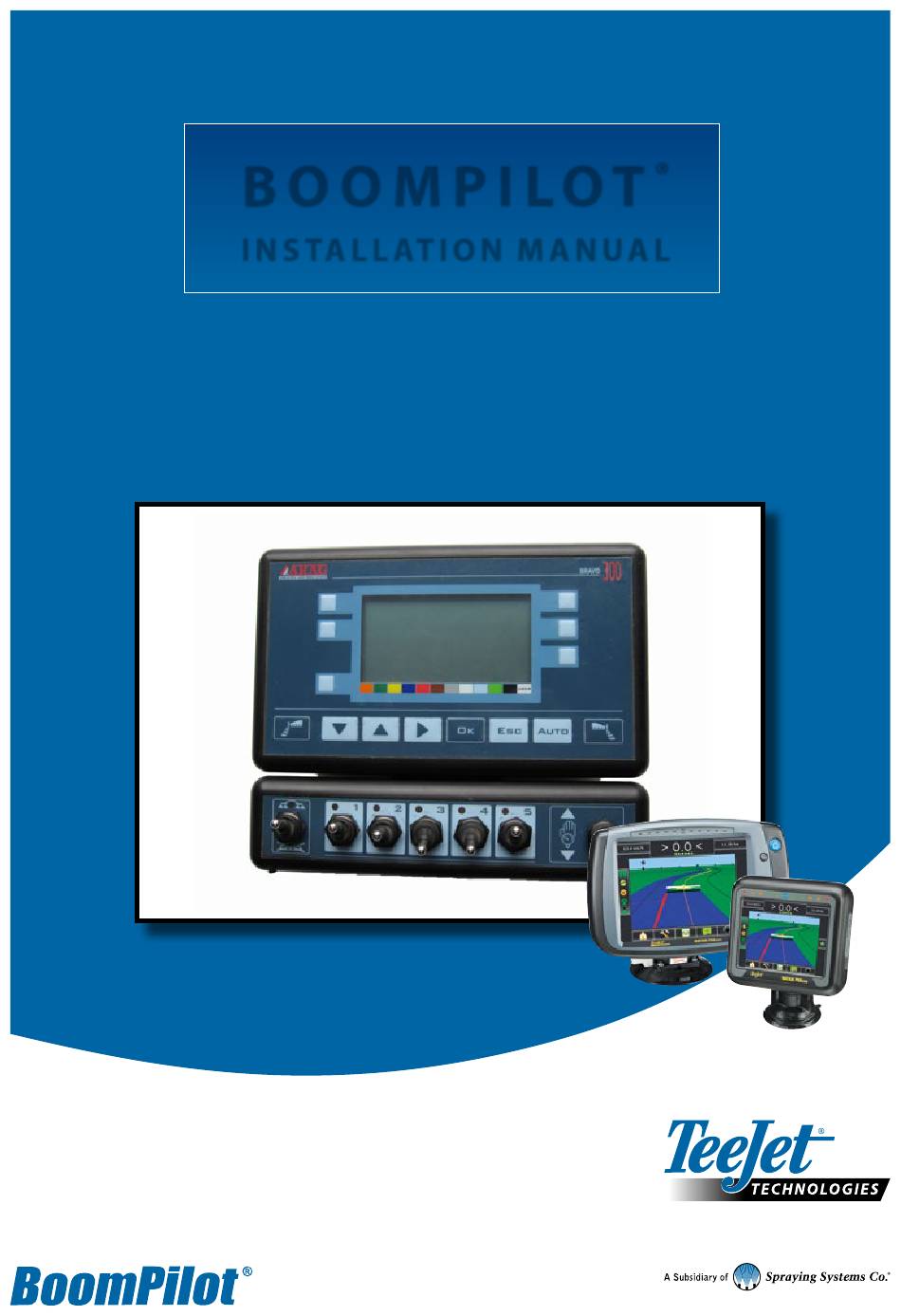

  • Page 1 B o o m P i l o t ® i n s ta l l at i o n m a n U a l Automatic boom section control installation manual for use with ARAG BRAVO 300 controller w/Matrix® Pro...
  • Page 2 Copyrights © 2013 TeeJet Technologies. All rights reserved. No part of this document or the computer programs described in it may be reproduced, copied, photocopied, translated, or reduced in any form or by any means, electronic or machine readable, recording or otherwise, without prior written consent from TeeJet Technologies.

  • Page 3: Table Of Contents

    BoomPilot ® Table of contents ReqUiRed ComPonents PRinCiPle of oPeRation installation InstallIng the arag 180 adapter cable ............................4 Mount & connect sdM .................................... 7 dIsconnect & reconnect harnesses & cables ........................7 connect power/can/data cable to booMpIlot harness ....................8 connectIng to power .....................................

  • Page 4: Required Components

    BoomPilot ® ReqUiRed ComPonents Unpack the installation kit and identify the required parts for your installation. Item Part Number Description Quantity 90-xxxxx* Matrix Pro guidance controller kit ............................1 45-05845 Power/CAN/data cable ..............................1 199-263 BoomPilot harness ................................1 902-364 ABSC adapter box ................................1 XXX-XXX* ARAG 300 adapter cable ..............................1 XXX-XXX*...
  • Page 5 BoomPilot ® Item Part # Description Illustration XXX-XXX* XXX-XXX* ARAG 300 adapter cable XXX-XXX* 020-044 Installation manual, ARAG BRAVO 300 98-05243 Matrix Pro BoomPilot setup guide Figure 1: System diagram Matrix Pro 840 Existing system Matrix Pro 570 Not needed BoomPilot Optional accessory 45-05625 Power cable, COBO...

  • Page 6: Principle Of Operation

    BoomPilot ® PRinCiPle of oPeRation The BoomPilot system controls the sections valves according to the GPS position. The GPS makes it possible to avoid overlaps or skips. The Section Driver Module (SDM) is designed for switching active high when spraying. This means that a 12V signal is issued to control the corresponding section valve.
  • Page 7 BoomPilot ® Disassemble the ARAG 300 controller by unscrewing the screws on Disconnect the flat cable connector from the circuit board (B). the rear side (Controller and switch box). Drill a 8 mm hole in the bottom of the controller housing (C). Unscrew the two 6 mm bolts which fix the controller to the switch box part.
  • Page 8 BoomPilot ® Place the free wires of the ARAG 300 adapter cable one by one in the hole and pull the cable trough as shown (E). Place the Circuit board on in the bottom of the controller housing and fasten it with the adhesive tape (F). Connect the flat cables as shown on the picture (H).

  • Page 9: Mount & Connect Sdm

    BoomPilot ® Mount & connect sdM 1. Mount SDM as shown where LED’s can be seen for troubleshooting. 2. Connect SDM to BoomPilot Harness (C). Figure 4: Connect SDM MATIC OM SECTION CONTROL dIsconnect & reconnect harnesses & cables The BoomPilot SDM harness tees into the existing system’s connection between the ARAG BRAVO 300 rate controller and flow control harness.

  • Page 10: Connect Power/Can/Data Cable To Boompilot Harness

    BoomPilot ® connect power/can/data cable to booMpIlot harness Connect Power/CAN/data cable to BoomPilot harness (C). Figure 7: Connect power/CAN/data cable to BoomPilot harness POWER IN Power/DATA 45-05626 Power/CAN/Data Cable BoomPilot cable (CANBUS & Power) connectIng to power Warning: When connecting the system to 12V power it’s very important that the polarity is correct, if not the system will be damaged. COBO cable +12V (15/30) Ground (31)

  • Page 11: System Check

    BoomPilot ® system CheCk After connecting the power connector, it is time to make a system check. To check the system, it is necessary to have full GPS signal. To obtain full GPS signal, the vehicle must be placed outside. Check AUTOMATIC mode: ARAG BRAVO 300: Section switches should be in the OFF position when working in Automatic mode.
  • Page 12 BoomPilot ® www.teejet.com...
  • Page 13 BoomPilot ® 020-044 R1 EN...
  • Page 14 BoomPilot ® www.teejet.com...
  • Page 16 B o o m P i l o t ® U s e r m a n U a l A series of equipment-specific installation kits have been developed to work in conjunction with your automated boom section control system. This kit contains the necessary components and instructions to install ABSC on a ARAG BRAVO 300.
