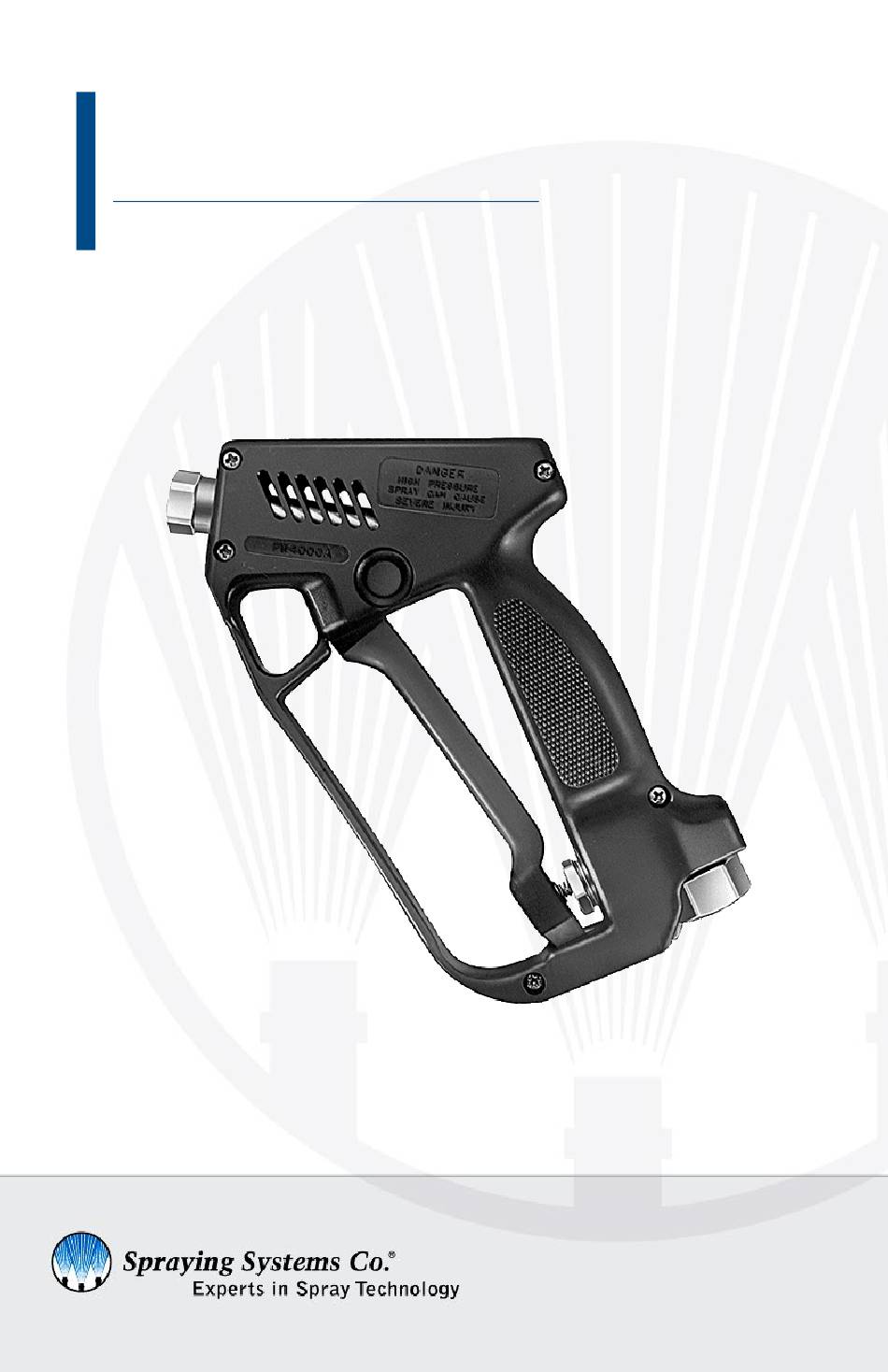

- Page 1 CW1500A Series GunJet Spray Gun ® USER GUIDE MI-CW1500A spray.com...
- Page 2 CW1500AW- GunJet spray guns are identical and require the same installation and operating procedures. The Model CW1500A- and CW1500AW- GunJet spray guns will accommodate standard Spraying Systems Co. accessories for both the inlet and the outlet connections, within the accessories pressure and temperature limitations.
- Page 3 3. DO NOT alter equipment in any manner; if repairs are necessary, use only genuine factory repair parts supplied by Spraying Systems Co. ® 4. DO NOT exceed maximum operating pressure of the lowest rated accessory item within the spray system, even though some of the accessories have a higher maximum pressure rating.
- Page 4 6. DO NOT use damaged, perforated, or weakened fluid hose. 7. DO NOT operate a spray gun if there are any leaks from the packings, fittings, hoses, etc. Fluids which are under high pressure can penetrate skin, cloth, etc. and cause serious injury. 8.
- Page 5 With proper care, your CW1500A- Series GunJet ® will give you reliable service. To maintain this performance, parts should be inspected regularly and replaced when necessary with genuine Spraying Systems Co. ® parts. DISASSEMBLY PROCEDURE: If it becomes necessary to rebuild the Valve Assembly (3 - 13) order Spare Parts Kit ABCW1500A-KIT or ABCW1500AW-KIT, follow these steps: 1.
- Page 6 4. Remove the five Screws (19) and Housing (18). See Figure 1, Page 7 5. Lift out all internal parts, leaving all parts assembled. Trigger Lock Plug (17) should remain in Housing (18) 6. Clamp the Valve Body (2) and remove Retaining Screw (4) containing Gasket (5), Back-Up Ring (6) and O-ring (7).
- Page 7 FIGURE 1 FIGURE 2 *Included in spare parts kit...
- Page 8 North Avenue and Schmale Road, P.O. Box 7900, Wheaton, IL 60187-7901 Tel: 1.800.95.SPRAY Intl. Tel: 1.630.665.5000 Fax: 1.888.95.SPRAY Intl. Fax: 1.630.260.0842 www.spray.com MI-CW1500A © Spraying Systems Co. 2019...
