Spraying Systems Co AUTOJET 1750+ Quick Start Manual
Spray control system
Hide thumbs
Also See for AUTOJET 1750+:
- Quick start manual (5 pages) ,
- Owner's manual (27 pages) ,
- Owner's manual (19 pages)
Subscribe to Our Youtube Channel
Related Manuals for Spraying Systems Co AUTOJET 1750+
Summary of Contents for Spraying Systems Co AUTOJET 1750+

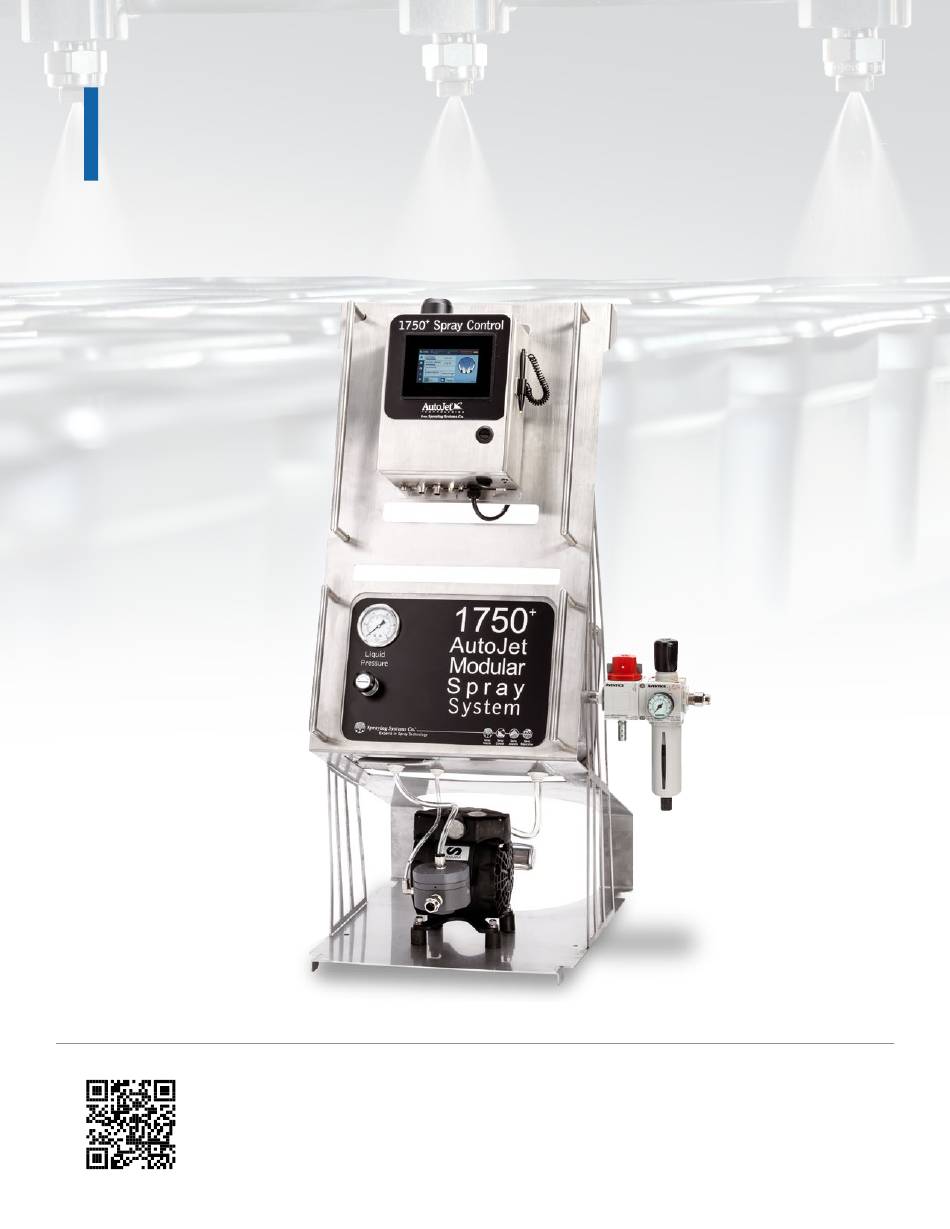

- Page 1 AUTOJET 1750+ SPRAY CONTROL SYSTEM ® QUICK START GUIDE Scan the QR code, or visit spray.com/autojetspraycontrol, to access manuals, videos and additional resources on the AutoJet 1750+ Spray Control System.
- Page 2 IDENTIFY YOUR VERSION AND CONFIGURATION The PUMP VERSION features an integrated air operated diaphragm pump for continuously run spray applications. • This design requires liquid to be drawn from a tote or tank • Liquid from the system can be recirculated back to the supply tote or tank The PUMPLESS VERSION is for applications where the system’s liquid delivery is provided by a pressurized vessel or other pressurized supply from the customer.
- Page 3 PUMP AND PUMPLESS AIR AND LIQUID CONNECTIONS Connect the Air Filter assembly to the unit by threading it to “AIR IN” bulkhead fitting Plumb and connect air supply 1/2" (F) NPT or BSPT to the air filter assembly. Customer to supply connection Plumb liquid supply vessel or container to the liquid strainer •...
- Page 4 PRESSURE POT AIR AND LIQUID CONNECTIONS Connect the Air Filter assembly to the unit by threading it to “AIR IN” bulkhead fitting Plumb and connect air supply 1/2" (F) NPT or BSPT to the air filter assembly. Customer to supply connection Connect tubing from “PILOT LIQUID REGULATOR/TANK AIR OUT”...
- Page 5 Name your system, hit create, then connect North Avenue and Schmale Road, P.O. Box 7900, Wheaton, IL 60187-7901 USA Tel: 1.800.95.SPRAY Intl. Tel: 1.630.665.5000 Fax: 1.888.95.SPRAY Intl. Fax: 1.630.260.0842 Email: info@spray.com www.spray.com © 2020 Spraying Systems Co. All rights reserved. PN: ML001750FSQS...
