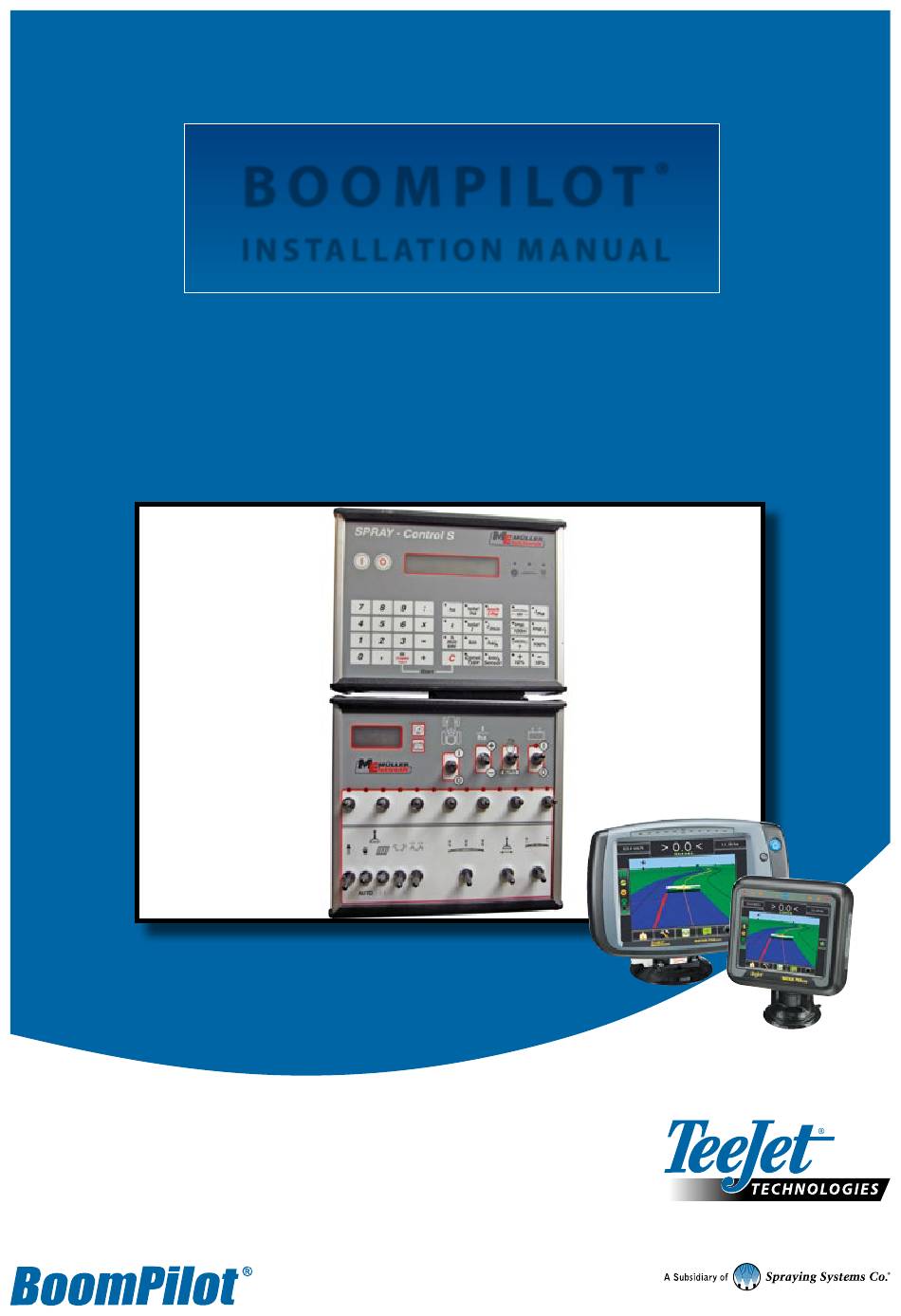

  • Page 1 B o o m P i l o t ® i n s ta l l at i o n m a n U a l Automatic boom section control installation manual for use with Müller Spray Control - S w/Matrix® Pro...
  • Page 2 Copyrights © 2013 TeeJet Technologies. All rights reserved. No part of this document or the computer programs described in it may be reproduced, copied, photocopied, translated, or reduced in any form or by any means, electronic or machine readable, recording or otherwise, without prior written consent from TeeJet Technologies.
  • Page 3: Table Of Contents

    BoomPilot ® Table of contents ReqUiRed ComPonents PRinCiPle of oPeRation BefoRe the install installation Mount & ConneCt ABSC AdApter Box ............................5 ConneCt Müller SprAy Control - S AdApter CABle ......................5 diSConneCt & reConneCt MAChine ConneCtion ........................6 ConneCt power/CAn/dAtA CABle to BooMpilot AdApter CABle ................. 7 ConneCting to power .....................................
  • Page 4: Required Components

    BoomPilot ® ReqUiRed ComPonents Unpack the installation kit and identify the required parts for your installation. Item Part Number Description Quantity 90-xxxxx* Matrix Pro guidance controller kit ............................1 45-05845 Power/CAN/data cable ..............................1 199-263 BoomPilot adapter cable ..............................1 902-361 ABSC adapter box ................................1 198-094 Müller Spray Control - S adapter cable ..........................1 020-043...
  • Page 5 BoomPilot ® Figure 1: System diagram Matrix Pro 840 Existing system Matrix Pro 570 Not needed BoomPilot Optional accessory Spray - Control S controller Müller standard switch box 45-05625 Power cable, COBO (included with Matrix Pro kits) NOT NEEDED WITH BOOMPILOT 45-05845 3.3 m Power/CAN/data cable (included with FieldPilot...
  • Page 6: Principle Of Operation

    BoomPilot ® PRinCiPle of oPeRation The BoomPilot system controls the sections valves according to the GPS position. The GPS makes it possible to avoid overlaps or skips. The ABSC (automatic boom section control) box is designed for switching active high when spraying. This means that a 12V signal is issued to control the corresponding section valve.
  • Page 7: Installation

    BoomPilot ® installation If there are questions concerning the installation of the BoomPilot system on this vehicle, or due to the changes in component specifications the parts supplied in the kit are not exactly as presented in this document, please contact your dealer or TeeJet Customer service representative for clarification before installation.
  • Page 8: Disconnect & Reconnect Machine Connection

    BoomPilot ® diSConneCt & reConneCt MAChine ConneCtion The ABSC adapter box tees into the existing system’s connection between the MÜLLER standard switch box and flow control harness. 1. Disconnect existing connection at the bottom of the MÜLLER standard switch box. 2.
  • Page 9: Connect Power/Can/Data Cable To Boompilot Adapter Cable

    BoomPilot ® Figure 8: ABSC adapter box to existing harness Connect existing to MATIC OM SECTION aBsC adapter box CONTROL ConneCt power/CAn/dAtA CABle to BooMpilot AdApter CABle Connect Power/CAN/data cable to BoomPilot adapter cable (C). Figure 9: Connect power/CAN/data cable to BoomPilot adapter cable POWER IN Power/DATA 45-05626...
  • Page 10: Recommended Electronics Installation

    BoomPilot ® reCoMMended eleCtroniCS inStAllAtion The control console can be mounted to the operator’s preference. The GPS antenna should be mounted in the center on top of the cab on a metal surface of at least 10 cm square. Figure 10: Recommended electronics installation Console CoMplete eleCtroniC inStAllAtion Refer to the Matrix Pro BoomPilot Setup Guide for further instructions on setting up and using your Matrix Pro for ABSC.
  • Page 12 B o o m P i l o t ® U s e r m a n U a l A series of equipment-specific installation kits have been developed to work in conjunction with your automated boom section control system. This kit contains the necessary components and instructions to install ABSC on a Müller Spray Control - S.
