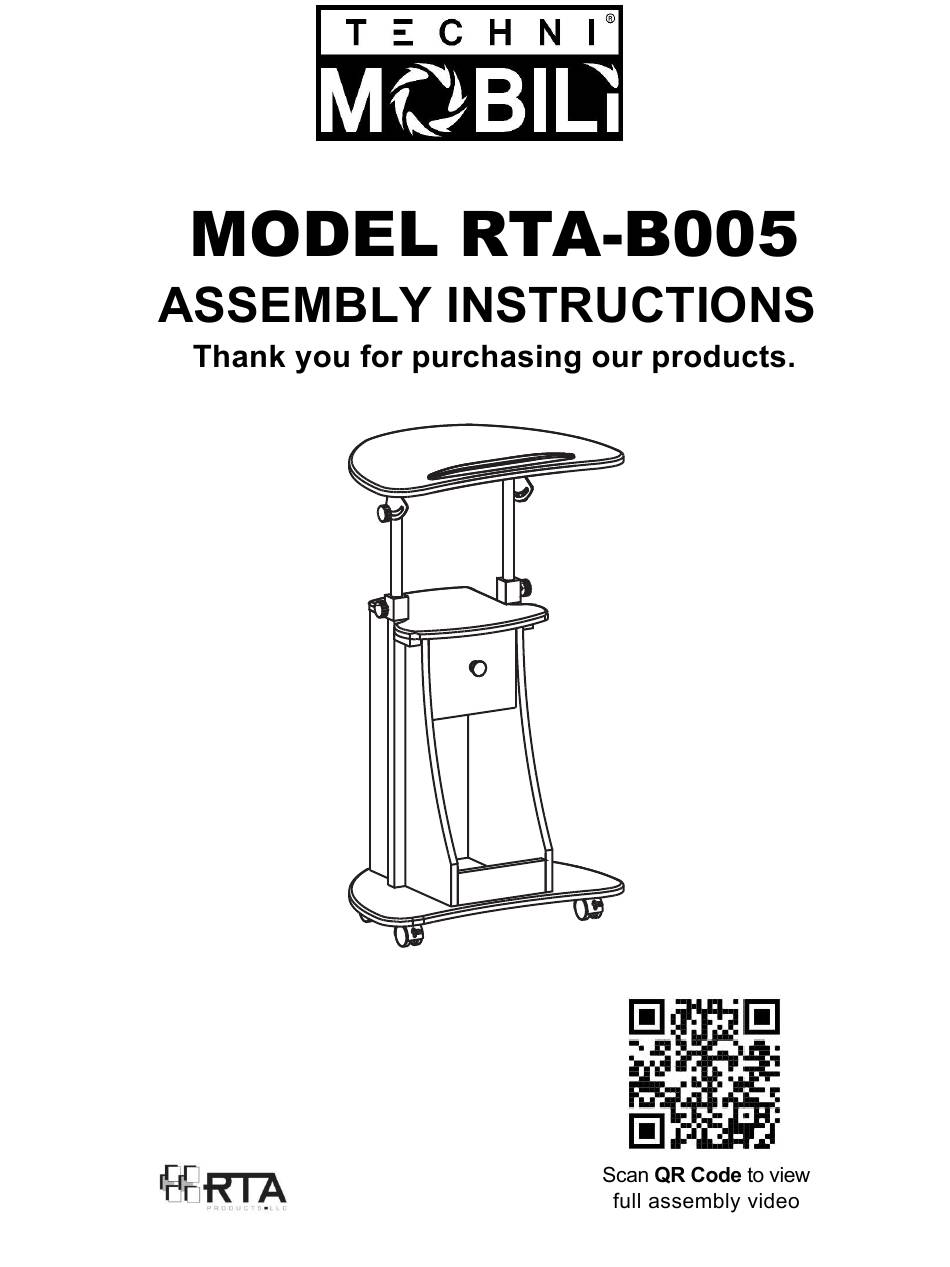

Techni Mobili RTA-B005 Assembly Instructions Manual

Hide thumbs Also See for RTA-B005:

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the RTA-B005 and is the answer not in the manual?

Questions and answers

Related Manuals for Techni Mobili RTA-B005

Summary of Contents for Techni Mobili RTA-B005

  • Page 3: Main Parts List

    MAIN PARTS LIST Left panel Right panel Casters Back panel Mid panel Top panel Front panel Bottom panel Top structure Plastic cover Lateral structure Main panel Protection rail Right tilting Screw Knob Left tilting mechanisim mechanisim Handle A: Magnetic Catch Drawer panel B: Steel Plate...

  • Page 4: Screws List

    SCREWS LIST: MAIN PARTS LAYOUT (FOR REFERENCE): This unit uses cam bolts and locks. The following explains how to use them. This is not an assembly step; it is a guide for when you are actually doing the assembly using this kind of hardware.
  • Page 5 BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. ❼ ❶ To avoid misalignments, Do a quick inventory to always leave the screws loose make sure the package contains and tighten them until all all the parts and hardware listed pieces are positioned correctly.

  • Page 6: Assembly Steps

    ASSEMBLY STEPS Use Screws ( F ) to fix the Magnetic Catch ( 17A ) to the inside face of Top Panel ( 8 ). STEP Use Screws ( F ) to fix the Steel Plate ( 17B ) to the Drawer Panel ( 18 ). Screws: 3x15mm (Front)
  • Page 7 First screw the Bolts ( D ) to the inside face of the Right Panel ( 2 ). Then insert the other metal Pin STEP ( H ) into the hole of Drawer Panel (18 ). Finally place down the panel ( 2 ) and assemble it to Screws: panels ( 1 ), ( 4 ) and ( 5 ) by turning the cam locks on those panels as shown and as explained in page 3.
  • Page 8 First screw the bolts ( D ) to the top panel ( 8 ), then place STEP it down and assemble it to the structure by turning the Screws: cam locks on panel ( 1 ), ( 2 ) and ( 4) as shown and as explained in page 3.
  • Page 9 STEP Use Screws ( E ) to fix the Left & Right Tilting Mechanisms ( 13 ) and ( 14 ) to the Main Panel ( 12 ) on the corresponding sides. Note that the pieces are shown below upside-down. Screws: 6x12mm (Front)
  • Page 10 Use Screws ( B ) to fix the Protection Rail ( 15 ) to the Main Panel ( 12 ). STEP Screws: 5X16mm Use Screw ( G ) to fix the Handle ( 19 ) to the Drawer Panel ( 18 ). STEP Screws: 4x20mm...
  • Page 12 AFTER THE ASSEMBLY IS DONE, PLEASE READ CAREFULLY THE FOLLOWING WARNINGS FOR CARE AND MAINTENANCE: Do not exceed the indicated weight limits. Do not expose the surfaces to direct sunlight or to extreme environmental conditions. Clean the surfaces preferable with a clean cloth damped in a solution of mild soap and water, then dry with a clean towel.
