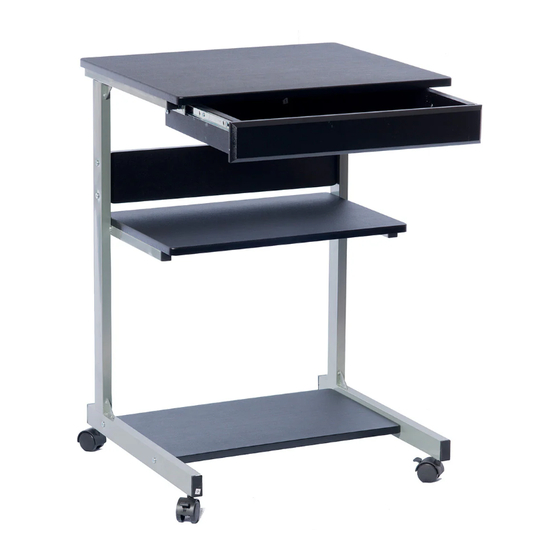

ROLLING LAPTOP CART WITH STORAGE
MODEL RTA-B018
ASSEMBLY INSTRUCTIONS
Thank you for purchasing our product
Scan QR code to view
full assembly video
REV.FCS-6922-1022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RTA-B018 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Techni Mobili RTA-B018

Summary of Contents for Techni Mobili RTA-B018

  • Page 1 ROLLING LAPTOP CART WITH STORAGE MODEL RTA-B018 ASSEMBLY INSTRUCTIONS Thank you for purchasing our product Scan QR code to view full assembly video REV.FCS-6922-1022...
  • Page 2 RTA-B018 • Do not discard this manual or any of the packaging material until the unit has been completely assembled. • Please read carefully the assembly instructions before the installation. • Scan this QR code to view the complete assembly video online.

  • Page 3: Main Parts List

    RTA-B018 The replacement parts service is limited to Do a quick inventory Missing, damaged and defective the 48 contiguous United States. parts can be replaced at no cost of all the parts and If you reside in AK, HI, PR, U.S. territories to you.

  • Page 4: Hardware List

    RTA-B018 MAIN PARTS LAYOUT (For reference) HARDWARE LIST SIZE ITEM SIZE ITEM PART PART Non-locking M6x50 caster (back) M6x30 Locking M6x30 Bolt caster (Front) M4x12 Sliders M4x35 INCLUDED TOOLS M6x12 M4 Allen Wrench Cam lock Hex Wrench (Spanner) OTHER TOOLS YOU WILL NEED BUT...
  • Page 5 RTA-B018 BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. • Do not discard this manual or any of the packaging material until the unit has been completely assembled. • If during assembly you find an issue or need clarification, please contact our Customer Service for assistance.

  • Page 6: Assembly Steps

    RTA-B018 ASSEMBLY STEPS STEP 1 Grab and extend each of the sliders J towards your RIGHT and separate Hardware the small track from the rest by pressing UP firmly the locking lever, at the same time that you pull the small track out. The big pieces J-1 will be...
  • Page 7 RTA-B018 STEP 3 Attach the casters H and I to the bottom of the frames 2 and 3 using the Hardware wrench, and following this order: • The Non-Locking casters H go at the back of the frame. • The Locking casters I go at the front...
  • Page 8 RTA-B018 STEP 5 DO NOT TIGHTEN THE SCREWS, Hardware leave them all loose to allow flexibility for the next steps. M6x50 • Place the tabletop 1 upside-down on the floor over a blanket to Tools (included) protect its surface, and place the frames 2 and 3 over it making the holes coincide, and secure with screws A but do not tighten yet.
  • Page 9 RTA-B018 STEP 7 • Assemble the drawer side panels 7 and 8 to the drawer back panel 9 Hardware with screws E from the side. • Slide the drawer bottom panel 10 through the grooves of the side M4x35 panels 7 and 8, and into the groove of panel 9...
  • Page 10 RTA-B018 STEP 9 Attach the small sliders J-2 to the side panels 7 and 8 with screws D Hardware M4x12 (Front) Small piece Tools (NOT included) ( F r o n Scan QR to view step ( F r o n STEP 10 .
  • Page 11 RTA-B018 P.10 P.10 ALL DONE! Give yourself a nice pat on the back, you did a great job! ENJOY YOUR NEW UNIT!

  • Page 12: Weight Limits

    RTA-B018 P.11 P.11 WEIGHT LIMITS 90 Lbs (40.8 Kg) 10 Lbs (4.5 Kg) 50 Lbs (22.6 Kg) 70 Lbs (31.7 Kg) WARNINGS Do not exceed the indicated weight limits. Do not expose the surfaces to direct sunlight or to extreme environmental conditions.
  • Page 13 RTA-B018 P.12 P.12 TECHNI MOBILI WARRANTY DESKS/LAPTOP CARTS/FILE CABINETS: LIMITED 5-YEAR WARRANTY RTA Products, LLC warrants to the Original Purchaser who acquired a new product from RTA Products or its authorized resellers that this product will be free from defects in its workmanship and materials, under normal use and service conditions, as described herein.
  • Page 14 FOR SEVERAL HELP OPTIONS INCLUDING REPLACEMENT PARTS ORDERS VISIT: WWW.TECHNIMOBILI.COM AND CLICK ON SUPPORT TAB Or scan the following QR Code: Scan the following QR Code to order replacement parts: EMAIL US: support@rtaproducts.com...
