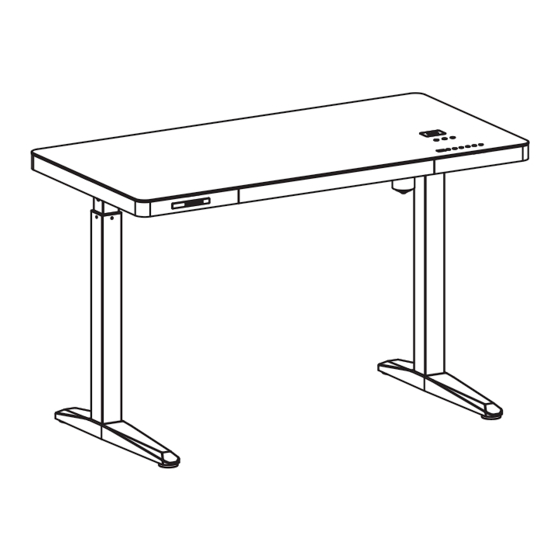

- Page 1 AUTOMATIC SIT TO STAND DESK MODEL RTA-3950SU ASSEMBLY INSTRUCTIONS Thank you for purchasing our product Please note that this product comes packaged in 2 separate boxes REV.OL-7168-0323...
- Page 2 RTA-3950SU 1 O F B O X • This product comes split in 2 separate boxes. • The unit plugs into an electrical outlet type A or B and requires AC power supply of 100V-240V. Make sure the room where the unit will be used has these capabilities.
-
Page 3: Main Parts List
RTA-3950SU The replacement parts service is limited to Do a quick inventory Missing, damaged and defective the 48 contiguous United States. parts can be replaced at no cost of all the parts and If you reside in AK, HI, PR, U.S. territories to you. -
Page 4: Screws List
RTA-3950SU MAIN PARTS LAYOUT (For reference) MAIN UNIT'S COMPONENTS LOCATION SCREWS LIST (FOR REFERENCE) SIZE ITEM PART Housing for adapters M8x15 Openings for cables M8x25 M6x12 Ø10mm Ø20mm USB 3.0 hub INCLUDED TOOLS Phillips Screwdriver Control Panel M4 Allen Wrench... -
Page 5: Assembly Steps
RTA-3950SU ASSEMBLY STEPS We recommend to place the pieces over blankets to protect their surfaces during assembly. Please note that the item assembles upside-down. STEP 1 With the help of another person, carefully remove the main unit from the carton This step and place it upside-down over a blanket to protect its glass surface. - Page 6 RTA-3950SU STEP 3 On the LEFT side of the main unit, insert the cable from the Speaker's AC adapter 12 through the indicated openings on the frame from the back and into the receptacle on the back of the speaker/wireless charger box as shown.
- Page 7 RTA-3950SU STEP 5 On the left side of the main unit, connect the control panel cable 10 to the cable from the main AC power adapter 9 and make sure to latch both ends securely as shown. Then connect the other end of the cable 10 to the 2-Pin socket located at the front.
- Page 8 RTA-3950SU STEP 7 With the help of another person, assemble the right metal leg 2 on the LEFT This step side of the main unit with screws A, O-rings D and washers E, making sure requires of the motor faces towards the inside of the unit.
- Page 9 RTA-3950SU STEP 8 Loosen up the nut on the transmission rod 5 to allow its inner shaft to slide. This step With the help of another person, first insert the end of the retractable shaft into requires of the leg 1 (the one without the motor) and keep holding it firmly.
- Page 10 RTA-3950SU STEP 9 Assemble the metal feet 3 to the legs 1 and 2 with screws A, O-rings D and Hardware washers E, paying attention to the orientation of the feet, and making sure that the washer E goes flushed to the feet.
- Page 11 RTA-3950SU P.10 P.10 STEP 10 Use the molding 14 as reference to fold into its shape the metal plate 13. Hardware Assemble the plate 13 to the frame of the main unit 6 with screws C as shown. Pass through the big hole of the plate 13 the power cable 8, the USB cable 11 M6x12 and the speaker A/C adapter 12.
- Page 12 RTA-3950SU P.11 P.11 STEP 11 With the help of another person, carefully turn the item upright and place near This step the power suply with the recommended specifications shown in pages 1 and 12. requires of 2 persons DO NOT GRAB/HOLD/LIFT FROM THE GLASS...
-
Page 13: Connect The Power Cables
RTA-3950SU P.12 P.12 CONNECT THE POWER CABLES To power up for its lift, charging and speaker functions, the unit requires from 2 electrical outlets with 100V-240V capacity and sockets type A or B (2 prongs or 2 prongs plus ground), so make sure the room where the item will be used meets these requirements. - Page 14 RTA-3950SU P.13 P.13 LIFT FUNCTION AND MEMORY SETTINGS LIFT FUNCTION The normal height of any non-adjustable desk ranges from 73cm (28 inches) to 78cm (31 inches). This desk has an adjustable height range from 73cm (28 inches) to 118cm (46 inches) that allows you to alternate between sitting and standing for periods of time.
-
Page 15: Wireless Charging
RTA-3950SU P.14 P.14 WIRELESS CHARGING The wireless charger works only for devices equipped and enabled with inductive charging. First make sure the Charger/Speaker's A/C adapter is properly connected to a power source. Place your device over the surface of the charging pad with the symbol "... -
Page 16: Weight Limits
RTA-3950SU P.15 P.15 WEIGHT LIMITS 110 Lbs (50 Kg) 11 Lbs (5 Kg) WARNINGS Do not exceed the indicated weight limits. Only connect the unit to the specified power supply. Do not expose the surfaces to direct sunlight or to extreme environmental conditions. - Page 17 RTA-3950SU P.16 P.16 TECHNI MOBILI WARRANTY DESKS/LAPTOP CARTS/FILE CABINETS: LIMITED 5-YEAR WARRANTY RTA Products, LLC warrants to the Original Purchaser who acquired a new product from RTA Products or its authorized resellers that this product will be free from defects in its workmanship and materials, under normal use and service conditions, as described herein.
- Page 18 Your satisfaction is very important to us. Our Support agents can help you with any issues you may have, please feel free to contact us with any questions you have about our products, or to request replacement parts. FOR ADDITIONAL INFORMATION PLUS HELP OPTIONS VISIT: WWW.TECHNIMOBILI.COM CLICK ON SUPPORT TAB...
