Workrite Ergonomics Sentinel ST2E-30-48 Series Assembly/Installation Instructions

Assembly & Installation Instructions:
Sentinel Electric 30"–48" Base
ST2E-30-48-XXXXX-XX-X, ST3E-30-48-XXXXX-XX-X

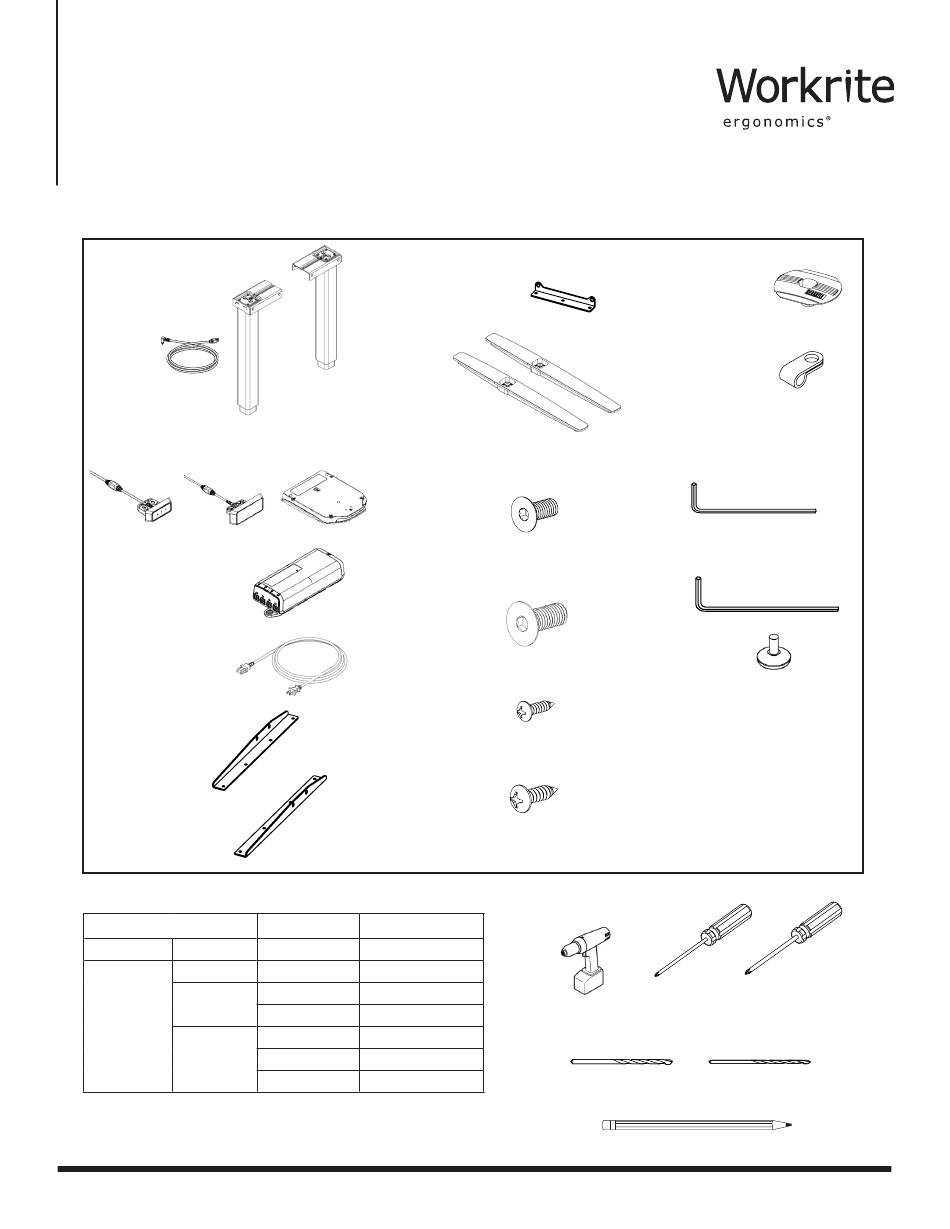

Parts Included
A
Electric Leg Assembly
w/cable
Qty: 2
B
Switch (Standard, Programmable,
or Bluetooth)
Qty: 1
C
DMP240 Power Supply
Qty: 1
D
DMP240 Power Supply
Power Cord
Qty: 1
E
Left Motor Bracket
Qty: 1
F
Right Motor Bracket
Qty: 1
Worksurface Required, Sold Separately:
24" Feet Rectangle
Rectangle
Equal Corner
30" Feet
120 Degree
Workrite Ergonomics | 800.959.9675 www.workriteergo.com
G
Short Motor Bracket
Qty: 4
H
Foot
Qty: 2
I
M6 × 1.0P × 12 mm
Flat Head Allen Screw
Qty: 12
J
M8 × 1.25P × 20 mm
Flat Head Allen Screw
Qty: 4
K
#8 × ⅝" Phillips Pan
Head Screw
Qty: 12
L
#12 × ¾" Phillips Pan
Head Screw
Qty: 24
Width Depth
34–48" 23–24"
34–48" 29–30"
40–48" × 40–48" 23–24"
46–48" × 46–48" 29–30"
34–36" × 34–36" 23–24" or 29–30"
40–42" × 40–42" 23–24" or 29–30"
46–48" × 46–48" 23–24" or 29–30"
M
Cable Spool
Qty: 2
N
P-Loop
Qty: 10
O
4 mm Allen Wrench
Qty: 1
P
5 mm Allen Wrench
Qty: 1
Q
Glide
Qty: 4
Tools Required:
#2 Phillips Bit
Cordless Drill
Screwdriver or
Driver/Drill
⅛" pilot drill bit
pencil
#3 Phillips Bit
Screwdriver or
Driver/Drill
" pilot drill bit
⁄
3
32
1 of 9
