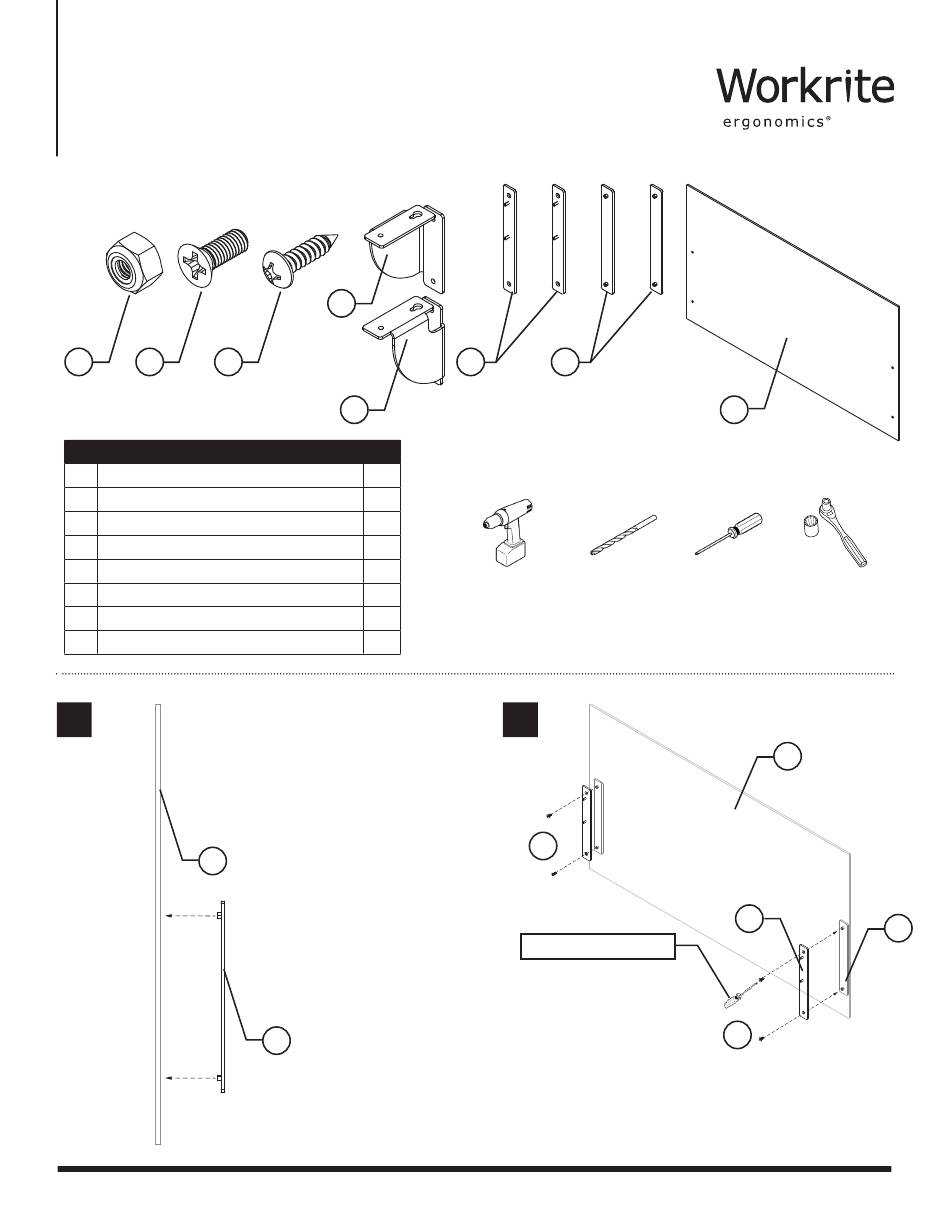

Workrite Ergonomics SM-ACR Series Assembly/Installation Instructions

Assembly & Installation Instructions:
Acrylic Privacy & Modesty Panels
SM-ACR-XX-XXX
Included:
A B C
ID Part Name
A #10-32 Zinc Nylon Lock Nut
B #10-32 ˣ ½" Phillips Drive Flat Head Screws
C #10 × ¾" Phillips Pan Head Screws
D Left Bracket
E Right Bracket
F Front Stud Brackets
G Rear Standoff Brackets
H Acrylic Panel
Align Rear Standoff Brackets (G)
1
with holes on outside edge of
Acrylic Panel (H)
H
SIDE VIEW
Workrite Ergonomics | 800.959.9675 www.workriteergo.com
D
E
Qty
4
4
4
1
1
2
2
1
G
F G
Tools Required:
Cordless Drill ⅛" Drill Bit
2
B
#2 Phillips Screwdriver
• Align Front Stud Brackets (F) with holes
on opposite side of Acrylic Panel (H)
• Insert #10-32 × ½" Phillips Flat Head Screws (B)
H
#2 Phillips Bit ⅜" Wrench
Screwdriver or Socket
Driver/Drill
H
F
B
1 of 2
G
