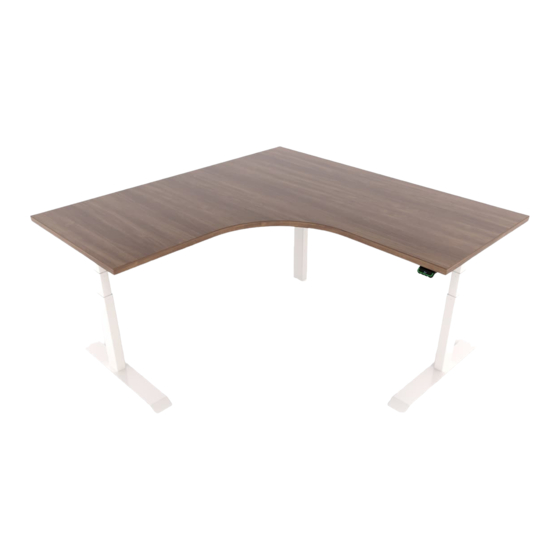

3-leg desk in a box

Advertisement

Quick Links

Assembly & Installation Instructions:
Sierra 3-Leg Desk in a Box
SEHX5472-4272EOC-XXX-XX-X
Parts Included, Frame Set
A
Leg
Qty: 2
B
Rear Bracket
Qty:2
C
Connector
Bracket
Qty: 1
D
#M6 × 12 mm Flat Head
Cap Screw
Qty: 6
E
Short Bracket
Qty: 2
F
Left End Bracket
Qty: 1
G
Right End Bracket
Qty: 1
A
Leg
Qty: 1
B
Rear Bracket
Qty:1
Workrite Ergonomics | (800) 959–9675 www.workriteergo.com
I
#M6 × 14 mm Flat Head
Cap Screw
Qty: 30
J
4 mm Allen Wrench
Qty: 1
K
#12 × ¾" Pan Head
Laminate Top Screw
Qty: 61
M
0.4126 "
0.134"
3/4"
Foot Glides
0.216"
#12 Screw Size
Qty: 5
#3 Drive
N
#12 x 2" Flat Head Screw
Qty: 2
O
Control Box
Qty: 1
P
Cable Spool
Qty: 3
C
Connector Bracket
Qty: 1
E
Short Bracket
Qty: 1
H
Corner End Bracket
Qty: 1
Q
³⁄ 1 6" Cable Loops
Qty: 15
R
#8 × ⅝" Pan Head Screw
Qty: 18
S
Leg Cable, 1 Meter
Qty: 2
U
Style or Flat Foot Kit
Qty: 1
V
Power cord
Qty: 1
or
W
Standard or
Programmable Switch
Qty: 1
or
Sold separately: Worksurface
L
Corner Foot
Qty: 1
T
Leg Cable, 2 Meters
Qty: 1
Box 1
Box 2
1 of 11

Advertisement

loading
Need help?

Need help?

Do you have a question about the Sierra SEHX5472-4272EOC Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Workrite Ergonomics Sierra SEHX5472-4272EOC Series

  • Page 1 Sold separately: Worksurface Box 2 Corner Foot Connector Bracket Qty: 1 Qty: 1 Qty: 1 Short Bracket Leg Cable, 2 Meters Qty: 1 Qty: 1 Rear Bracket Qty:1 Corner End Bracket Qty: 1 Workrite Ergonomics | (800) 959–9675 www.workriteergo.com 1 of 11...
  • Page 2 Loading should be evenly distributed over table surfaces. “Payload Capacity” is the Workrite Ergonomics recommended maximum loading which includes the Workrite sourced worksurface.
  • Page 3 Head Cap Screw (S) for assembly. Note: Brackets can be sized in 6" When shown upside down, right will be on your left and vice-versa. Your frameset may differ. increments for any non-Workrite top. Workrite Ergonomics | (800) 959–9675 www.workriteergo.com 3 of 11...
  • Page 4 Right End Bracket Note: The Right End Bracket (G) will be on Left configuration your left when upside down. Note: Left configurations will assemble as a mirror image of these instructions. 4 of 11 Workrite Ergonomics | (800) 959–9675 www.workriteergo.com...
  • Page 5 (2 installed in step 3.2) 22 screws per Connected Rear Bracket 6 or 12 screws per Floating Rear Bracket 3 screws per Short Bracket 2 screws per End Bracket (2 installed in step 3.2) Workrite Ergonomics | (800) 959–9675 www.workriteergo.com 5 of 11...
  • Page 6 (2 installed in step 4.3) 18 screws per 6 or 12 screws per Connected Rear Bracket Floating Rear Bracket* 3 screws per Short Bracket 2 screws per End Bracket (2 installed in step 4.3) 6 of 11 Workrite Ergonomics | (800) 959–9675 www.workriteergo.com...
  • Page 7 7.3 Plug Power Cord (U) into power outlet AC on the Control Box (O). 7.4 Plug Leg Cable (S) into port “3” on the Control Box. 7.5 Lay the Control Box down in installation location with cables in place. Workrite Ergonomics | (800) 959–9675 www.workriteergo.com 7 of 11...
  • Page 8 8.4 Lay out Leg Cables (S & T) to be sure they all reach the Control Box. Hardware at actual size Hardware at actual size #12 × 2" Flat Head Screw #12 × ¾" Pan Head Laminate Top Screw 8 of 11 Workrite Ergonomics | (800) 959–9675 www.workriteergo.com...
  • Page 9 Note the additional P-Loop and Cable Spool locations that may provide better attachment and routing options for your specific configuration. Hardware at actual size #8 × ⅝" Pan Head Screw Switch Cable Workrite Ergonomics | (800) 959–9675 www.workriteergo.com 9 of 11...
  • Page 10 10.3 Connect 2 Meter Leg Cable (T) to the port on the Left Leg (A) then to port “2” on the Control Box (O) 10.3 10.1 Installed in Step 9 Installed in Step 9 10.1 10.3 Switch Cable into 10.2 Switch Port “A1" 10 of 11 Workrite Ergonomics | (800) 959–9675 www.workriteergo.com...
  • Page 11 Suggested cleaners: Windex or Formula 409. Do not use solvents and do not saturate or spray cleaners directly to workcenter base. ✓ Replacement Parts Visit http://workriteergo.com/documentation/other/workrite_ergonomics_pricing_specification_guide.pdf replacement parts. Workrite Ergonomics | (800) 959–9675 www.workriteergo.com 11 of 11 #1500451 Rev A...
