Assembly & Installation Instructions:
Sierra 2-Leg Desk in a Box SEHX78-90-XXX-XX-X

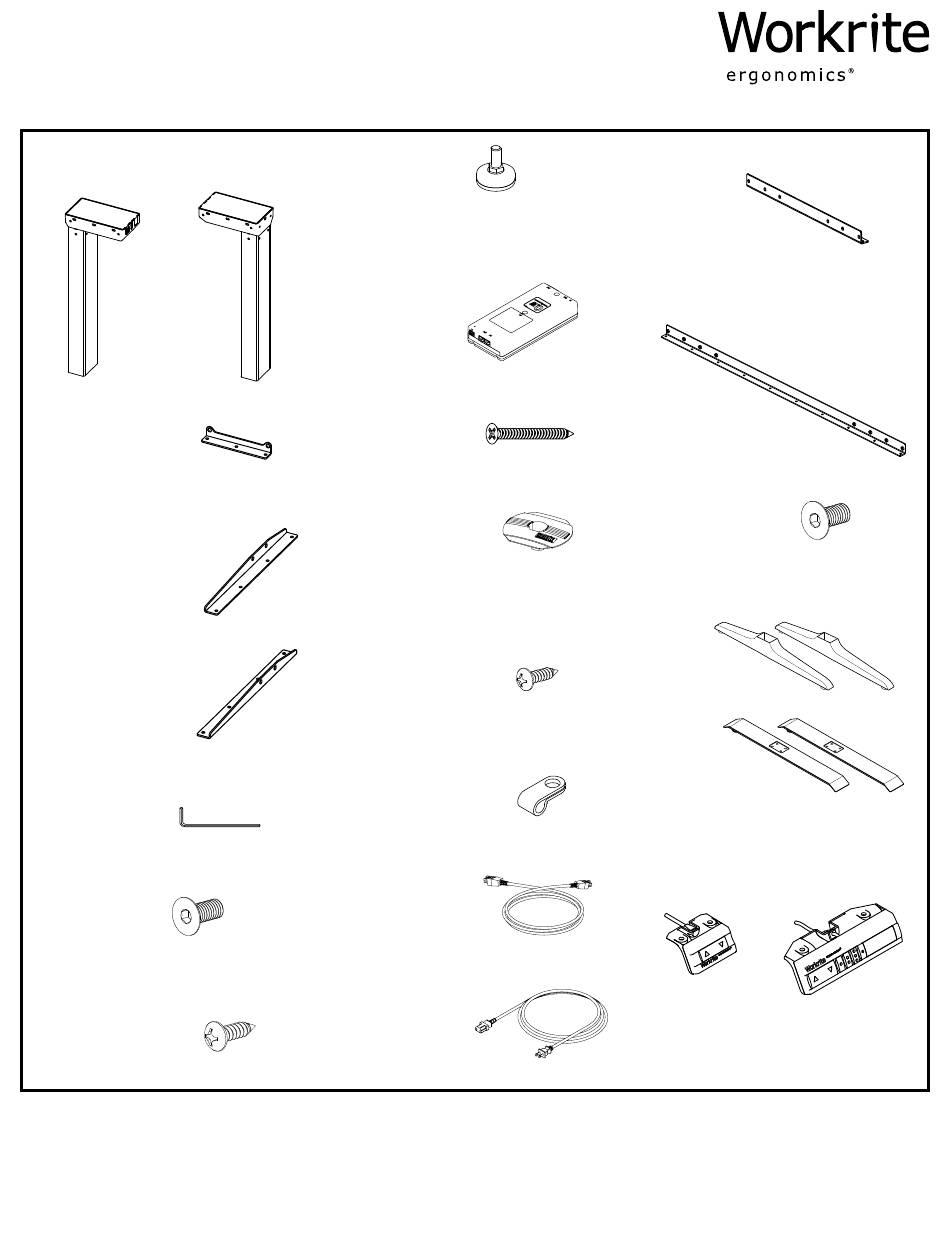

Parts Included
A
Leg
Qty: 2
B
Short Bracket
Qty: 2
C
Left End Bracket
Qty: 1
D
Right End Bracket
Qty: 1
E
4 mm Allen Wrench
Qty: 1
F
#M6 × 14 mm Flat Head Cap
Screw
Qty: 12
G
#12 × ¾" Pan Head Laminate
Top Screw
Qty: 38
0.4126 "
0.134"
3/4"
0.216"
#12 Screw Size
#3 Drive
Workrite Ergonomics | 800.959.9675 www.workriteergo.com
H
Foot Glide
Qty: 4
I
Control Box
Qty: 1
J
#12 × 2" Flat Head Screw
Qty: 2
K
Cable Spool
Qty: 2
L
#8 × ⅝" Pan Head Screw
Qty: 12
M
3/ 1 6" Cable Loops
Qty: 10
N
Leg Cable, 1
meter
Qty: 2
O
Power Cord
Qty: 1
Q
Rear Bracket
Qty: 2
R
Connector Bracket
Qty: 1
S
#M6 × 12 mm Flat
Head Cap Screw
Qty: 4
T
Style or Flat Foot Kit
Qty: 1
or
U
Standard or
Programmable Switch
Qty: 1
or
Sold Separately:
Worksurface
1 of 12
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Workrite Ergonomics Sierra SEHX78-90 Series
Summary of Contents for Workrite Ergonomics Sierra SEHX78-90 Series
- Page 1 Qty: 12 Qty: 2 #12 × ¾" Pan Head Laminate Power Cord Top Screw Qty: 1 Qty: 38 Sold Separately: Worksurface 0.4126 " 0.134" 3/4" 0.216" #12 Screw Size #3 Drive Workrite Ergonomics | 800.959.9675 www.workriteergo.com 1 of 12...
- Page 2 Loading should be evenly distributed over table surfaces. “Payload Capacity” is the Workrite Ergonomics recommended maximum loading which includes the Workrite sourced worksurface.
- Page 3 Cap Screw (S) for assembly. 74" Note: Workrite Brackets can be sized in 3" increments for any non-Workrite top. Keep bracket construction as symmetrical as 82" Workcenters possible for best support. 68" 76" Workcenters Workrite Ergonomics | 800.959.9675 www.workriteergo.com 3 of 12...
- Page 4 To avoid stripping the threads, always insert and make the first few turns of the screw BY HAND with an Allen wrench (E), ensuring it is in straight. Left End Bracket 4 of 12 Workrite Ergonomics | 800.959.9675 www.workriteergo.com...
- Page 5 #12 × ¾" Pan Head Laminate Top Screws (G). Skip to Step 6. 3 screws per Short Bracket 2 screws per End Bracket (2 installed in Step 3.2) 22 screws per Rear Bracket Assembly Workrite Ergonomics | 800.959.9675 www.workriteergo.com 5 of 12...
- Page 6 #12 × ¾" Pan Head Laminate Top Screws (G). 3 screws per Short Bracket 2 screws per End Bracket (2 installed in Step 4.3) 16 screws per Rear Bracket Assembly 6 of 12 Workrite Ergonomics | 800.959.9675 www.workriteergo.com...
- Page 7 Leave eight inches of slack to rout cord. 7.2 Plug Power Cord (O) into port AC on the Control bottom Box (I). 7 .3 Lay the Control Box down in installation location with cables in place. Workrite Ergonomics | 800.959.9675 www.workriteergo.com 7 of 12...
- Page 8 8.4 Lay out Leg Cables (N) to be sure they reach from the Legs (A) to the Control Box (I). Hardware at actual size #12 × ¾" Pan Head Laminate Top Screw Hardware at actual size #12 × 2" Flat Head Screw 8 of 12 Workrite Ergonomics | 800.959.9675 www.workriteergo.com...
- Page 9 Cable Loop around the cable prior to attaching. If you do not have a Workrite worksurface, attach cable loops in convenient locations between Legs or Switch and the Control Box. Hardware at actual size #8 × ⅝" Pan Head Screw Workrite Ergonomics | 800.959.9675 www.workriteergo.com 9 of 12...
- Page 10 10.2 Insert the Switch Cable into port “A1” on the Control Box (I). 10.1 10.2 10.1 Right Leg Cable (P) into Port “1” Power Cord (Q ) into Port “AC” Switch Cable into Port “A1” Left Leg Cable into Port "2" 10 of 12 Workrite Ergonomics | 800.959.9675 www.workriteergo.com...
- Page 11 11.2 Plug the Power Cord (O) into the power outlet. 11.1 11.2 Adjust Feet Glides If necessary, adjust the Foot Glides (H) on workcenter feet to level the worksurface. Unscrew to increase height, screw in to decrease height. Workrite Ergonomics | 800.959.9675 www.workriteergo.com 11 of 12...
- Page 12 Suggested cleaners: Windex or Formula 409. Do not use solvents and do not saturate or spray cleaners directly onto workcenter base. ✓ Parts & Accessories Visit http://workriteergo.com/documentation/other/workrite_ergonomics_pricing_specification_guide.pdf replacement parts. 12 of 12 Workrite Ergonomics | 800.959.9675 www.workriteergo.com #1500455 Rev A...
