Assembly & Installation Instructions:

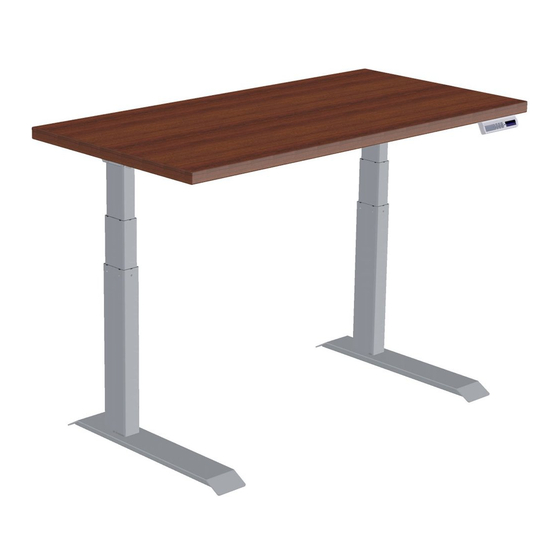

Fundamentals 2-Leg Workcenter FDEX30-48-X / FDLX30-48-X
Parts Included
A
Master Leg
Qty: 1
B
Companion Leg
Qty: 1
C
Short Bracket
Qty: 4
D
Left End Bracket
Qty: 1
E
Right End Bracket
Qty: 1
F
4 mm Allen Wrench
Qty: 1
Workrite Ergonomics | 800.959.9675 www.workriteergo.com
G
#M6 × 14 mm Flat Head Cap
Screw
Qty: 20
H
Foot Glide
Qty: 4
I
#12 × ¾" Pan Head Laminate
Top Screw
Qty: 21
J
Power Supply
Qty: 1
K
Cable Spool
Qty: 1
L
#8 × ⅝" Pan Head Screw
Qty: 7
M
3/ 1 6" Cable Loops
Qty: 5
N
Leg Cable - 1 meter
Qty: 1
O
Power Cable - 3.5 meters
Qty: 1
P
Feet
Qty: 2
Q
Standard or
Programmable Switch
Qty: 1
or
Sold Separately:
Worksurface
1 of 7
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Workrite Ergonomics FDEX30-48-X
Summary of Contents for Workrite Ergonomics FDEX30-48-X
- Page 1 Assembly & Installation Instructions: Fundamentals 2-Leg Workcenter FDEX30-48-X / FDLX30-48-X Parts Included #M6 × 14 mm Flat Head Cap Power Cable - 3.5 meters Master Leg Screw Qty: 1 Qty: 1 Qty: 20 Foot Glide Feet Qty: 4 Qty: 2 Companion Leg #12 ×...
- Page 2 Loading should be evenly distributed over table surfaces. “Payload Capacity” is the Workrite Ergonomics recommended maximum loading which includes the Workrite sourced table top.
- Page 3 Note: the right leg will be on your left and vice versa when the assembly is seen upside down. Right (Master) leg Left (Companion) leg Hardware at actual size #M6 × 14 mm Flat Head Cap Screw front Workrite Ergonomics | 800.959.9675 www.workriteergo.com 3 of 7...
- Page 4 3.3 Tighten first four (4) screws securely. Do not drill all the way through worksurface! Hardware at actual size #12 × ¾" Pan Head Laminate Top Screw 4 of 7 Workrite Ergonomics | 800.959.9675 www.workriteergo.com...
- Page 5 6.1 Attach Cable Spool (K) with the #12 × ¾"Pan Head Laminate Top Screw (I) to underside of worksurface. 6.2 Attach Cable Loops (M) to underside of worksurface using the #8 × ⅝” Pan Head Screw (L) making sure to wrap the Cable Loop around the cable prior to attaching. Workrite Ergonomics | 800.959.9675 www.workriteergo.com 5 of 7...
- Page 6 Never connect or remove leg or control cables when power is 8.2 Turn the table over into an upright position. connected! Doing so will damage the Master Leg. 8.3 Plug the Power Cord into the power outlet. 6 of 7 Workrite Ergonomics | 800.959.9675 www.workriteergo.com...
- Page 7 To clean the legs, apply cleaner to a soft cloth. Suggested cleaners: Windex or Formula 409. Do not use solvents and do not saturate or spray cleaners directly to table base. Workrite Ergonomics | 800.959.9675 www.workriteergo.com 7 of 7 #1500442- Rev B...
