Workrite Ergonomics Sentinel ST2E-54-72 Series Assembly/Installation Instructions

Assembly & Installation Instructions:
Sentinel Electric 54"–72" Base
ST2E-54-72-XXXXX-XX-X, ST3E-54-72-XXXXX-XX-X

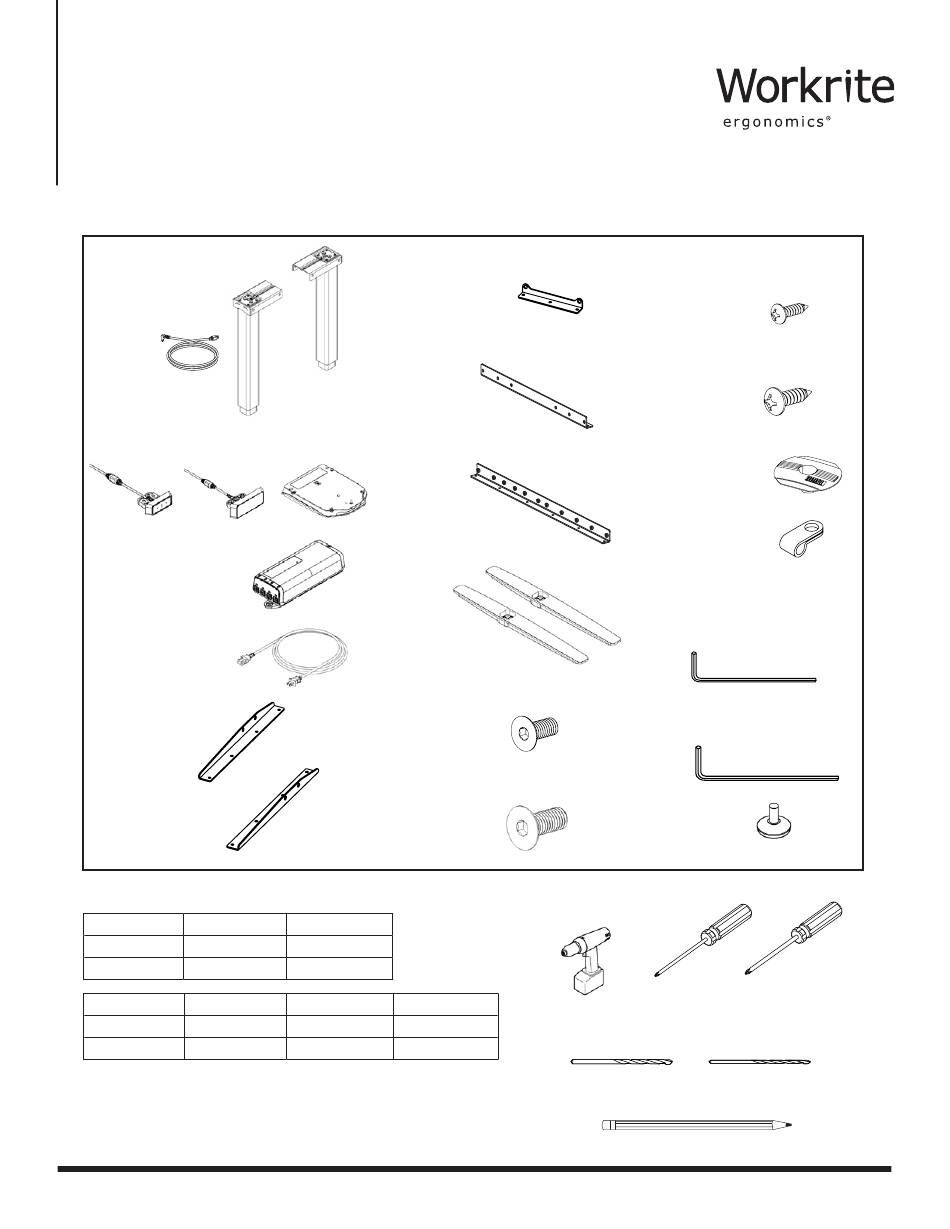

Parts Included
A
Electric Leg Assembly
w/Cable
Qty: 2
B
Switch (Standard, Programmable,
or Bluetooth)
Qty: 1
C
DMP240 Power Supply
Qty: 1
D
DMP240 Power Supply
Power Cord
Qty: 1
E
Left Motor Bracket
Qty: 1
F
Right Motor Bracket
Qty: 1
Worksurface Required, Sold Separately:
Rectangles Width
48–72"
24" Feet
30" Feet 48–72"
Offset Corners Width
24" & 30" Feet 58–72"
30" Feet 58–72"
Workrite Ergonomics | 800.959.9675 www.workriteergo.com
G
Short Motor Bracket
Qty: 2
H
Rear Bracket
Qty: 2
I
Connector Bracket
Qty:1
J
Foot
Qty: 2
K
M6 × 1.0P × 12 mm
Flat Head Allen Screw
Qty: 16
L
M8 × 1.25P × 20 mm
Flat Head Allen Screw
Qty: 4
Depth
23–24"
29–30"
Offset Depth
34–42" 23–24"
34–42" 29–30"
M
#8 × ⅝" Phillips Pan
Head Screw
Qty: 12
N
#12 × ¾" Phillips Pan
Head Screw
Qty: 36
O
Cable Spool
Qty: 2
P
P-Loop
Qty: 10
Q
4 mm Allen Wrench
Qty: 1
R
5 mm Allen Wrench
Qty: 1
S
Glide
Qty: 4
Tools Required:
#2 Phillips Bit
Cordless Drill
Screwdriver or
Driver/Drill
⅛" pilot drill bit
pencil
#3 Phillips Bit
Screwdriver or
Driver/Drill
" pilot drill bit
⁄
3
32
