Workrite Ergonomics Sierra SEHX7890-4272OC Series Assembly/Installation Instructions

Assembly & Installation Instructions:

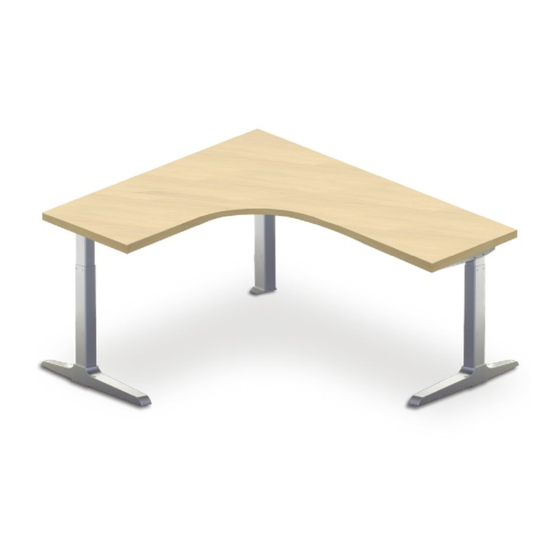

Sierra 3-Leg Desk in a Box
SEHX7890-4272OC-XXX-XX-X

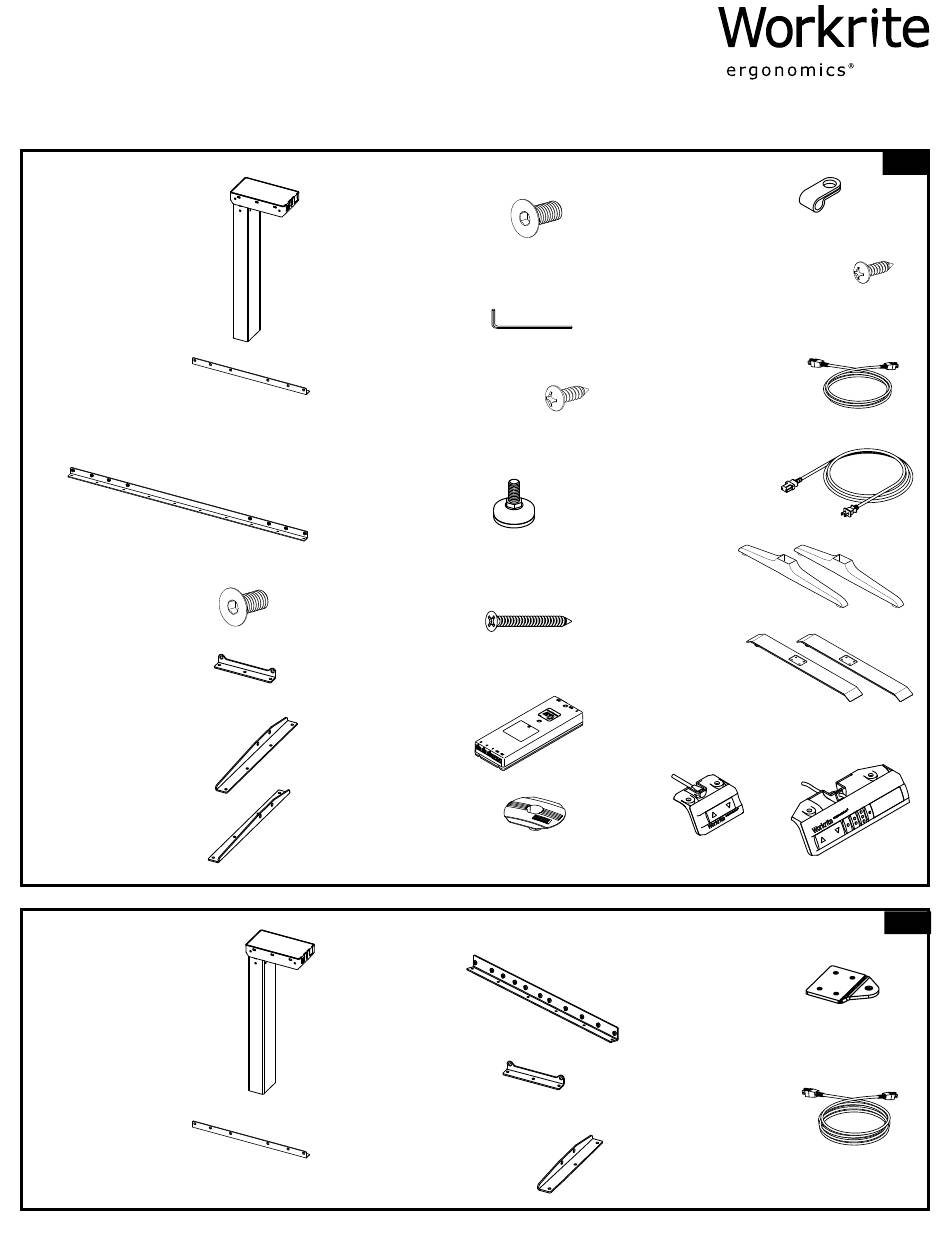

Parts Included, Frame Set
A
Leg
Qty: 2
B
Rear Bracket
Qty:2
C
Connector Bracket
Qty: 1
D
#M6 × 12 mm Flat Head
Cap Screw
Qty: 6
E
Short Bracket
Qty: 2
F
Left End Bracket
Qty: 1
G
Right End Bracket
Qty: 1
A
Leg
Qty: 1
B
Rear Bracket
Qty:1
Workrite Ergonomics | (800) 959–9675 www.workriteergo.com
I
#M6 × 14 mm Flat Head
Cap Screw
Qty: 30
J
4 mm Allen Wrench
Qty: 1
K
#12 × ¾" Pan Head
Laminate Top Screw
Qty: 61
M
0.4126 "
0.134" 3/4"
Foot Glides
0.216"
#12 Screw Size
Qty: 5
#3 Drive
N
#12 x 2" Flat Head Screw
Qty: 2
O
Control Box
Qty: 1
P
Cable Spool
Qty: 3
Sold separately: Worksurface
C
Connector Bracket
Qty: 1
E
Short Bracket
Qty: 1
H
Corner End Bracket
Qty: 1
Q
³⁄ 1 6" Cable Loops
Qty: 15
R
#8 × ⅝" Pan Head Screw
Qty: 18
S
Leg Cable, 1 Meter
Qty: 2
S
Style or Flat Foot Kit
Qty: 1
V
Power cord
Qty: 1
or
W
Standard or
Programmable Switch
Qty: 1
or
L
Corner Foot
Qty: 1
T
Leg Cable, 2 Meters
Qty: 1
Box 1
Box 2
1 of 11
