Workrite Ergonomics Sierra Privacy Panel Assembly Instructions

Parts by Carton

A
Sierra Tool Bar or Privacy Panel
Qty: 1
OR
Verify that you have all the hardware needed for the assembly.
Two persons might be required to install longest
versions of Tool Bar/Privacy Panel.
1

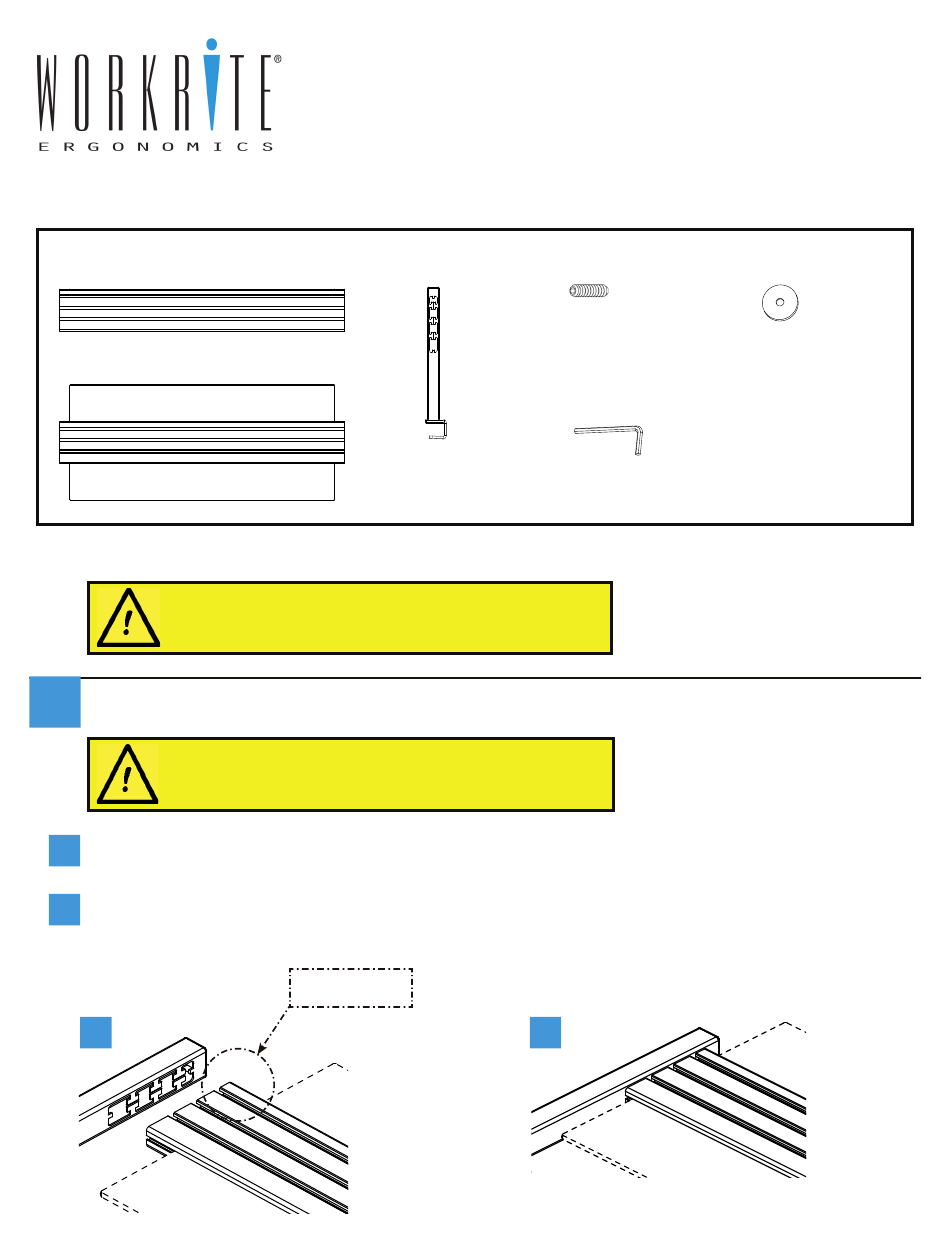

Attach Tool Bar or Privacy Panel to Stanchions

If you have purchased the SwingArm Sierra Tool
Bar mount (SAPAN01), mount it to the Tool Bar
BEFORE attaching Tool Bar to Stanchions.
a
Align Tool Bar with holes in Stanchion. Notice that the sections of the Tool Bar are not symmetri-
cal and position the Tool Bar with the short section on the top.
b
Push Tool Bar into holes in Stanchion. Be sure it is pushed all the way in.
Repeat for the other Stanchion.
B
a
Assembly Instructions
for Sierra Tool Bar and
Sierra Privacy Panel
B
Stanchion
Qty: 2
Note: Shortest
bar on top
A
WorkRite Ergonomics | 800.959.9675 www.workriteergo.com
C
Set screws
Qty: 2
E
" Allen Wrench
/
5
32
Qty: 1
b
#1500128 - Rev A
D
Washers
Qty: 2
