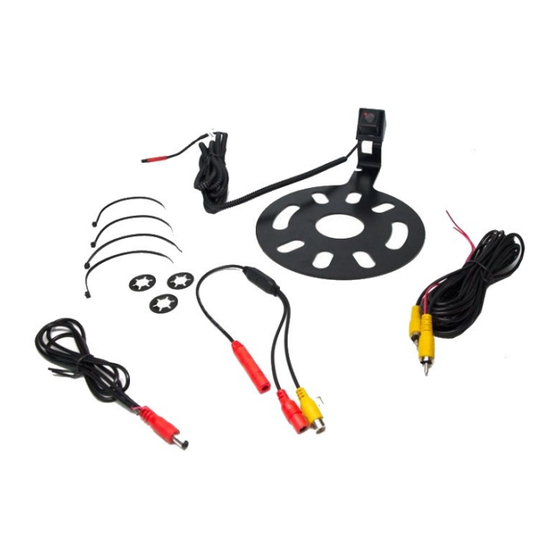

- Page 1 Instruction Manual Backup Camera For Jeep Wrangler (2007-2017) RVS-T16 Reverse With Confidence ™...
- Page 2 Warranty....... 12 Disclaimer....... 13 Rear View Safety...
- Page 3 NOTE! Please read all of the installation instructions carefully before installing the product. Improper installation will void manufacturer’s warranty. Congratulations on purchasing a Rear View Backup Camera System! With this manual you will be able to properly install and operate the unit. The Backup Camera System is intended to be installed as a supplement aid to your standard rear view mirror that already exists in your vehicle.
- Page 4 Rear View Camera System. If you back up while looking only at the monitor, you may cause Rear View Safety...
- Page 5 INSTALLATION: • Electric shock or product or disconnected wire may cause a malfunction may occur if this fire. product is installed incorrectly. • While installing the Rear View System be careful with the wire • Use this product within positioning in order to avoid wire the voltage range specified.
- Page 6 If you have questions about this product, contact: Rear View Safety 1797 Atlantic Avenue Brooklyn, NY 11233 Tel: 1.800.764.1028 IN NO EVENT SHALL SELLER OR MANUFACTURER BE LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
- Page 7 Before drilling please check that no cable or wiring is on the other side of the wall. Please clamp all wires securely to reduce the possibility of them being damaged while vehicle is in use. Keep all cables away from hot/moving parts and electrical noisy components. We recommend doing a benchmark test before installation to insure that all components are working properly.
- Page 8 1. Do not watch the video while driving unless you are monitoring the rear view camera display. Note: In order for this camera to function properly, you must use a radio harness and OBD genie. Choose your connection type based on the equipment you need. Rear View Safety...
- Page 9 RCA Installation Remove the spare tire and attach the camera to the spare tire carrier. Run the cable through the rear vent to the inside of the car. Remove the two plastic covers on tailgate to receive the camera cable. Remove the panels on the passenger side rear cargo area.
- Page 10 (2017 Jeep Wrangler). Zip tie or tape all connections to secure system. Put the panels and spare tire back on. The final step is to have a Chrysler Jeep Technician program the head unit so it recognizes the camera. Rear View Safety...
- Page 11 Camera Specifications Viewing Angle 170° Pixel Resolution 976 x 496 Operating Current ≤75MA TV System NTSC Power Supply 8-26V Video Output 1.0vp-p, 75Ω Operating Temperature –30°C ~ +80°C Storage Temperature –30°C ~ +80°C Minimum Illumination <0.1 Lux Waterproof Rating IP68 Reverse With Confidence ™...
- Page 12 OTHERS OR THE UNAUTHORIZED USE OF NONCONFORMING PARTS; THE DAMAGE IS DUE TO NORMAL WEAR AND TEAR, THIS DAMAGE IS DUE TO ABUSE, IMPROPER MAINTENANCE, NEGLECT OR ACCIDENT; OR THE DAMAGE IS DUE TO USE OF THE REAR VIEW SAFETY, INC. SYSTEM AFTER PARTIAL FAILURE OR USE WITH IMPROPER ACCESSORIES.
- Page 13 FOR ANY INJURY, LOSS OR DAMAGE, INCIDENTAL OR CONSEQUENTIAL, ARISING OUT OF THE USE OR INTENDED USE OF THE PRODUCT. IN NO EVENT SHALL REAR VIEW SAFETY AND/OR ITS AFFILIATES HAVE ANY LIABILITY FOR ANY LOSSES (WHETHER DIRECT OR INDIRECT, IN...
- Page 14 If you have any questions about this product, contact: Rear View Safety, Inc. 1797 Atlantic Avenue Brooklyn, NY 11233 800.764.1028 Better Cameras. Better Service. IT’S OUR GUARANTEE. Rear View Safety...
