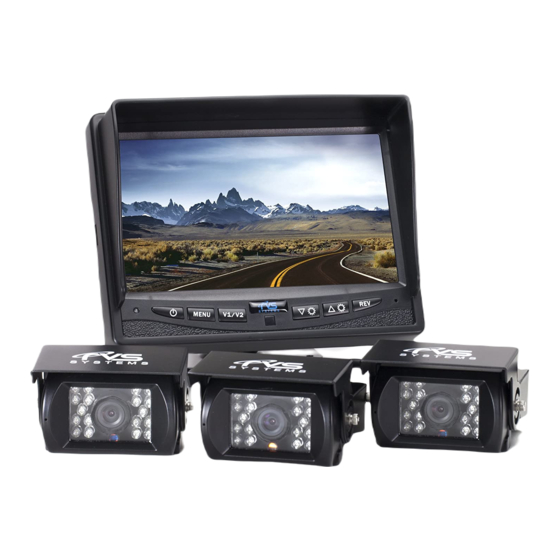

- Page 2 What’s in the Box? • 2 Color CCD Infra-red Weather Proof Cameras • 1-7" TFT LCD Color Monitor wi/Universal Mount/Stand & Wire • 1-3 Channel Multiplexer Control Unit • 2-66’ Extension Cable for Cameras • Remote Control • 1 Power Connection Wire •...
-
Page 3: Table Of Contents
Table of Contents Introduction...................4 Safety Information..............5-7 Before Beginning Installation ............8 Installation Guide................9 Wiring Camera & Monitor ............10-11 Installation Diagram ..............12 Installing the Monitor ..............13 Monitor Operation ..............14 Splitting & Splicing ..............15 Positioning ................. Multiplexer ..................17 Monitor Dimensions ..............18 Monitor Specifications ...............19 Camera Dimensions ..............20... -
Page 4: Introduction
In some jurisdictions, it is unlawful for a person to drive a motor vehicle equipped with a TV viewer or screen located forward of the back of the driver’s seat or in any location that is visible, directly or indirectly, to the driver while operating the vehicle. REAR VIEW SAFETY... -
Page 5: Safety Information
Safety Information Please read the entire manual and follow the instructions and warnings carefully. Failure to do so can cause serious damage and/or injury, including loss of life. Be sure to obey all applicable local traffic and motor vehicle regulations as it pertains to this product. - Page 6 Dropping the unit may cause is detected, disconnect the possible mechanical failure. system immediately. • Where the power cable may touch a metal case, cover the cable with a friction tape. A short circuit or disconnected wire may cause a fire. REAR VIEW SAFETY...
-
Page 7: Safety Information
Safety Information If you have questions about this product, contact: Customer Service: Rear View Safety 1797 Atlantic Avenue Brooklyn, NY 11233 Tel: 1.800.764.1028 IN NO EVENT SHALL SELLER OR MANUFACTURER BE LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT. -
Page 8: Before Beginning Installation
Install split grommets where applicable Step 3: Once all cables and wiring have been properly placed routed, perform a system function test by temporarily connecting he system. If the system seems to not be operating properly see troubleshooting REAR VIEW SAFETY... -
Page 9: Installation Guide
Installation Guide Camera 1. Attach camera bracket close to rear marker lights, centered on vehicle. 2. Attach camera to bracket using screws provided and adjust the angle. Cable 1. Be sure to position the cable properly. The aviation camera cable uses aircraft grade connectors which means the camera cable can be exposed to all weather elements, do not run the cable over sharp edges, do not kink the cable and keep away from HOT and rotating parts. -
Page 10: Wiring Camera & Monitor
ON and therefor can hooked or snagged. drain battery, therefore its • Camera: Drill a 20mm (0.8in) recommended to connect diameter hole into power to an ignition switched vehicle body near the camera accessory power source. and bracket. Insert camera REAR VIEW SAFETY... -
Page 11: Wiring Camera & Monitor
Wiring Camera & Monitor • Audio works on two ports of • There is a built-in voltage multiplexer and positive triggers regulator for our systems which must be triggered for audio to can handle 12-24 volts real operate. Port labeled “backup” consumption is 10 to 30 Volts. -
Page 12: Installation Diagram
Installation Diagram On Select Models Figure 1.1 Figure 1.2 Figure 1.3 Figure 1.4 Connection of U Bracket Connection of Flushmount Bracket REAR VIEW SAFETY... -
Page 13: Installing The Monitor
Installing the Monitor 20m Extension Cable Monitor 20m Extension Cable Video Out 3 Amp Fuse 1. DC12V-24V (red) Camera 3 2. Ground (black) 3. Port #3 (blue) 4. Port #2 (white) Camera 2 5. Port #1 (yellow) Camera 1 Reverse With Confidence ™... -
Page 14: Monitor Operation
To reset your system, press “MENU” 11 times and use arrows • To view images on other cameras, press “CAMERA SELECTION” 1 time for camera one, 2 times for camera two and 3 times for camera three. REAR VIEW SAFETY... -
Page 15: Splitting & Splicing
Splitting & Splicing Installing & Splitting Embedded Monitor Installing sun shield: Put shade cover on the display. Installing back cover: Put the monitor with shade cover in the back cover (only for embedded monitor) Splitting back cover: Hold monitor with 2 hands and detach with fingers, as indicated by arrows. -
Page 16: Positioning
Positioning Rear Cameras Positioning REAR VIEW SAFETY... -
Page 17: Multiplexer
Multiplexer Port #1 Port #2 Port #3 or DVD Backup Reverse With Confidence ™... -
Page 18: Monitor Dimensions
Monitor Dimensions Some Models 7” 5.25” Rotation Imager with sun shade Menu/ (Exit in Camera Power Selection Down Menu Selection Arrow On/Off Button Arrow Mode) power video select down/up menu mirror/normal image REAR VIEW SAFETY... -
Page 19: Monitor Specifications
Monitor Specifications TFT LCD Digital Monitor Screen Size 7” Dot Resolution x 3 (RGB) 480 Display Format 16:9 / 500:1 Display Brightness 400cd/m Viewing Angle U:50° / D:60° / R:70° Video Input 3 channel Video Source 1Vp-p, 75 Power Supply DC 12V-24V (+/- 10%) Power Consumption Operating Temperature... -
Page 20: Camera Dimensions
Camera Dimensions Rear Camera 3” 3.25” REAR VIEW SAFETY... -
Page 21: Camera Specifications
Camera Specifications Camera 1/4” Sharp® Color CCD Picture Elements 250,000 pixels Gamma Correction r=0.45 to 1.0 600 TV LinesPAL: 500H x Image Sensor 582 V NTSC: 510 x 492 Lens 2.1mm View Angle 130° Sync System Internal Synchronization Infrared distance 50 Feet (18 Infrared IR) Usable Illumination 0 Lux (IR On) -
Page 22: Troubleshooting
Verify Blue trigger is receiving monitor power • Verify camera is connected to cable Audio on Camera Verify chosen camera has audio Confirm that the Blue audio • • Verify volume setting trigger is connected to 12v+ • REAR VIEW SAFETY... -
Page 23: Warranty
Rear View Safety Inc. system after partial failure or use with improper accessories. -
Page 24: Disclaimer
In no event shall Rear View Safety and/or its affiliates have any liability for any losses (whether direct... - Page 25 Take Notes ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ Reverse With Confidence ™...
- Page 26 Take Notes ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ REAR VIEW SAFETY...
- Page 27 If you have any questions about this product, contact: Rear View Safety, Inc. 1797 Atlantic Avenue Brooklyn, NY 11233 800.764.1028 BETTER CAMERAS. BETTER SERVICE. IT’S OUR GUARANTEE.
