Summary of Contents for Rear view safety RVS-091406

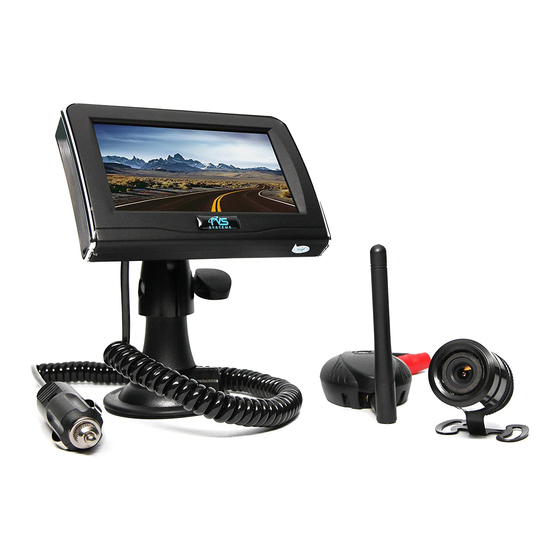

- Page 2 What’s in the Box? • 1 Color MT9V136 Weather Proof Camera with Infra-Reds • 1 4.3" TFT LCD Color Monitor • 1 Cigarette Lighter Power Cable • 1 Power Cable for Camera • 1 Digital Transmitter • Suction cup mount •...
-
Page 3: Table Of Contents
Table of Contents Introduction....................4 Safety Information ...................5-7 Settings/Maintenance..................8 Installation Guide ...................9-11 Positioning ....................12 Pairing/Connecting..................13 Monitor Dimensions...................14 Monitor Specifications................15 Camera Dimensions .................. Camera Specifications................17 Troubleshooting...................18 Warranty .......................19 Disclaimer .....................20... -
Page 4: Introduction
TV viewer or screen located for- ward of the back of the driver’s seat or in any location that is vis- ible, directly or indirectly, to the driver while operating the vehicle. REAR VIEW SAFETY... -
Page 5: Safety Information
Safety Information Please read the entire manual and follow the instructions and warnings carefully. Failure to do so can cause serious damage and/or injury, including loss of life. Be sure to obey all applica- ble local traffic and motor vehicle regulations as it pertains to this product. - Page 6 Dropping the unit may cause is detected, disconnect the possible mechanical failure. system immediately. • Where the power cable may touch a metal case, cover the cable with a friction tape. A short circuit or disconnected wire may cause a fire. REAR VIEW SAFETY...
- Page 7 Safety Information If you have questions about this product, contact: Customer Service: Rear View Safety 1797 Atlantic Avenue Brooklyn, NY 11233 Tel: 800.764.1028 IN NO EVENT SHALL SELLER OR MANUFACTURER BE LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
-
Page 8: Settings/Maintenance
• Do not use alcohol, benzene or thinner to clean the camera. This will cause discoloration. To clean the camera, wipe with a clean cloth dampened with mild cleaner diluted with water and then wipe with a dry cloth. REAR VIEW SAFETY... -
Page 9: Installation Guide
Installation Guide Diagram A Up Arrow Power & Menu Select Down Arrow Monitor Diagram B Pair Button DC Female DC Male Power+(Red) Power-(Black) BMW Male BMW Female Transmitter Reverse With Confidence ™... - Page 10 5. Determine the best route for the Camera Cable from the top of your license plate to the Transmitter. You may need to drill a small hole in the panel behind where the license plate is situ- ated. REAR VIEW SAFETY...
-
Page 11: Installation Guide
Installation Guide 6. While sitting in the driver’s seat of the car with the key in the ignition position. The monitor will automatically start when vehicle is put in reverse. If when you place the vehicle in reverse there is no image, you may need to pair the camera with the monitor. -
Page 12: Positioning
Positioning REAR VIEW SAFETY... -
Page 13: Pairing/Connecting
Pairing & Connecting Pairing is not necessary as the unit has already been paired. If you are not able to connect the camera, please try to pair the camera by the following steps: 1. Press “Pair” button See page 9, Diagram B) on the Wireless Digital Transmitter. -
Page 14: Monitor Dimensions
Monitor Dimensions 5” 4.3” 3.5” 1” REAR VIEW SAFETY... -
Page 15: Monitor Specifications
Monitor Speciifications TFT LCD Monitor Screen Size 4.3” Dot Resolution 1400( ) x 234 ( V ) Display Format 16:9 Display Brightness 350cd/m Viewing Angle 90° Min Video Input 1 channel Video Source 1Vp-p, 75 Power Supply DC 12V-24V (+/- 10%) Power Consumption Operating Temperature -10°C ~ +65°... -
Page 16: Camera Dimensions
Camera Dimensions REAR VIEW SAFETY... -
Page 17: Camera Specifications
Camera Specifications Camera MT9V136 Picture Elements 250,000 pixels Gamma Correction r=0.45 to 1.0 Image Sensor 420TV lines, PAL 500(h)x 582(v),NTSC:510(h)x492(v) Lens 2.1mm View Angle 130° Sync System Internal Synchronization Infrared distance 30 Feet (9 Infrared) Usable Illumination 0 Lux (IR On) Power Source DC 12V-24V (+/- 10%) S/N Ratio... -
Page 18: Troubleshooting
Verify Blue trigger is receiving monitor power • Verify camera is connected to cable Audio on Camera Verify chosen camera has audio Confirm that the Blue audio • • Verify volume setting trigger is connected to 12v+ • REAR VIEW SAFETY... -
Page 19: Warranty
Rear View Safety, Inc. system after partial failure or use with im- proper accessories. -
Page 20: Disclaimer
In no event shall Rear View Safety and/or its affiliates have any liability for any losses (whether direct... - Page 21 Take Notes Reverse With Confidence ™...
- Page 22 If you have any questions about this product, contact: Rear View Safety, Inc. 1797 Atlantic Avenue Brooklyn, NY 11233 800.764.1028 BETTER CAMERAS. BETTER SERVICE. IT’S OUR GUARANTEE.
