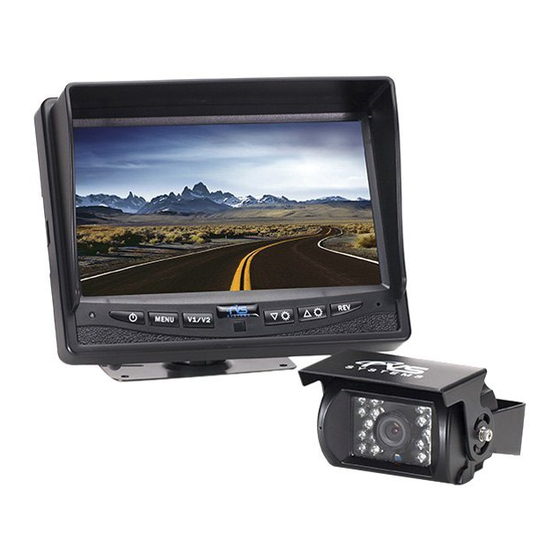

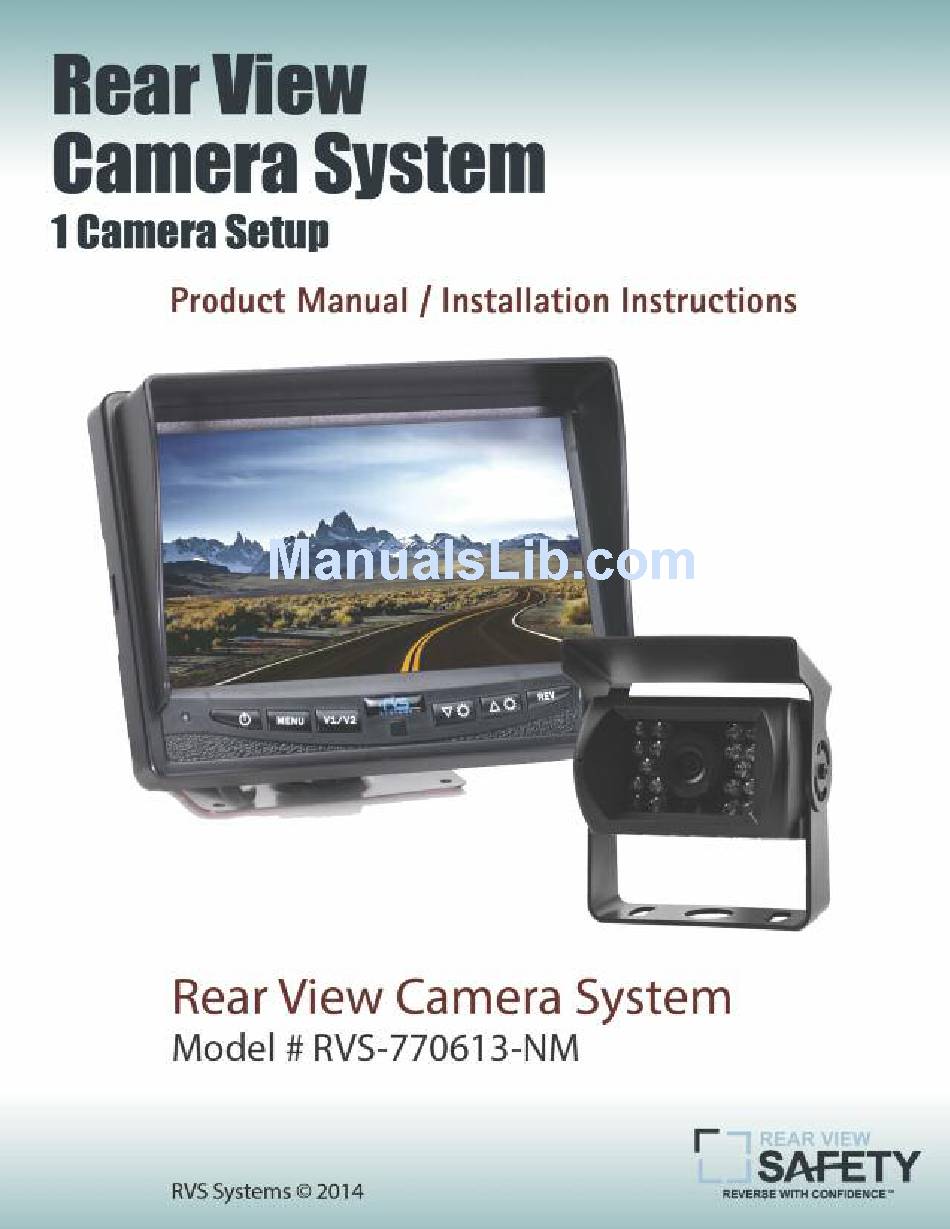

- Page 2 • 1 Power Harness • 1 66’ Camera Cable • 1 Remote Control • 1 Power Connection Wire • 1 Double RCA + Power Converter (to connect external audio, video and power) • 1 Screw Kit for installation REAR VIEW SAFETY...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................4 Safety Information ..................5-7 Before Beginning Installation..............8 Installation Guide..................9 Wiring Camera & Monitor..............10-11 Installation Diagram .................12 Installing the Monitor ................13 Monitor Operation..................14 Splitting & Splicing ...................15 Positioning....................Monitor Dimensions..................17 Monitor Specifications................18 Camera Dimensions...................19 Camera Specifications................20 Troubleshooting..................21 Warranty.......................22 Disclaimer ....................23... -
Page 4: Introduction
In some jurisdictions, it is unlawful for a person to drive a motor vehicle equipped with a TV viewer or screen located forward of the back of the driver’s seat or in any location that is visible, directly or indirectly, to the driver while operating the vehicle. REAR VIEW SAFETY... -
Page 5: Safety Information
Safety Information Please read the entire manual and follow the instructions and warnings carefully. Failure to do so can cause serious damage and/or injury, including loss of life. Be sure to obey all applica- ble local traffic and motor vehicle regulations as it pertains to this product. - Page 6 Dropping the unit may cause is detected, disconnect the possible mechanical failure. system immediately. • Where the power cable may touch a metal case, cover the cable with a friction tape. A short circuit or disconnected wire may cause a fire. REAR VIEW SAFETY...
- Page 7 Safety Information If you have questions about this product, contact: Customer Service: Rear View Safety 1797 Atlantic Avenue Brooklyn, NY 11233 Tel: 800.764.1028 IN NO EVENT SHALL SELLER OR MANUFACTURER BE LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
-
Page 8: Before Beginning Installation
Install split grommets where applicable. Step 3: Once all cables and wiring have been properly routed, perform a system function test by temporarily connecting the system. If the system seems to not be operating properly see troubleshooting (page 22). REAR VIEW SAFETY... -
Page 9: Installation Guide
Installation Guide Cable 1. Be sure to position the cable properly. The camera cable uses aircraft grade connectors which means the camera cable can be exposed to all weather elements. Do not run the cable over sharp edges, do not kink the cable and keep away from HOT and rotating parts. - Page 10 Therefore, if you wish to use nect the BLUE wire to reverse multiple triggers, do not power (or any power source attach the blue trigger to that comes on only in reverse). constant power. • The other channels can simi- REAR VIEW SAFETY...
-
Page 11: Wiring Camera & Monitor
Wiring Camera & Monitor • Audio: There is audio on • There is a built-in voltage channels 2 and 3. On channel 3 regulator for our systems which the blue trigger wire must be can handle 12-24 volts. Real energized (12V) to activate the consumption is 10 to 30 Volts. -
Page 12: Installation Diagram
Installation Diagram Figure 1.1 Figure 1.2 Figure 1.3 Figure 1.4 Connection of Connection of U Bracket Flushmount Bracket REAR VIEW SAFETY... -
Page 13: Installing The Monitor
Installing the Monitor 66ft Extension Cable Monitor 3 Amp Fuse Optional Camera Available Camera Reverse With Confidence ™... -
Page 14: Monitor Operation
• Trigger source: Change the channel destination for each trigger. • Trigger delay: Adjust the delay time on each trigger. • Distance Grid: Choose what channel the distance grid will display on. • Grid Position: Move the grid-lines. • Reset: Reset all settings to factory default. REAR VIEW SAFETY... -
Page 15: Splitting & Splicing
Splitting & Splicing Installing sun shield: Put shade cover on the display. Installing back cover: Put the monitor with shade cover in the back cover (only for embedded monitor) Splitting back cover: Hold monitor with 2 hands and detach with fingers, as indicated by arrows. -
Page 16: Positioning
Positioning REAR VIEW SAFETY... -
Page 17: Monitor Dimensions
Monitor Dimensions table of contents 7” 5.25” Rotation Imager Menu/ Camera (Exit in Down Power Selection Menu Selection Arrow Arrow On/Off Button Mode) power video select down/up menu mirror/ normal image Reverse With Confidence ™... -
Page 18: Monitor Specifications
Power Supply DC 12V-24V (+/- 10%) Power Consumption Operating Temperature -30°C ~ +80° C Video System Auto NTSC/PAL Overall Dimensions 7” x 5.25” x 1” Weight 400G Impact Rating Dot Pitch 0.192 x 0.1805 Sync System Internal REAR VIEW SAFETY... -
Page 19: Camera Dimensions
Camera Dimensions table of contents 3” 3.25” Reverse With Confidence ™... -
Page 20: Camera Specifications
0 Lux (IR On) Power Source DC 12V-24V (+/- 10%) S/N Ratio More than 48dB Electronic Iris 1/50, 1/60-1/100,000sec Video Output 1Vp.p 75ohm IR Switch Control ACDS Automatic Control Impact Rating 20G Vibration/100G Shock Operating Temperature -40°C~80°C Storage Temperature -40°C~60°C REAR VIEW SAFETY... -
Page 21: Troubleshooting
Troubleshooting Monitor Displays Blue Screen & Displays No Signal • Do a hard reset, unplug all trigger on power harness is put cables and power cables leave to power 12v+. out for 1 minute and then If the problem still persists, ver- ify that alternate ports work. -
Page 22: Warranty
Rear View Safety, Inc. system after partial failure or use with improper accessories. -
Page 23: Disclaimer
In no event shall Rear View Safety and/or its affiliates have any liability for any losses (whether direct... - Page 24 Take Notes ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ REAR VIEW SAFETY...
- Page 25 Reverse With Confidence ™...
- Page 26 If you have any questions about this product, contact: Rear View Safety, Inc. 1797 Atlantic Avenue Brooklyn, NY 11233 800.764.1028 BETTER CAMERAS. BETTER SERVICE. IT’S OUR GUARANTEE.
