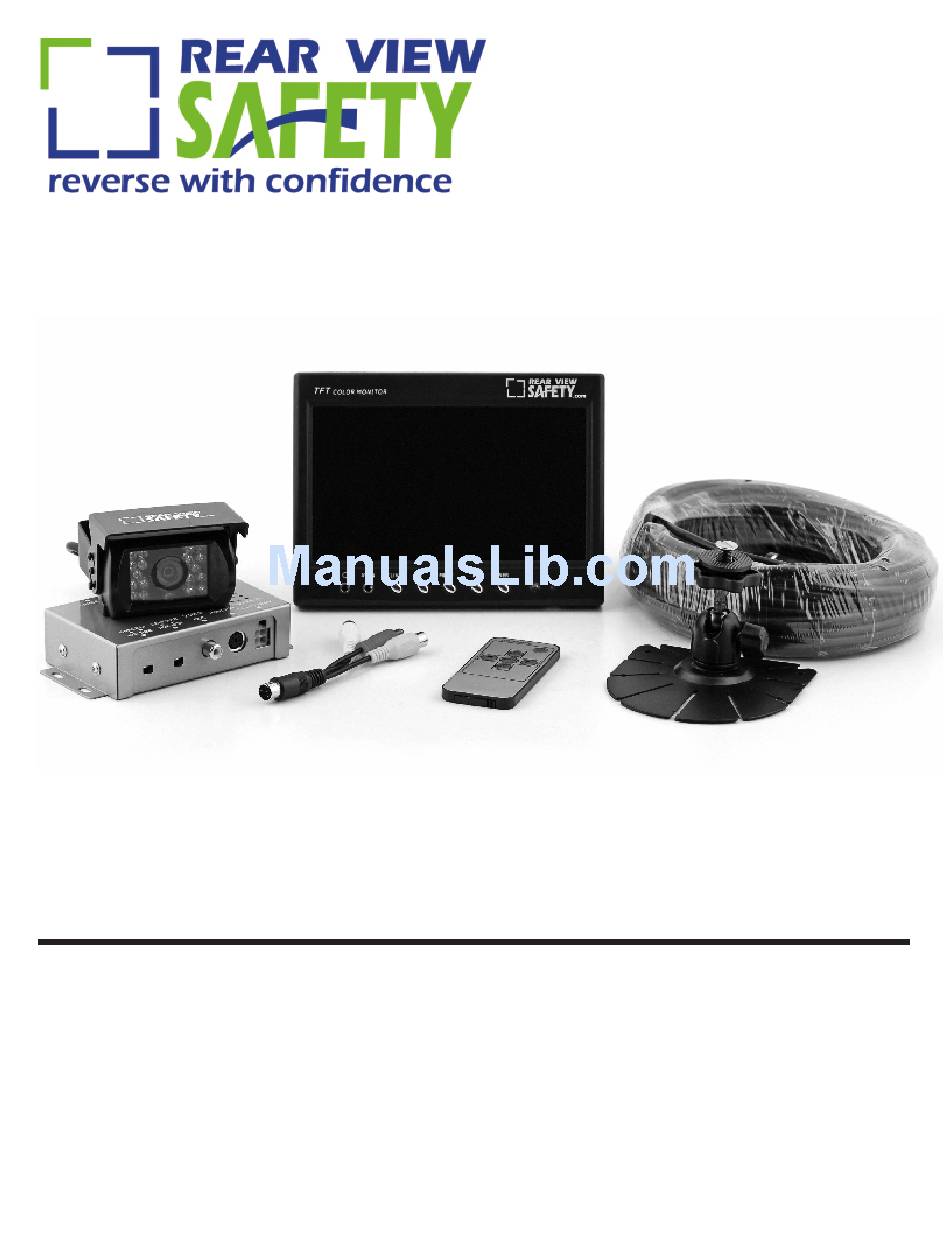

- Page 1 Product Manual InstalIation Instructions Rear View Camera System RVS-770613 © 2009-2010 Rear View Safety Inc.
-
Page 3: Table Of Contents
Table of Contents Important Notice Warning Safety Precautions Before You Begin Installation Installation Diagram Installation Features Specifications Positioning Dimensions - Camera Dimensions - Monitor Product Info - Camera Product Info - Monitor Monitor Control and Operation Troubleshooting Warranty... -
Page 4: Important Notice
Rear View properly install and operate the unit. Backup Camera System. Your RVS-770613 Backup The RVS-770613 Backup Camera Camera System is designed System is intended to be installed as to provide you with many a supplement aid to your standard years of trouble-free. -
Page 5: Warning
Information IN NO EVENT SHALL SELLER Customer Service OR MANUFACTURER BE LIABLE FOR ANY DIRECT OR Rear View Safety Inc. CONSEQUENTIAL DAMAGES 1680 Atlantic Ave # 301 OF ANY NATURE, OR LOSSES Brooklyn NY 11213 OR EXPENSES RESULTING... -
Page 6: Before You Begin Installation
BEFORE YOU BEGIN INTALLATION: Before Drilling please check that no cable or wiring is on other side of wall. Please clamp all wires securely to reduce the possibility of them being damaged while vehicle is in use. Keep all cables away from hot or moving parts and electrical noisy components. -
Page 7: Installation Diagram
Installation Diagram Notes When installing the 1 (one) camera setup use port # labeled “backup” on some models its port #2 and others port #3 To automatically turn camera ON while shifting reverse, connect blue wire to reverse gear light/fuse and plug camera into port # labeled “Backup”. -
Page 8: Installation
Installation Notes To automatically have camera and monitor turn ON when vehicles activates, simply twist BLUE positive trigger 12V+ to Red Power line 12V+ and wire to ignition power which can be an accessory switch/fuse line. When using a 2 camera setup, use ports #'s 2 and 3 For Safety reasons, on some 1 camera setup systems, when port # “Backup”... -
Page 9: Features
Features/Specifications Features Free voltage (DC12V or Camera 1/Camera 2 DC24V) available for (Mirror/Normal image) Video distributor and booster to Automatically switches to reverse maintain image quality. image when backing vehicle. Auto switcher for video signal. Night Vision: 18 powerful LEDs allow seeing rearward in total Audio/Video output (RCA terminal). -
Page 10: Specifications
Specifications Pin # Description 1 - Red DC12V-24V Power Input 2 - Black Ground 3 - Blue Reverse Gear Power Input... -
Page 11: Positioning
Positoning Backup Camera Monitor... -
Page 12: Dimensions - Camera
Dimensions - Camera (mm) -
Page 13: Dimensions - Monitor
Dimensions - Monitor (mm) -
Page 14: Product Info - Camera
Product Info DC 12V-24V... -
Page 15: Product Info - Monitor
Product Info 7”(L) x 5” (H) x 1”(D) Rear View Safety Inc. reserve the right to change or modify product specifications or measurements without notice... -
Page 16: Monitor Control And Operation
Monitor Control and Operation 4 5 6 Earphone jack. 2 Audio/Video devices input jack. Lower volume. When in Menu mode: selection key. V1/V2 - Channel selection. Switches from Camera 1, 2 and 3. 5 Menu key: Brightness ■ Contrast ■ Color ■... -
Page 17: Troubleshooting
Troubleshooting Monitor will not power up / no backlight on power button • Check fuse • Check 12v+ to monitor. • Check ground connection. No image on screen • Verify monitor is on correct camera input. • Verify cable is connected to monitor. •... -
Page 18: Warranty
Warranty Disclaimers NO WARRANTY, ORAL OR WRITTEN, EXPRESSED OR IMPLIED, OTHER THE ABOVE WARRANTY IS MADE WITH REGARD TO THIS REAR VIEW SAFETY INC. REAR VIEW SAFETY INC. DISCLAIMS ANY IMPLIED WARRANTY OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE AND ALL OTHER WARRANTIES. - Page 21 Rear View Safety, Inc. 1680 Atlantic Ave # 301 Brooklyn, N.Y. 11213 (800) 764-1028 www.rearviewsafety.com...
