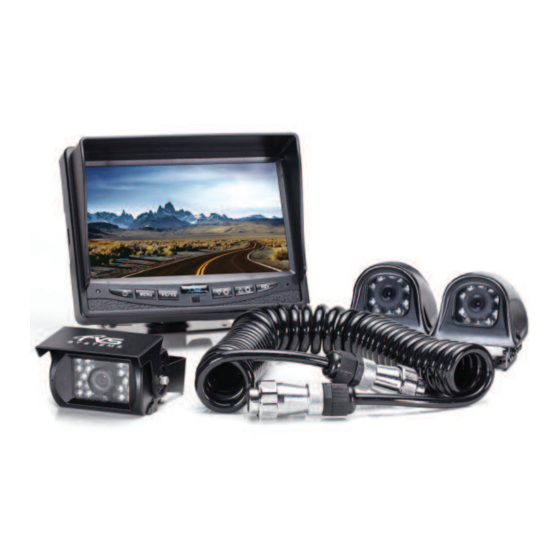

- Page 2 What’s in the Box? • Three way Quick connect • 2 Color CCD Infra-red Weather Proof Cameras • 1 7" TFT LCD Color Monitor wi/Universal Mount/Stand & Wire • 1 3 Channel Multiplexer Control Unit • 2 66’ Extension Cable for Cameras •...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................4 Safety Information ..................5-7 Before Beginning Installation..............8 Installation Guide..................9 Wiring Camera & Monitor..............10-11 The Quick Connect..................12 Installation Diagram .................13 Installing the Monitor ................14 Monitor Operation..................15 Splitting & Splicing ...................16 Positioning....................Multiplexer ....................18 Monitor Dimensions..................19 Monitor Specifications................20 Cameras Dimensions &... -
Page 4: Introduction
TV viewer or screen located for- ward of the back of the driver’s seat or in any location that is vis- ible, directly or indirectly, to the driver while operating the vehicle. REAR VIEW SAFETY... -
Page 5: Safety Information
Safety Information Please read the entire manual and follow the instructions and warnings carefully. Failure to do so can cause serious damage and/or injury, including loss of life. Be sure to obey all applica- ble local traffic and motor vehicle regulations as it pertains to this product. - Page 6 Dropping the unit may cause is detected, disconnect the possible mechanical failure. system immediately. • Where the power cable may touch a metal case, cover the cable with a friction tape. A short circuit or disconnected wire may cause a fire. REAR VIEW SAFETY...
- Page 7 Safety Information If you have questions about this product, contact: Customer Service: Rear View Safety 1797 Atlantic Avenue Brooklyn, NY 11233 Tel: 1.800.764.1028 IN NO EVENT SHALL SELLER OR MANUFACTURER BE LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
-
Page 8: Before Beginning Installation
Install split grommets where applicable. Step 3: Once all cables and wiring have been properly routed, perform a system function test by temporarily connecting the system. If the system seems to not be operating properly see troubleshooting (page 22). REAR VIEW SAFETY... -
Page 9: Installation Guide
Installation Guide Camera 1. Attach camera bracket close to rear marker lights, centered on vehicle. 2. Attach camera to bracket using screws provided and adjust the angle. Cable 1. Be sure to position the cable properly. The aviation camera cable uses aircraft grade connectors which means the camera cable can be exposed to all weather elements. -
Page 10: Wiring Camera & Monitor
Therefore, if you wish to use nect the BLUE wire to reverse multiple triggers, do not power (or any power source attach the blue trigger to that comes on only in reverse). constant power. • The other channels can simi- REAR VIEW SAFETY... -
Page 11: Wiring Camera & Monitor
Wiring Camera & Monitor • Audio: There is audio on • There is a built-in voltage channels 2 and 3. On channel 3 regulator for our systems which the blue trigger wire must be can handle 12-24 volts. Real energized (12V) to activate the consumption is 10 to 30 Volts. -
Page 12: The Quick Connect
The cable is then run from the cab to the back of the tow vehi- cle where it is mounted (it can be mounted flush) to the vehicle. 3. The third segment is mounted to front of the trailer. Coming out REAR VIEW SAFETY... -
Page 13: Installation Diagram
Installation Diagram Figure 1.1 Figure 1.2 Figure 1.3 Figure 1.4 Connection of Connection of U Flushmount Bracket Bracket Reverse With Confidence ™... -
Page 14: Installing The Monitor
Installing the Monitor REAR VIEW SAFETY... -
Page 15: Monitor Operation
Monitor Operation DOWN CAMERA ARROW SELECTION ARROW POWER ROTATE ON / OFF IMAGE (Back/Exit when in Menu Mode) • Use "BRIGHTNESS" "CONSTRAST" "SATURATION" “SHARPNESS" to adjust the image properties. • Day/Night Mode: Mode 1 will turn on the Back-lit buttons. Mode 2 will turn on the auto-dim feature on the monitor. -
Page 16: Splitting & Splicing
(see below) 1. Red - Power (+) 2. Yellow - Video 3. Green - Mirror / Normal Imaging 4. White - Audio 5. Black - Ground (-) REAR VIEW SAFETY... -
Page 17: Positioning
Positioning Reverse With Confidence ™... -
Page 18: Multiplexer
Multiplexer Port #1 Port #2 Port #3 or DVD Backup REAR VIEW SAFETY... -
Page 19: Monitor Dimensions
Monitor Dimensions 7” 5.25” Rotation Imager Menu/ Camera (Exit in Down Power Selection Menu Selection Arrow Arrow On/Off Button Mode) power video select down/up menu mirror/ normal image Reverse With Confidence ™... -
Page 20: Monitor Specifications
Power Supply DC 12V-24V (+/- 10%) Power Consumption Operating Temperature -30°C ~ +80° C Video System Auto NTSC/PAL Overall Dimensions 7” x 5.25” x 1” Weight 400G Impact Rating Dot Pitch 0.192 x 0.1805 Sync System Internal REAR VIEW SAFETY... - Page 21 Rear Camera Dimensions Rear Camera 3” 3.25” Reverse With Confidence ™...
-
Page 22: Specifications
DC 12V-24V (+/- 10%) S/N Ratio More than 48dB Electronic Iris 1/50, 1/60-1/100,000sec Video Output 1Vp.p 75 ohm IR Switch Control ACDS Automatic Control Impact Rating 20G Vibration/100G Shock -40°C ~ 80°C Operating Temperature -40°C ~ 60°C Storage Temperature REAR VIEW SAFETY... - Page 23 Side Camera Dimensions Side Camera Reverse With Confi-...
- Page 24 S/N Ratio More than 48dB Electronic Iris 1/50, 1/60-1/100,000sec Video Output 1Vp-p 75 Ω IR Switch Control ACDS Automatic Control Impact Rating 20G Vibration/100G Shock Operating Temperature -40°C - +80°C/RH 95%Max Storage Temperature -30°C - +60°C/RH 95%Max REAR VIEW SAFETY...
-
Page 25: Troubleshooting
Troubleshooting Monitor Displays Blue Screen & Displays No Signal • Do a hard reset, unplug all • Verify that the blue positive cables and power cables from trigger on power harness is multiplexer (silver box) leave put to power 12v+. out for 1 minute and then If the problem still persists, ver- re-connect them. -
Page 26: Warranty
Rear View Safety Inc. system after partial failure or use with im- proper accessories. -
Page 27: Disclaimer
In no event shall Rear View Safety and/or its affiliates have any liability for any losses (whether direct... - Page 28 If you have any questions about this product, contact: Rear View Safety, Inc. 1797 Atlantic Avenue Brooklyn, NY 11233 800.764.1028 BETTER CAMERAS. BETTER SERVICE. IT’S OUR GUARANTEE.
