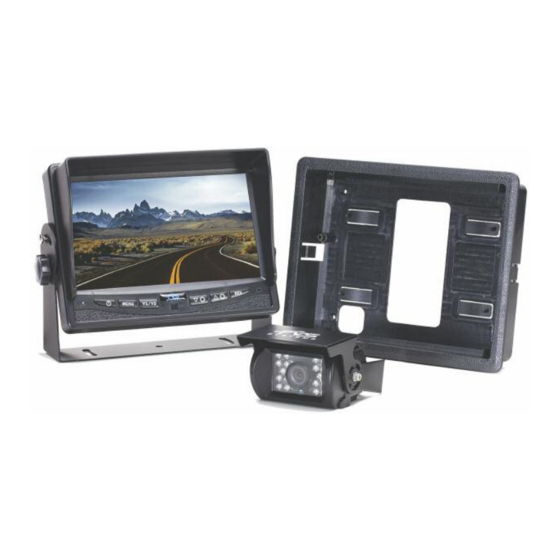

  • Page 2 What’s in the Box? • 1 Color CCD Infra-red Weatherproof Camera • 1 7" TFT LCD Color Monitor w/Universal Mount/Stand & Wire • 1 3 Channel Multiplexer Control Unit • 1 66’ Camera Cable • 1 Remote Control • 1 Power Connection Wire •...
  • Page 3: Table Of Contents

    Table of Contents Introduction ....................4 Safety Information ..................5-7 Before Beginning Installation..............8 Installation Guide..................9 Wiring Camera & Monitor..............10-11 Installation Diagram .................12 Installing the Monitor ................13 Monitor Operation..................14 Splitting & Splicing ...................15 Positioning....................Multiplexer ....................17 Monitor Dimensions..................18 Monitor Specifications................19 Camera Dimensions...................20 Camera Specifications ................21 Troubleshooting..................22 Warranty.......................23...
  • Page 4: Introduction

    In some jurisdictions, it is unlawful for a person to drive a motor vehicle equipped with a TV viewer or screen located forward of the back of the driver’s seat or in any location that is visible, directly or indirectly, to the driver while operating the vehicle. REAR VIEW SAFETY...
  • Page 5: Safety Information

    Safety Information Please read the entire manual and follow the instructions and warnings carefully. Failure to do so can cause serious damage and/or injury, including loss of life. Be sure to obey all applica- ble local traffic and motor vehicle regulations as it pertains to this product.
  • Page 6 Dropping the unit may cause is detected, disconnect the possible mechanical failure. system immediately. • Where the power cable may touch a metal case, cover the cable with a friction tape. A short circuit or disconnected wire may cause a fire. REAR VIEW SAFETY...
  • Page 7 Safety Information If you have questions about this product, contact: Customer Service: Rear View Safety 1797 Atlantic Avenue Brooklyn, NY 11233 Tel: 1.800.764.1028 IN NO EVENT SHALL SELLER OR MANUFACTURER BE LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
  • Page 8: Before Beginning Installation

    Install split grommets where applicable. Step 3: Once all cables and wiring have been properly routed, perform a system function test by temporarily connecting the system. If the system seems to not be operating properly see troubleshooting (page 22). REAR VIEW SAFETY...
  • Page 9: Installation Guide

    Installation Guide Camera 1. Attach camera bracket close to rear marker lights, centered on vehicle. 2. Attach camera to bracket using screws provided and adjust the angle. Cable 1. Be sure to position the cable properly. The aviation camera cable uses aircraft grade connectors which means the camera cable can be exposed to all weather elements, do not run the cable over sharp edges, do not kink the cable and keep away from HOT and rotating parts.
  • Page 10: Wiring Camera & Monitor

    Camera: Drill a 20mm (0.8in) drain battery. Therefore it is diameter hole into vehicle recommended to connect body near the camera and power to an ignition switched bracket. Insert camera cable into accessory power source. vehicle (be careful not to kink REAR VIEW SAFETY...
  • Page 11 Wiring Camera & Monitor • Audio works on two ports of consumption is 10 to 30 Volts. multiplexer and positive triggers • When installing all THREE (3) must be triggered for audio to cameras, use all three ports and operate. These are port labeled connect all positive triggers to “backup”...
  • Page 12: Installation Diagram

    Installation Diagram Figure 1.1 Figure 1.2 Figure 1.3 Figure 1.4 Connection of Connection of U Flushmount Bracket Bracket REAR VIEW SAFETY...
  • Page 13: Installing The Monitor

    Installing the Monitor 66ft Extension Cable Monitor Optional Video Out Camera Available 3 Amp Fuse 1. DC12V-24V (red) 2. Ground (black) 3. Port #3 (blue) 4. Port #2 (white) 5. Port #1 (yellow) Camera Reverse With Confidence ™...
  • Page 14: Monitor Operation

    Auto Power: On: Monitor will automatically turn on when powered. Off: Monitor will only turn on when triggered. Auto: Monitor will follow previous state. • volume P” and “DOWN” buttons. • Reset: Reset settings to factory default REAR VIEW SAFETY...
  • Page 15: Splitting & Splicing

    Splitting & Splicing Installing sun shield: Put shade cover on the display. Installing back cover: Put the monitor with shade cover in the back cover (only for embedded monitor) Splitting back cover: Hold monitor with 2 hands and detach with fingers, as indicated by arrows.
  • Page 16: Positioning

    Positioning...
  • Page 17: Multiplexer

    Multiplexer Port #1 Port #2 Port #3 or DVD Backup Reverse With Confidence ™...
  • Page 18: Monitor Dimensions

    Monitor Dimensions 7” 5.25” Rotation Imager Menu/ Camera Down (Exit in Power Selection Selec- Menu Arrow Arrow On/Off Button tion Mode) power video select down/up menu mirror/normal image REAR VIEW SAFETY...
  • Page 19: Monitor Specifications

    Monitor Specifications TFT LCD Digital Monitor Screen Size 7” Dot Resolution x 3 (RGB) x 480 Display Format 16:9 / 500:1 Display Brightness 400cd/m Viewing Angle U:50° / D:60° / R:70° Video Input 3 channel Video Source 1Vp-p, 75 Power Supply DC 12V-24V (+/- 10%) Power Consumption Operating Temperature...
  • Page 20: Camera Dimensions

    Camera Dimensions 3” 3.25” REAR VIEW SAFETY...
  • Page 21: Camera Specifications

    Camera Specifications Camera 1/4” Sharp® Color CCD Picture Elements 250,000 pixels r=0.45 to 1.0 Gamma Correction 600 TVL NTSC 769H x Image Sensor 494 V, PAL 752H x 582V 2.1mm Lens View Angle 130° Sync System Internal Synchronization Infrared distance 50 Feet (18 Infrared IR) 0 Usable Illumination Lux (IR On)
  • Page 22: Troubleshooting

    Verify Blue trigger is receiving monitor power • Verify camera is connected to cable Audio on Camera Verify chosen camera has audio Confirm that the Blue audio • • Verify volume setting trigger is connected to 12v+ • REAR VIEW SAFETY...
  • Page 23: Warranty

    Rear View Safety, Inc. system after partial failure or use with im- proper accessories.
  • Page 24: Disclaimer

    In no event shall Rear View Safety and/or its affiliates have any liability for any losses (whether direct...
  • Page 25 Take Notes ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ ________________________________________ Reverse With Confidence ™...
