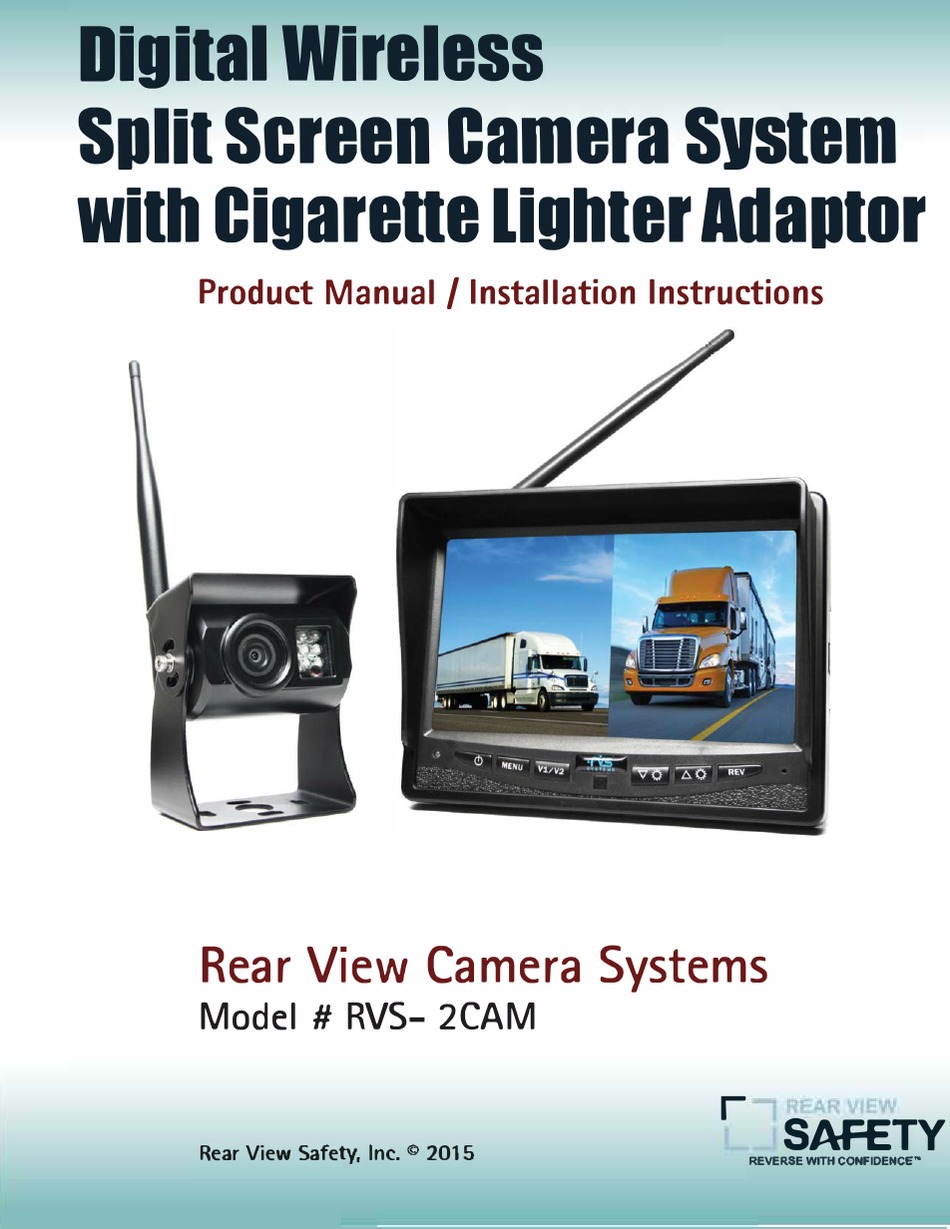

Digital Wireless
Digital Wireless
Split screen camera svstem
Split screen camera svstem
with Cigarette lighter Adaptor
with Cigarette lighter Adaptor
Product Manual / Installation Instructions
Product Manual / Installation Instructions
Rear View Camera Systems
Rear View Camera Systems
Model # RVS- 2CAM
Model # RVS- 2CAM
Rear View Safety, Inc. <> 2015
Rear View Safety, Inc.
i W�UI
"
2015
r sAFETv
r
SAFETY
REVERSE WITH CONFIDENCE
RE\IEIHJ WIT1i
CONFIDENCE•
,.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rear view safety RVS-2CAM
Summary of Contents for Rear view safety RVS-2CAM
- Page 1 Product Manual / Installation Instructions i W�UI Rear View Camera Systems Rear View Camera Systems Model # RVS- 2CAM Model # RVS- 2CAM r sAFETv SAFETY Rear View Safety, Inc. <> 2015 Rear View Safety, Inc. " 2015 REVERSE WITH CONFIDENCE RE\IEIHJ WIT1i CONFIDENCE•...

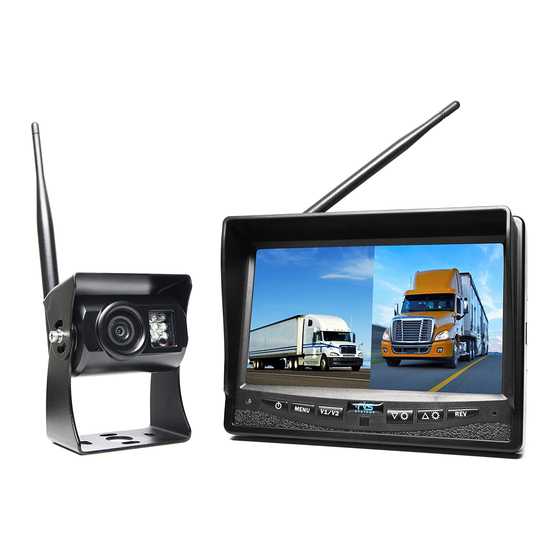

- Page 2 What’s in the Box? • 1 Split Screen Digital Wireless Monitor with Cigarette Lighter Adaptor • 1 CCD Wireless Backup Camera with Power Cable • 1 Extendable Suction Cup Mount for Monitor...
-
Page 3: Table Of Contents
Table of Contents Introduction....................4 Safety Information ...................5-7 Before Beginning Installation..............8 Installation Guide..................9 Pairing ......................10 System Operation..................11 Operational Diagram..................12 Installation Diagram ..................13 Monitor Dimensions...................14 Monitor Specifications................15 Camera Dimensions .................. Camera Specifications................17 Splitting......................18 Positioning ....................19 Troubleshooting...................20 Warranty......................21 Disclaimer .....................22... -
Page 4: Introduction
TV viewer or screen located for- ward of the back of the driver’s seat or in any location that is vis- ible, directly or indirectly, to the driver while operating the vehicle. REAR VIEW SAFETY... -
Page 5: Safety Information
Safety Information Please read the entire manual and follow the instructions and warnings carefully. Failure to do so can cause serious damage and/or injury, including loss of life. Be sure to obey all applica- ble local traffic and motor vehicle regulations as it pertains to this product. - Page 6 Dropping the unit may cause is detected, disconnect the possible mechanical failure. system immediately. • Where the power cable may touch a metal case, cover the cable with a friction tape. A short circuit or disconnected wire may cause a fire. REAR VIEW SAFETY...
- Page 7 Safety Information If you have questions about this product, contact: Customer Service: Rear View Safety 1797 Atlantic Avenue Brooklyn, NY 11233 Tel: 1.800.764.1028 IN NO EVENT SHALL SELLER OR MANUFACTURER BE LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
-
Page 8: Before Beginning Installation
We recommend doing a benchmark test before installation to insure that all components are working properly. SYSTEM COMES PAIRED. • But if there is no image on monitor, your system is NOT paired and needs to be paired. (see page 10) REAR VIEW SAFETY... -
Page 9: Installation Guide
Installation Guide Camera Connection: • Locate the clearance lights wiring on your vehicle. You may need to remove the interior panel in order to locate. Connect the power cables for camera: Red wire to light's positive; Black wire to chassis ground. Monitor Connection: •... -
Page 10: Pairing
3. Press the pair button on the back of the camera within the 50 seconds and the camera image will appear on the monitor. The system is paired. NOTE: Please make sure the camera is receiving power when you pair. REAR VIEW SAFETY... -
Page 11: System Operation
System Operation System Operation: To turn on the monitor, press “POWER ON” button. To get to Main Menu, press “MENU” Use the arrow keys to navigate the menu and use the "MENU" button to confirm your selection. To go back, press the "REV" button. To adjust the volume, use the up and down arrows while viewing the camera Menu Options:... -
Page 12: Operational Diagram
Operational Diagram CAMERA SELECTION DOWN ARROW MENU/ SELECTION ARROW BUTTON POWER ON / OFF BACK REAR VIEW SAFETY... -
Page 13: Monitor Specifications
Monitor Specification TFT LCD Digital Monitor Screen Size 7” Dot Resolution x 3 (RGB) 480 Display Format 16:9 / 500:1 Display Brightness 400cd/m Viewing Angle U:50° / D:60° / R:70° Video Input 2 channel Video Source 1Vp-p, 75 Power Supply DC 12V(+/- 10%) Power Consumption Operating Temperature... -
Page 14: Camera Dimensions
Camera Dimensions REAR VIEW SAFETY... -
Page 15: Camera Specifications
Camera Specifications Camera 1/4” Sharp® Color CCD Picture Elements 250,000 pixels Gamma Correction r=0.45 to 1.0 Image Sensor 540 TV lines Lens 2.1mm View Angle 130° Sync System Internal Synchronization Infrared distance 50 Feet (9 Infrared) Usable Illumination 0 Lux (IR On) DC Power Source 12V/3A (+/- 10%) S/N Ratio... -
Page 16: Splitting
Splitting back cover: Hold monitor with 2 hands and detach with fingers, as indicated by arrows. (only for embedded monitor) Splitting sun shield: Take the monitor with the left hand and detach with right hand as indicated by the white arrow. (see below) REAR VIEW SAFETY... -
Page 17: Positioning
Positioning Reverse With Confidence ™... -
Page 18: Troubleshooting
The antenna booster is an • The cable is attached just like extendable antenna that can be the standard antenna by used in case of signal issues. screwing on the connection- The antenna itself is attached magnetically. REAR VIEW SAFETY... -
Page 19: Warranty
Rear View Safety, Inc. system after partial failure or use with im- proper accessories. -
Page 20: Disclaimer
In no event shall Rear View Safety and/or its affiliates have any liability for any losses (whether direct or indi-... - Page 21 If you have any questions about this product, contact: Rear View Safety, Inc. 1797 Atlantic Avenue Brooklyn, NY 11233 800.764.1028 BETTER CAMERAS. BETTER SERVICE. IT’S OUR GUARANTEE.
