Page 1: Instruction Manual

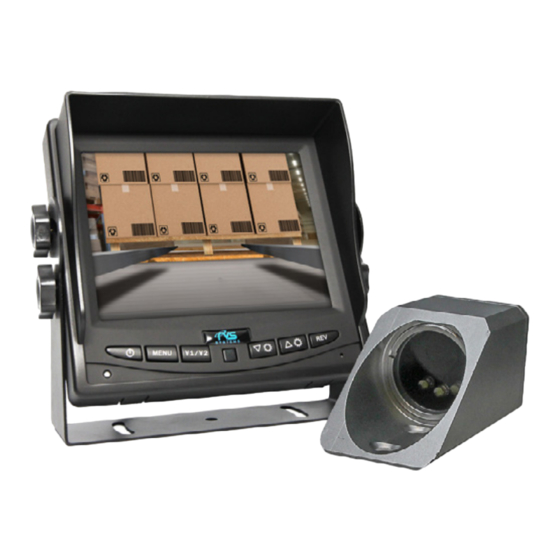

Instruction Manual Safety Camera System for Forklifts with 5" Display RVS-577FW Reverse With Confidence ™... -
Page 2: Table Of Contents
Disclaimer ........19 Rear View Safety... -
Page 3: Introduction
NOTE! Please read all of the installation instructions carefully before installing the product. Improper installation will void manufacturer’s warranty. Congratulations on purchasing a Safety Camera System! With this manual you will be able to properly install and operate the unit. This system is intended to be installed as a supplement aid to your standard rear view mirror that already exists in your vehicle. -
Page 4: Safety Information
If you back up while looking only at the monitor, you may cause damage or injury. Always back up slowly. Rear View Safety... - Page 5 INSTALLATION: • Electric shock or product or disconnected wire may cause a malfunction may occur if this fire. product is installed incorrectly. • While installing the Rear View System be careful with the wire • Use this product within positioning in order to avoid wire the voltage range specified.
- Page 6 If you have questions about this product, contact: Rear View Safety 1797 Atlantic Avenue Brooklyn, NY 11233 Tel: 1.800.764.1028 IN NO EVENT SHALL SELLER OR MANUFACTURER BE LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
-
Page 7: Before Beginning Installation
Before drilling please check that no cable or wiring is on the other side of the wall. Please clamp all wires securely to reduce the possibility of them being damaged while vehicle is in use. Keep all cables away from hot/moving parts and electrical noisy components. We recommend doing a benchmark test before installation to insure that all components are working properly. - Page 8 Warning! 1. This monitor is high voltage. Only professionals should open the monitor's case. 2. Do not watch the video while driving unless you are monitoring the rear view camera display. Rear View Safety...
-
Page 9: In The Box
In The Box 1 x Color Waterproof Forklift Camera 1 x 5.6" TFT LCD Digital Color Monitor with Universal Mount 1 x 33' Camera Cable 1 x U-Bracket 1 x Flushmount 1 x Remote Control 1 x Power Harness 1 x 4 Pin to 5 Pin Adapter 1 x Screw Kit for Installation Reverse With Confidence ™... - Page 10 • The other channels can similarly be triggered (i.e. side cameras can be triggered by the turn signals etc.) • To automatically have camera and monitor turn ON when vehicle activates, simply twist BLUE positive trigger 12V+ to Red Power line 12V+ and wire to ignition power. Rear View Safety...
-
Page 11: Wiring
Wiring 1. DC 12V-24V 2. Ground 3. Port #3 (Blue) 4. Port #2 (Brown) 5. Port #1 (White) Reverse With Confidence ™... -
Page 12: Monitor Introduction
• To reset your system, press “MENU” 11 times and use arrows • To view images on other cameras, press “CAMERA SELECTION” 1 time for camera one, 2 times for camera two and 3 times for camera three. Rear View Safety... -
Page 13: Splicing
Splicing 1. Red - Power (+) 2. Yellow - Video 3. Green - Mirror / Normal Imaging 4. White - Audio 5. Black - Ground (-) Remote Power Toggle Video Toggle Selection Toggle Selection Menu Toggle Mirror/Normal Image Reverse With Confidence ™... -
Page 14: Monitor Dimensions
• 5" TFT LCD Digital Color Display • Built-in speakers for audio • Adjustable distance grid lines for backing up reference • 3 channel video inputs - Supports 3 cameras • Innovative back-lit buttons illuminate in the dark Rear View Safety... -
Page 15: Monitor Specifications
Monitor Specifications Type TFT LCD Screen Size 5.6" Dot Resolution 800 X 3 (RGB) X 480 Display Format/Contrast 16:9 / 500:1 Display Brightness 400cd/m Viewing Angle U:50° D:60° L/R:70° Video Input 3 channel Video Source 1Vp-p, 75Ω Power Supply DC 12V-24V (+/- 10%) Power Consumption Operating Temperature -30°C ~ +80°... -
Page 16: Camera Specifications
Spread Spectrum FHSS Delay 120ms RF Bit Rate 4Mbps Operating Temperature -20°C ~ 70°C, RH 95% MAX Storage Temperature -30°C ~ 80°C, RH 95% MAX Power Supply DC 10 ~ 32V Waterproof Rating IP69K Viewing Angle 45° Rear View Safety... -
Page 17: Troubleshooting
Troubleshooting Monitor Displays Blue Screen & Displays No Signal • Do a hard reset, unplug all cables and power cables leave out for 1 minute and then reconnect them • Check to ensure that the connection to the camera is tight •... -
Page 18: Warranty
OTHERS OR THE UNAUTHORIZED USE OF NONCONFORMING PARTS; THE DAMAGE IS DUE TO NORMAL WEAR AND TEAR, THIS DAMAGE IS DUE TO ABUSE, IMPROPER MAINTENANCE, NEGLECT OR ACCIDENT; OR THE DAMAGE IS DUE TO USE OF THE REAR VIEW SAFETY, INC. SYSTEM AFTER PARTIAL FAILURE OR USE WITH IMPROPER ACCESSORIES. -
Page 19: Disclaimer
FOR ANY INJURY, LOSS OR DAMAGE, INCIDENTAL OR CONSEQUENTIAL, ARISING OUT OF THE USE OR INTENDED USE OF THE PRODUCT. IN NO EVENT SHALL REAR VIEW SAFETY AND/OR ITS AFFILIATES HAVE ANY LIABILITY FOR ANY LOSSES (WHETHER DIRECT OR INDIRECT, IN... - Page 20 If you have any questions about this product, contact: Rear View Safety, Inc. 1797 Atlantic Avenue Brooklyn, NY 11233 800.764.1028 Better Cameras. Better Service. IT’S OUR GUARANTEE. Rear View Safety...
