Summary of Contents for Rear view safety RVS-CW-CAM

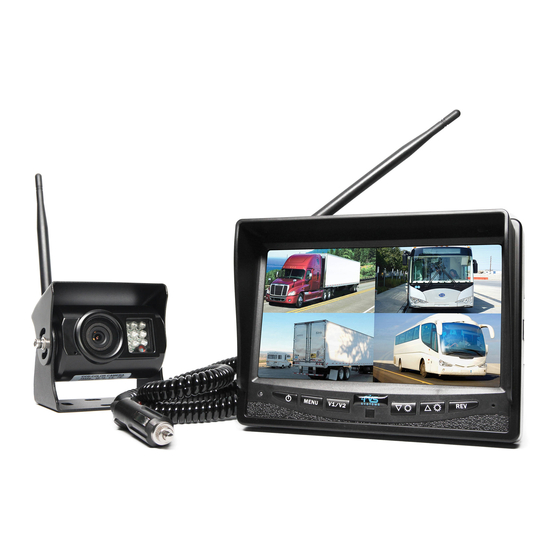

- Page 2 What’s in the Box? • 1 Quad View Digital Wireless Monitor with Cigarette Lighter Adaptor • 1 CCD Wireless Backup Camera with Power Cable • 1 Extendable Suction Cup Mount for Monitor...
-
Page 3: Table Of Contents
Table of Contents Introduction....................4 Safety Information ...................5-7 Before Beginning Installation..............8 Installation Guide..................9 Pairing ......................10 System Operation..................11 Operational Diagram..................12 Installation Diagram ..................13 Monitor Dimensions...................14 Monitor Specifications................15 Camera Dimensions .................. Camera Specifications................17 Splitting......................18 Positioning ....................19 Troubleshooting...................20 Warranty......................21 Disclaimer .....................22... -
Page 4: Introduction
TV viewer or screen located for- ward of the back of the driver’s seat or in any location that is vis- ible, directly or indirectly, to the driver while operating the vehicle. REAR VIEW SAFETY... -
Page 5: Safety Information
Safety Information Please read the entire manual and follow the instructions and warnings carefully. Failure to do so can cause serious damage and/or injury, including loss of life. Be sure to obey all applica- ble local traffic and motor vehicle regulations as it pertains to this product. - Page 6 Dropping the unit may cause is detected, disconnect the possible mechanical failure. system immediately. • Where the power cable may touch a metal case, cover the cable with a friction tape. A short circuit or disconnected wire may cause a fire. REAR VIEW SAFETY...
- Page 7 Safety Information If you have questions about this product, contact: Customer Service: Rear View Safety 1797 Atlantic Avenue Brooklyn, NY 11233 Tel: 1.800.764.1028 IN NO EVENT SHALL SELLER OR MANUFACTURER BE LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
-
Page 8: Before Beginning Installation
Install split grommets where applicable Step 3: Once all cables and wiring have been properly routed and the system has paired, perform a system function test by tem- porarily connecting the system. If the problem persists see trou- bleshooting (page 20). REAR VIEW SAFETY... -
Page 9: Installation Guide
Installation Guide We recommend doing a benchmark test before installation to insure that all components are working properly. SYSTEM COMES PAIRED. • But if there is no image on monitor, your system is NOT paired and needs to be paired. (see page 10) Camera Connection: •... -
Page 10: Pairing
BEFORE the camera is installed on your vehhilce.You will see “Pair OK” on the screen when it suc- cessfully pairs. If you see “Time out”, please repeat all steps. REAR VIEW SAFETY... -
Page 11: System Operation
System Operation • To turn on the monitor, press “POWER ON” button. • To get to Main Menu, press “MENU” 1 time • To get to Camera Settings, press “MENU” 2 times, use arrows to get to System Settings. Camera Settings: To adjust Pairing, Activation, Brightness or Volume •... -
Page 12: Operational Diagram
Operational Diagram CAMERA SELECTION DOWN ARROW MENU/ SELECTION ARROW BUTTON POWER ROTATION ON / OFF IMAGER (Exit when in MENU mode) PAIR BUTTON QUAD MONITOR CAMERA INLINE FUSE BLACK POSITIVE GROUND REAR VIEW SAFETY... -
Page 13: Installation Diagram
Installation Diagram On Select Models Figure 1.1 Figure 1.2 Figure 1.4 Figure 1.3 Connection of Connection of U Bracket Flushmount Bracket Reverse With Confidence... -
Page 14: Monitor Dimensions
Monitor Dimensions 7” 5 25” Rotation with Imager Menu/ (Exit in Camera Selection Down Power Menu shade Selection Arrow On/Off Button Arrow Mode) REAR VIEW SAFETY... -
Page 15: Monitor Specifications
Monitor Speciifications TFT LCD Digital Monitor Screen Size 7” Dot Resolution x 3 (RGB) 480 Display Format 16:9 / 500:1 Display Brightness 400cd/m Viewing Angle U:50° / D:60° / R:70° Video Input 4 channel Video Source 1Vp-p, 75 Power Supply DC 12V(+/- 10%) Power Consumption Operating Temperature... -
Page 16: Camera Dimensions
Camera Dimensions 3 25” 3” REAR VIEW SAFETY... -
Page 17: Camera Specifications
Camera Specifications Camera 1/4” Sharp® Color CCD Picture Elements 250,000 pixels Gamma Correction r=0.45 to 1.0 Image Sensor 480TV lines Lens 2.1mm View Angle 130° Sync System Internal Synchronization Infrared distance 50 Feet (12 Infrared) Usable Illumination 0 Lux (IR On) Power Source DC 12V (+/- 10%) S/N Ratio... -
Page 18: Splitting
Splitting back cover: Hold monitor with 2 hands and detach with fingers, as indicated by arrows. (only for embedded monitor) Splitting sun shield: Take the monitor with the left hand and detach with right hand as indicated by the white arrow. (see below) REAR VIEW SAFETY... -
Page 19: Positioning
Positioning Rear Camera Positioning Reverse With Confidence... -
Page 20: Troubleshooting
1 minute and then re-connect them. No Image On Screen • Verify camera is on correct • Verify camera is connected camera input to power/ground Audio on Camera Verify chosen camera has audio Verify volume setting • • REAR VIEW SAFETY... -
Page 21: Warranty
Rear View Safety, Inc. system after partial failure or use with im- proper accessories. -
Page 22: Disclaimer
In no event shall Rear View Safety and/or its affiliates have any liability for any losses (whether direct or indi-... - Page 23 If you have any questions about this product, contact: Rear View Safety, Inc. 1797 Atlantic Avenue Brooklyn, NY 11233 800.764.1028 BETTER CAMERAS. BETTER SERVICE. IT’S OUR GUARANTEE.
